Honeywell Home PROLTE Series Installation And Setup Manual

Installation and Setup Guide

General Information

The Communication Modules allow the control panel to communicate with the Central Station via the cellular radio network. The
PROLTE Series includes the following models:
PROLTE-A (US/Canada, AT&T Network)
PROLTE-V (US, Verizon network)
PROTLTE-CN (Canada, Bell network)
The PROLTE Series wireless communications module is intended to provide compatible PRO Series control panels with a cellular
connection with the central monitoring station. The module connects directly to the control panel and is powered via the control panel's
connection.
Compatible Control Panels:
PROA7PLUS Series – Quick Installation Guide P/N 800-25079 or higher
PROH8PLUS Series - Quick Installation Guide P/N 800-25093 or higher.

Installing the Module in the PROA7PLUS Series

Ensure that all electrical power is removed from the control before installing the module. Unplug the

power supply and disconnect the backup battery.
1. Affix the provided FCC/IC label (P/N 800-25167 for
the PROLTE-A, 800-25168 for the PROLTE-V OR
800-25170 for the PROLTE-CN) on the control's case
back (refer to Figure 1).
2. If the Control Panel is not powered up proceed to
step 7. If the Control Panel is powered up, disarm the
system and wait 30-60 seconds:
3. Unplug the power supply.
4. Remove the screw securing the control to the wall or
desk mount.
5. Remove the control from the wall or desk mount.
6. Disconnect the battery.
7. Remove the left side from the control.
8. Insert the PROLTE Series module into the slot on the
left side of the control as shown in Figure 2 and
ensure the receptacle is securely seated on the
control's edge connector.
9. Secure with the screw.
10. Install the left side cover.
11. Connect the battery.
12. Install the control on the wall or desk mount.
13. Plug the power supply into a 24-hour, 110VAC
unswitched outlet.
.

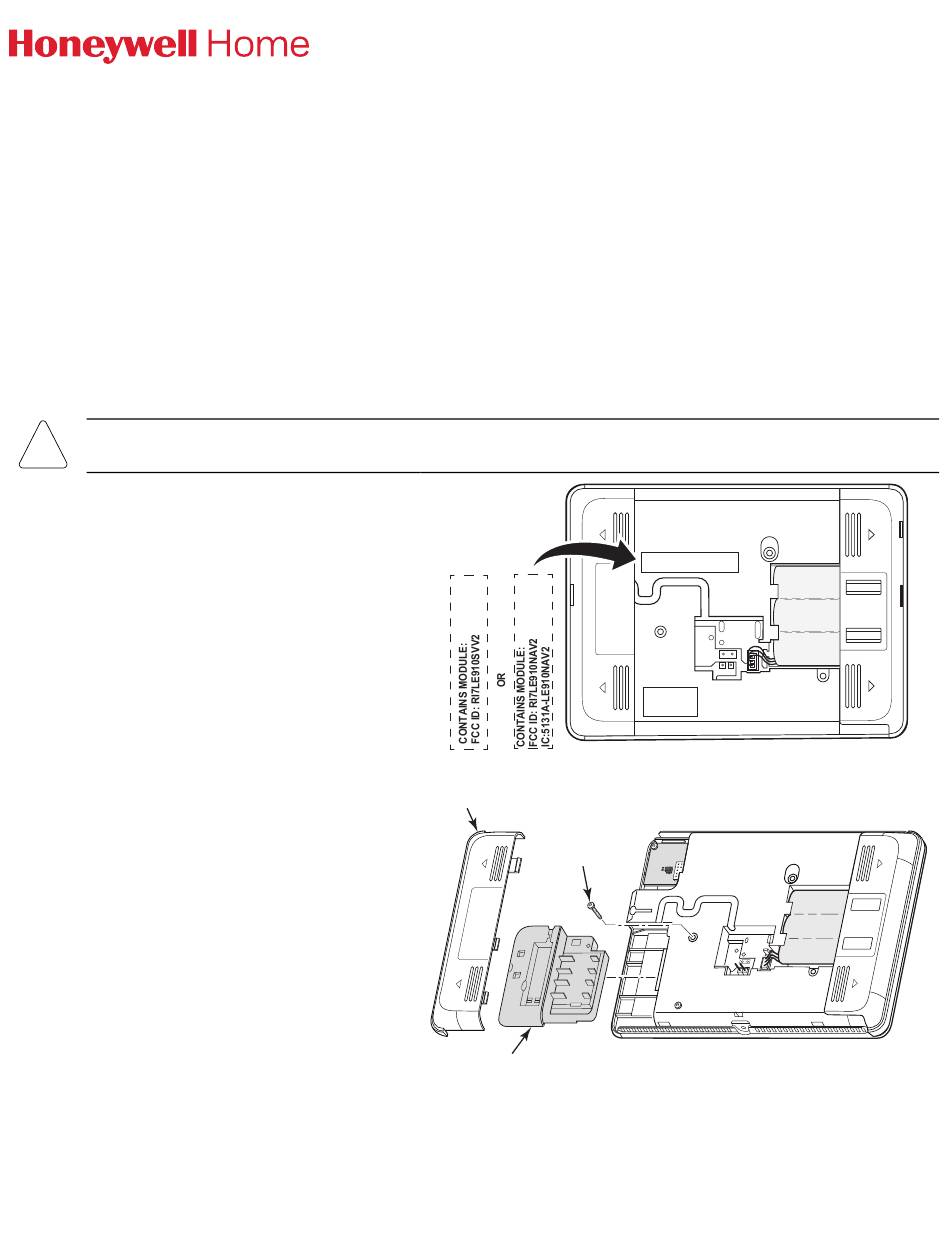

Figure 1. FCC/IC Label Location
COVER
MACHINE
SCREW
EXT INT
PROLTE-SERIES
MODULE
Figure 2. Installing the PROLTE Module
PROLTE Series Wireless
Communication Modules
CONTAINS MODULE:
FCC ID: RI7LE910NAV2
IC:5131A-LE910NAV2
ADEMCO INC. PROA7PLUS SERIES
FCC / ISED STATEMENT
This device complies with Part 15 of the FCC Rules,
and ISED's license-exempt RSSs. Operation is subject
to the following two conditions: (1) This Device may
not cause harmful interference. (2) This device must
accept any interference received, including
interference that may cause undesired operation.
FCC ID: CFS8DL-GRIPAIO7
IC: 573F-GRIPAIO7 HVIN: GRIPAIO7
QS-061-V0
QS-057-V0
