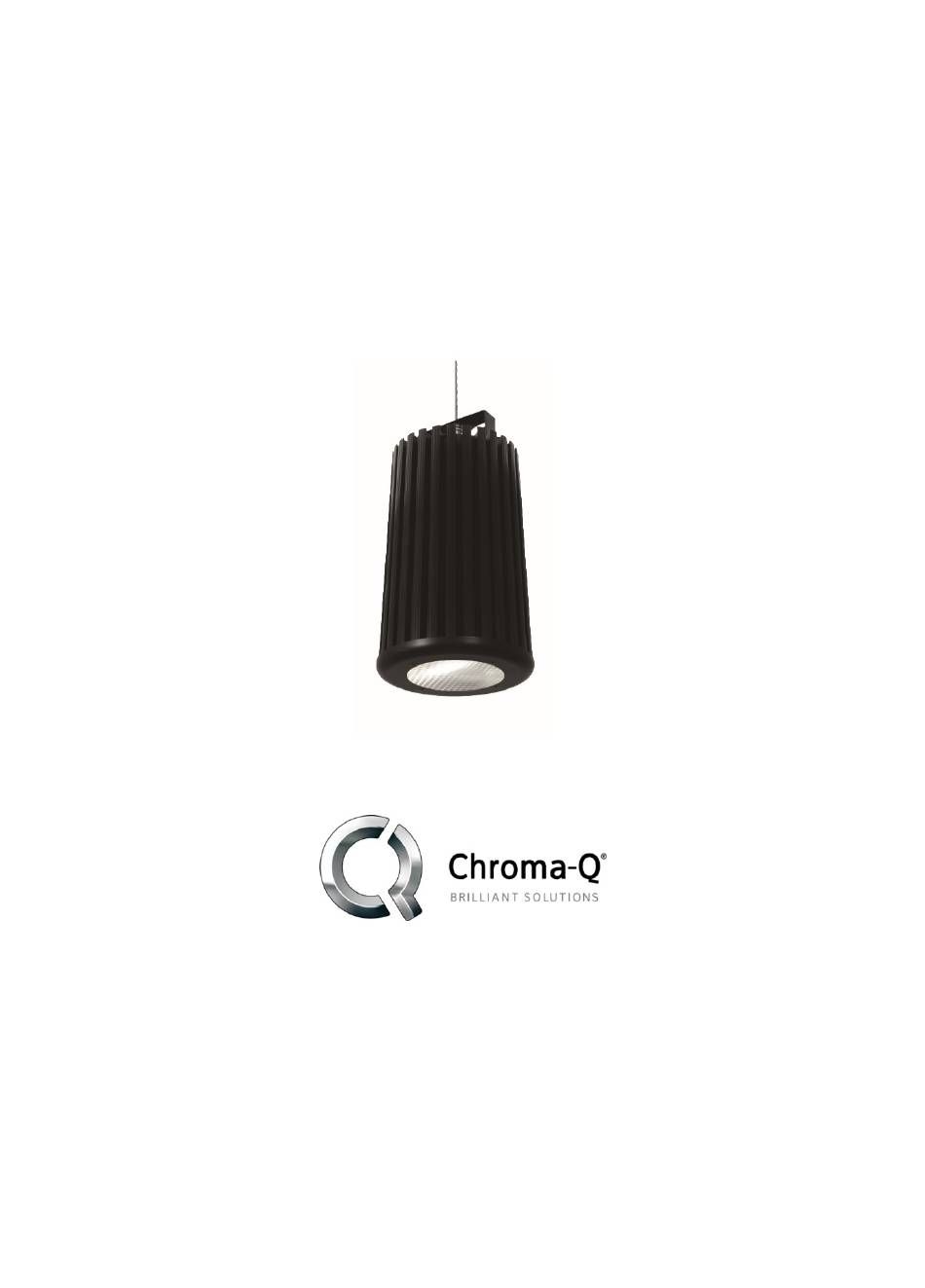

- Page 1 ® Chroma-Q Inspire MD User Manual Part Number: CHINHLMD, CHINHLMDW (Model: 632-3020, 632-3030) North American version 120V 60Hz only Software Version (Engine) F Manual: 632-0719, V1.1 Jul. 2019...
- Page 2 (c) by operation outside the specifications contained in the user documentation; (d) by the use of spare parts not manufactured or sold by Chroma-Q or by the connection or integration of other equipment or software not approved by Chroma-Q unless the Customer provides acceptable proof to Chroma-Q that the defect or damage was not caused by the above;...
- Page 3 Chroma-Q products are safe, effective, and fully satisfactory for the intended end use. Suggestions of use shall not be taken as inducements to infringe any patent.
- Page 4 If your local dealer is unable to help then please contact support@chroma-q.com. If you are having trouble finding what you are looking for on our website, then contact our Chroma- Q marketing department by sending an email to marketing@chroma-q.com. www.chroma-q.com Inspire Mains Dimmer User Manual V1.1 July 2019...
- Page 5 PROTECTION FROM ELECTRIC SHOCK • Use only the cables specified in this manual and on the Chroma-q website at www.chroma-q.com to interconnect devices in the installation. If the specified cables are not long enough for an intended cable run, consult Chroma-Q for assistance in finding or creating a safe alternative solution.
-
Page 6: Table Of Contents
Control ..........................10 2.6. Thermal Performance ......................10 2.7. Overvoltage protection ......................10 Troubleshooting ........................11 Specification ..........................12 4.1. Technical Specifications...................... 12 4.2. Drawings – Dimensions ...................... 13 Maintenance ..........................13 www.chroma-q.com Inspire Mains Dimmer User Manual V1.1 July 2019... -
Page 7: Product Overview
1. Product overview The Chroma-Q™ Inspire™ MD LED house light is a powerful multi-purpose creative lighting tool that utilises some of the innovative core technologies found in other popular Chroma-Q fixtures. Inspire™ MD can be used directly on existing dimming system and does not require additional control system. -
Page 8: Power Up Inspire™ Md
10. With the cable clamp/ gland unsecured, re-attach the cover plate with the screws provided in the package using a #1 Phillips screwdriver. 11. Tighten the cable clamp/ gland. Figure 1: Bottom View of the fixture www.chroma-q.com Inspire Mains Dimmer User Manual V1.1 July 2019... - Page 9 Suggested Screw Torque: 7.0 in.-lb/ 0.7909 Nm. Pull back on the wire to be sure it is secure and check there are no wire strands outside the terminal block. Screwdriver: Ø 1.8mm slotted screwdriver. Figure 4 www.chroma-q.com Inspire Mains Dimmer User Manual V1.1 July 2019...
-
Page 10: Mounting
CHINYK: Yoke Mount Kit for Inspire (Black) CHINYKW: Yoke Mount Kit for Inspire (White) For further information, consult your local representative or please visit the Chroma-Q website at www.chroma-q.com support/ product download section for installation instructions and product support material download. -
Page 11: Optics
During installation, provide a minimum of 5-inch/ 127mm space around the unit from building insulation materials. 2.7. Overvoltage protection The fixture has in-built overvoltage protection (≥150VAC) and has a 2A fuse installed. www.chroma-q.com Inspire Mains Dimmer User Manual V1.1 July 2019... -
Page 12: Troubleshooting
• • Internal temperature of the Check area ventilation. fixture is over the limit. No LED output • • Overvoltage protection fuse Replace the fuse with blown same rating fuse (2A). www.chroma-q.com Inspire Mains Dimmer User Manual V1.1 July 2019... -
Page 13: Specification
Medium lens (holographic film) : ~ 42° Wide lens (holographic film) : ~ 65° Beam Distribution Symmetrical direct illumination 3000K Lamp Life L70 at 50,000 hours **For exact measurements please refer to the line drawings below www.chroma-q.com Inspire Mains Dimmer User Manual V1.1 July 2019... -
Page 14: Drawings - Dimensions
Do not spray liquids on the front or rear panel. If the front enclosure requires cleaning, wipe with a mild solvent free detergent on a damp cloth. www.chroma-q.com Inspire Mains Dimmer User Manual V1.1 July 2019...
