Installation Manual >> Upper Crash Bars >> KTM 1090/1190/1290
See attached pages for product kit,
recommended tools
and recommended torque specs.
Installation Manual >> Upper Crash Bars >> KTM 1090/1190/1290
1. Remove the two factory Allen bolts that connect
the right and left side of the lower crash bars.
outback
motortek
2. Remove the factory steering dampers using either
a 10mm socket or T40 torx.
Tip: begin with the bolt that secures the ball joint.
1.
2.
Advertisement
Table of Contents

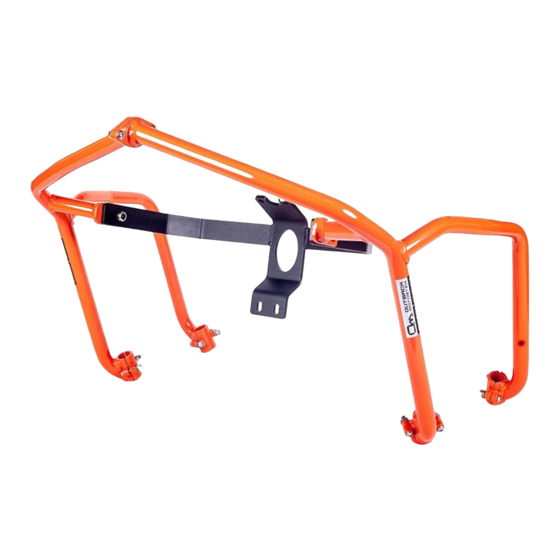

Summary of Contents for Outback Motortek KTM Upper Crash Bar
- Page 1 outback motortek Installation Manual >> Upper Crash Bars >> KTM 1090/1190/1290 See attached pages for product kit, recommended tools and recommended torque specs. Installation Manual >> Upper Crash Bars >> KTM 1090/1190/1290 1. Remove the two factory Allen bolts that connect 2.
- Page 2 3. Remove both factory bolts that secure the 4. Mount the supplied bracket. Line up the bottom mounting steering damper onto the frame. Recommended holes with the factory crash bars’ holes and insert the supplied tool: 10mm wrench M6x30mm bolts.
- Page 3 Installation Manual >> Upper Crash Bars >> KTM 1090/1190/1290 7. Hand-thread the right side factory bolts back 8. Mount the right side upper crash bar. into the frame mounting points. Do not tighten it, yet. Don’t forget the secure the ball joint on the far end of thesteering damper! Note: Do apply locking fluid (blue)! Installation Manual >>...
- Page 4 11. Repeat the same for the rear part of the upper 12. Mount the left side upper crash bar. crash bars. Leave the bolts loose. outback motortek 13. Repeat step #9 on the left side of your KTM.
- Page 5 Outback Motortek assumes no liability for any accident, injury, death, loss, or other claim related to or resulting from the use of its products. In no event shall Outback Motortek be liable for incidental or consequential damages relating to or resulting from the use of its product or any of its parts.
- Page 6 Installation Manual >> Upper Crash Bars >> KTM 1090/1190/1290 Installation Manual >> Upper Crash Bars >> KTM 1090/1190/1290...
