Versalift 24 Manual

Attic storage lifting system
Hide thumbs Also See for 24:

Advertisement

Quick Links

Download this manual
There are various measurements that people ask for when looking at our lifts. All of these measurements and more are
found in our installation documents. Please print the correct Installation Manual to your unit and read in detail BEFORE
installing a Versalift Attic Lift. Our clients RARELY have issues when they follow the Step by Step instructions in the
manuals provided.
NOTE: BOTH INSTALL DOCUMENTS ARE BELOW, BE FOREWARNED ENTIRE DOCUMENT IS OVER 50 PAGES TO PRINT.
Here are the most common asked questions. If you have any questions, just call us direct at (405) 516 2412 or email:
support@cynergymail.com

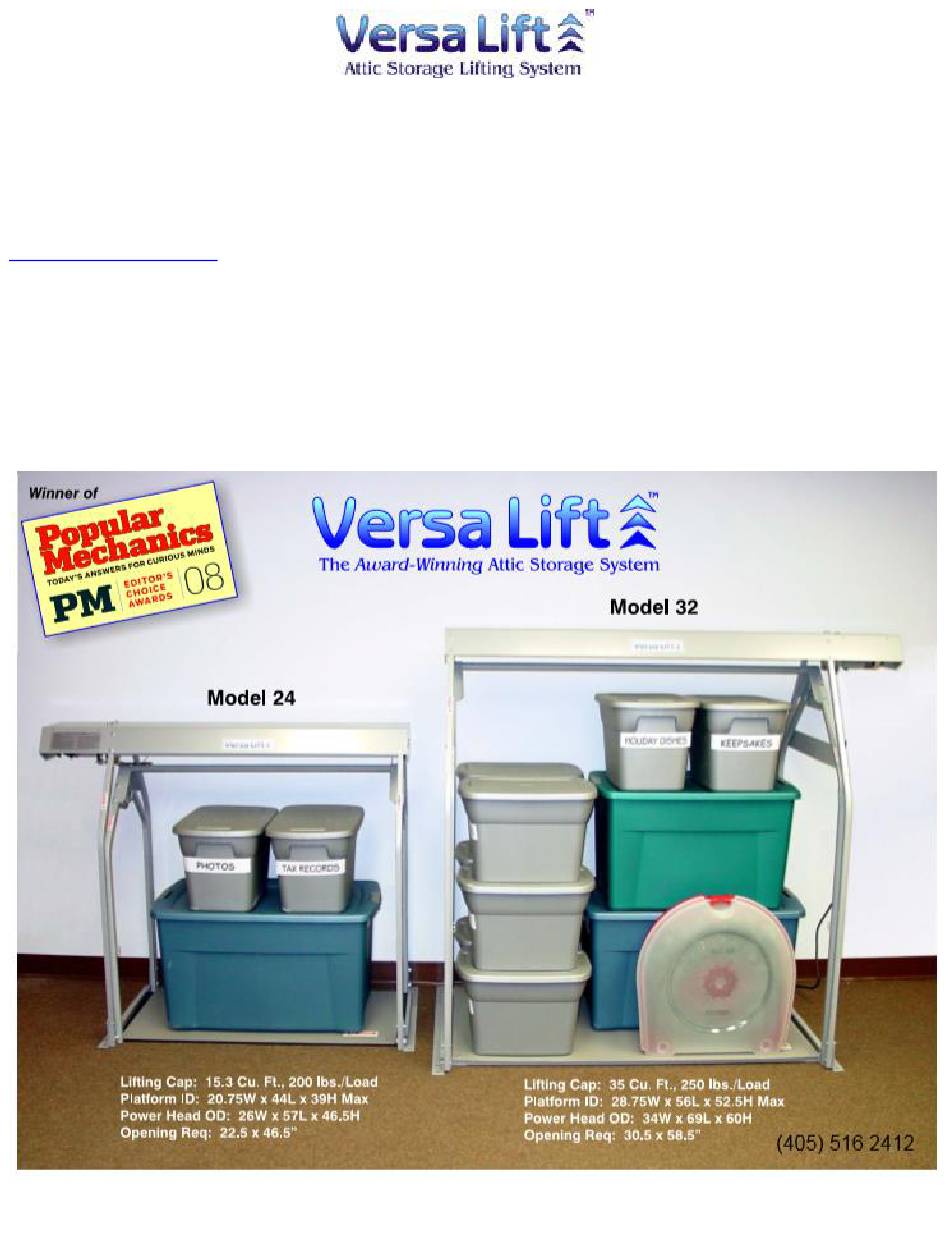

The Versalift comes in two sizes, the Model 24 and Model 32.
The Versalift can go up to 20' Floor to Floor.
Measure from the Attic Floor Decking upstairs down to the Garage Floor below. When ordering specify as follows:
Standard Height = 8' – 11' Floor to Floor. "H" as in Model 24H or 32H means 11' – 14' Floor to floor. Model 24WHX =
Wireless Xtra High or 14' – 17'. Model 24WHXX = 17' – 20' Wireless Xtra Xtra High. The "M" Series means Mounted
Wall Switch, and comes with two wall switches, one upstairs and one down.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 24 and is the answer not in the manual?

Questions and answers

Related Manuals for Versalift 24

Summary of Contents for Versalift 24

  • Page 1 Please print the correct Installation Manual to your unit and read in detail BEFORE installing a Versalift Attic Lift. Our clients RARELY have issues when they follow the Step by Step instructions in the manuals provided.
  • Page 2 HERE ARE DIMENSIONS OF ACTUAL MODEL 24 UNIT DIMENSIONS OF ACTUAL MODEL 32 NOTE: THE MODEL 24 is also available in a 36” High Unit at no additional cost. EITHER UNIT CAN BE CUSTOM CUT DOWN IN HEIGHT for additional cost.
  • Page 4 WE RECOMMEND YOU PUT THE LIFT ON THE SAME ELECTRICAL CIRCUIT AS THE ATTIC LIGHTS, IT ONLY DRAWS 5 AMPS, AND THAT WAY WHEN YOU TURN OFF ATTIC LIGHTS, YOU TURN OFF POWER TO THE LIFT….
  • Page 5 There are THREE ways to operate or switch the Versalift 1. 15’ CORDED UNIT 2. WIRELESS UNIT 3. IN WALL SWITCH...
  • Page 6 Model 24 will go right in between the two joists. And the truss leg kit available from us swings the legs around so the lift will sit “on” the joists vs. outside the joists. If your Versalift legs are in the way of the trusses, you will need the truss leg kit.
  • Page 7 The size of the ceiling Cover for the MODEL 24 is 24” x 48” and yes, you can paint it to match or apply texture. The size of the ceiling cover for the MODEL 32 is 32” x 60”...
  • Page 8 This Messinine install shows the ceiling Cover Underneath. (above) PHOTO SHOWING INSTALLER PULLING DOWN ON SPRING LOADED CEILING COVER. As the lift goes up through the opening, the cover catches on the ceiling allowing the springs to hold it tight. Lift shuts off automatically up and down. Q.
  • Page 9 They are .093 Aircraft steel Cable 7 x 19 (which means 7 bundles of 19 woven filaments for 132 strands. Safe working rating is 350 lbs. We rate the Model 24 lift at 200 lbs. and the Model 32 at 250 lbs. for safety purposes.
  • Page 10 I do? First, you should call us at 405 516 2412 so we can confirm the issue. The Versalift is designed to automatically shut off when it goes up into the attic and gets level with the floor of the attic. At that point it pushes up on a lever that shuts it off.
  • Page 11 IF YOU ARE REALLY INTERESTED IN MORE DETAILED READING, WE HAVE ATTACHED BOTH MANUALS AND TECHNICAL SPECIFICATIONS BELOW. BE FORWARNED, THE ENTIRE DOCUMENT IS MORE THAN 50 PAGES TO PRINT…. NOTE: The following manuals apply to Versalift units manufactured prior to April 2019. Some of the electronics / switching was changed and improved...
  • Page 12 Revised 06-12-2008 Applicable Product Models: 24, 24H, 24HX, 24W, 24WH, 24WHX Roughing-In Notes: Attic Storage Lifting System Tolerance for opening dimensions is +1/4” (6mm), -0” (-0mm). The opening must be square and the side walls perpendicular. Rough-In Guide for Maximum joist height is 18” tall. See specification sheet for maximum floor-to-floor height of specific models.
  • Page 13 Patent Pending Attic Storage Lifting System Attic Storage Lifting System INSTALLATION GUIDE Standard Models 24, 24H, & 24HX Wireless Models 24W, 24WH, & 24WHX Attic Opening Preparation Lift Assembly Installation (405) 516 2412 © Copyright 2006 BPG All rights reserved. Revised Jan. 2009...
  • Page 14 READ THIS BEFORE YOU GET STARTED IMPORTANT NOTICE: SAFETY GUIDELINES - DEFINITIONS: DO NOT OPERATE THE MOTOR UNTIL YOU ARE It is important to read and understand this manual. The INSTRUCTED TO IN STEP 9 OF THIS GUIDE! The information it contains relates to protecting your safety Versa Lift Housing and Motor are pre-assembled at and preventing problems.
  • Page 15 VERSA LIFT SPECIFICATIONS: plywood must be added on top of the ceiling joists to make a floor that you can walk on and store items on. General Specifications (All Models 24) Tools/Materials Required: Skill Saw, Hammer and Nails Dimensions 26x57x47H or Screws and Power Driver, Square, Tape Measure, Vertical Attic Space Req’d.
  • Page 16 46" 30° grounded outlet (receptacle) like those shown in Fig. 1a and rated for at least twice the load (10 amps minimum). 46.5" 24.5" MIN. 31.5" GROUNDED POWER OUTLET LIFT OPENING CURRENT REQUIRES 46.5”...
  • Page 17 Versa Lift ATTIC OPENING PREPARATION LIFT OPENING REQUIREMENTS (Cont) INSTALL FLASHING IN ALL OPENINGS: Install the 2 x 2” L-flashing the corners of all openings, even in OPENINGS IN SOLID WOOD JOISTS: I-Joist openings that are paneled with 1/4” plywood. When ceiling joists are solid wood, the final opening size Cut the flashing to the finished opening height (including must be 22½”...
  • Page 18 An aligned opening with joists 24” OC can be framed without the need to cut a ceiling joist (Fig. 5). Joist Hanger for An aligned opening with joists 16”...
  • Page 19 Versa Lift ATTIC OPENING PREPARATION ONE POSSIBLE FRAMING PROCEDURE for solid to prevent the lift platform from hanging up and wood joists 16” OC: After choosing a location, if your causing the lift to malfunction (see page 5 for details). attic is already decked, you will need to remove enough decking to expose the joists in the area of the opening.
  • Page 20 Versa Lift ATTIC OPENING PREPARATION ONE POSSIBLE FRAMING TECHNIQUE for I-JOISTS This technique requires that you have additional I-Joist material of the same size as that used in you ceiling. 16” OC: This procedure is generally the same as with If you do not have access to additional I-Joist, then see solid wood joists (see prior page).
  • Page 21 Versa Lift ATTIC OPENING PREPARATION ANOTHER POSSIBLE FRAMING TECHNIQUE for I-JOISTS 16” OC: The procedure is generally the same as with I-Joists on the prior page, but when the home is a finished construction (already built and owned) you may not have extra I-Joist pieces from which to construct headers.
  • Page 22 21. 10-32 Locknut (6) 22. Screw Cover (6) 23. 1/2 x 3/8”Cable Clamp Spacer (10) 24. 6-32 x 1/4” Phillips Screw (4) 25. #17 x 1” Nails (2 oz.) 26. 2 x 2” x 20” “L ” Flashing (4) 27. Short Chains (2) 28.
  • Page 23 21. 10-32 Locknut (6) 22. Screw Cover (6) 23. 1/2 x 3/8”Cable Clamp Spacer (10) 24. 6-32 x 1/4” Phillips Screw (4) 25. #17 x 1” Nails (2 oz.) 26. 2 x 2” x 20” “L ” Flashing (4) 27. Short Chains (2) 28.
  • Page 24 Wireless Models Only Versa Lift Receiver Installation 24W, 24WH, & 24WHX 2a. RECEIVER INSTALLATION - (WIRELESS ONLY) flat-tip screwdriver (Fig. 22a inset). This step requires two persons. This assembly step 2a-2. Connect the plug onto the 6-pin header visible thru should be done in the attic.
  • Page 25 Versa Lift ASSEMBLY GUIDE (All Models) 2b. LIFT HEAD ASSEMBLY - ALL MODELS Assemble the four lift housing legs to the lift housing (Fig. This step requires two persons. This assembly step 22b Inset). The locknuts provided will not work loose, should be done in the attic.
  • Page 26 (Fig. 24). Place shims 2. TIGHTEN LEG BOLTS under both legs on the low end (Fig. 24 inset). Adjust the shims until the head is level and then tighten all 8 leg 1. ADD SHIMS bolts (Fig.
  • Page 27 Versa Lift ASSEMBLY GUIDE (All Models) 5. DOOR ASSEMBLY then close the screw covers, Make sure they snap The door must be assembled down-stairs. Locate the completely shut (Fig. 25 inset). door, door braces, and fasteners shown in Fig. 25. Insert the screw through the screw cover then through 6.
  • Page 28 Versa Lift ASSEMBLY GUIDE (All Models) 7. DOOR AND PLATFORM ASSEMBLY 8. CONNECT THE LIFT HEAD TO THE PLATFORM 7-1. Locate the (8) 10-32 x 3/8” screws. Lift the platform 8-1. Release the cables and let them hang down through assembly onto the door assembly (Fig.
  • Page 29 Versa Lift ASSEMBLY GUIDE (All Models) IMPORTANT: DO NOT USE A POWER TOOL TO INSTALL THE CABLE CLAMP NUTS. USE ONLY A WRENCH OR A SOCKET AND RATCHET! THESE NUTS MUST BE TIGHTENED TO THE SPECIFIED TORQUE ONLY! 3. PASS CABLE THRU SLOT IN BRACKET AS SHOWN.
  • Page 30 Versa Lift ASSEMBLY GUIDE (All Models) 9. RAISE THE LIFTING PLATFORM WIRELESS REMOTE STANDARD REMOTE WARNING: KEEP AWAY FROM THE LIFT HOUSING AND LIFT Before proceeding, review the first 8 steps to make sure PLATFORM WHEN OPERATING! “DOWN” SWITCH you haven’t missed any assembly steps. All of the bolts (POWER) MAIN POWER SWITCH SWITCH...
  • Page 31 Versa Lift Remote & Receiver (Wireless Models) 12. WIRELESS REMOTE SETTINGS & OPERATION 13. CHANGING CODES & CONFIGURATION SETTINGS The wireless receiver and remote transmitter are pre-set at Normally you will not need to change the factory settings the factory to the codes and configurations shown below. A unless someone within a block of you is operating a Versa 9-volt battery will also be installed in the transmitter at the Lift wireless model too or you are getting interference from...
  • Page 33 For detailed Solid Lumber Joists framing suggestions, see the Versa Lift Installation Guide. TYPICAL FRAMING FOR 24” O.C. SOLID JOISTS IMPORTANT NOTE: The required finished opening is 30.5 x 58.5” with smooth sidewalls. Whenever joist hanger...
  • Page 34 For detailed framing suggestions, see the Versa Lift Installation Guide. TYPICAL FRAMING FOR 24” O.C. Fabricated I-JOISTS Note: For I-Joists, frame opening 31” x 59”, then skin inside with 1/4” plywood to make the final opening size 30.5”...
  • Page 35 Attic Storage Lifting System Attic Storage Lifting System INSTALLATION GUIDE Standard Models 32, 32H, & 32HX Wireless Models 32W, 32WH, & 32WHX Lift Opening Preparation Lift Assembly Installation PHONE (405) 516 2412 US & Foreign Patents Pending © Copyright 2006 & 2008 BPG All rights reserved.
  • Page 36 READ THIS BEFORE YOU GET STARTED IMPORTANT NOTICE: SAFETY GUIDELINES - DEFINITIONS: DO NOT OPERATE THE MOTOR UNTIL YOU ARE It is important to read and understand this manual. The INSTRUCTED TO IN STEP 9 OF THIS GUIDE! The information it contains relates to protecting your safety Versa Lift Housing and Motor are pre-assembled at and preventing problems.
  • Page 37 READ THIS BEFORE YOU GET STARTED Versa Lift BEFORE INSTALLING THIS LIFT: INSTALLATION OVERVIEW: Verify that this product and its installation does not violate local building codes. You can find out this information from a local building inspector, architect, structural 1.
  • Page 38 Versa Lift Installation - Lift Opening Requirements LIFT OPENING REQUIREMENTS: ELECTRICAL REQUIREMENTS: VERTICAL ATTIC SPACE: ELECTRICAL OUTLET: The Versa Lift requires a minimum of 60” of vertical space You will need a single 110 volt AC grounded electrical directly over the lift opening (Fig. 1b). outlet to plug in the Versa Lift power cord.
  • Page 39 Versa Lift Installation - Lift Opening Requirements LIFT OPENING REQUIREMENTS (Cont) #17 x 1” nails, placing nails within 1/4” from each edge(Fig. 2b & Inset). The flashing strips are strongly OPENINGS IN SOLID WOOD JOISTS: recommended to finish all openings, even I-Joist When ceiling joists are solid wood, the finished opening openings that are paneled with 1/4”...
  • Page 40 When the opening is aligned with opening, then use a straight edge or square to draw a solid wood joists on 16” or 24” centers or I-joists on 24” center line (Fig. 3). Next draw a line parallel to each of centers, only one ceiling joist has to be cut to frame the the narrow ends and spaced 3/4”...
  • Page 41 Optional Framing Technique #1 Depending on the size and span of your joists, you may For Homes with SOLID WOOD JOISTS 16 or 24” OC: need to double the joists on either side of the opening for If your attic is decked, you will need to remove some added strength as shown in Fig.
  • Page 42 Versa Lift Installation - Optional Framing Techniques Optional Framing Technique #2 FOR I-JOISTS ON 16” CENTERS: (This technique requires that you have additional I-Joist of the same size as that used in your ceiling. If you do not have additional I-Joist, see the technique on page 10.) I-Joists differ from solid lumber in that the “I”...
  • Page 43 (Fig. 2a & 2c on page 5). NOTE: These illustrations show I-Joist on 24” centers, but this framing procedure can also be used for 16” centers (page 8). As with solid wood joists, I-Joists that need to be cut must be supported by some means until they are 24”...
  • Page 44 58.5" extend into the opening (Fig. 3). 31” NOTE: These illustrations show I-Joist on 24” centers, but this framing procedure can also be used for 16” centers (page 8). As with solid wood joists, I-Joists that need to be cut must be supported by some means until they are connected to headers that tie them to adjacent I-Joists.
  • Page 45 21. 10-32 Locknut (8) 22. Screw Cover (8) 23. ½ dia. Cable Clamp Spacer (10) 24. 6-32 x 1/4” Phillips Screw (4) 25. #8 x 1/2” Drill Point Screws (15) 26. #12 x 1” Phillips SM Screw 27. #17 x 1” Nails (2 oz.) 28.
  • Page 46 Versa Lift Receiver Installation (Wireless Models) 2a. RECEIVER INSTALLATION - (WIRELESS ONLY) flat-tip screwdriver (Fig. 21 inset). This step requires two persons. This assembly step 2a-2. Connect the plug onto the 6-pin header visible thru should be done in the attic. Locate the parts shown the square hole in the motor housing.
  • Page 47 Versa Lift Installation - Assembly (All Models) 2b. LIFT HEAD ASSEMBLY - ALL MODELS Assemble the four lift housing legs to the lift housing This step requires two persons. This assembly step (Fig. 22 Inset). The locknuts provided will not work should be done in the attic.
  • Page 48 OUTSIDE OF THE INSET ABOVE) HOUSING LEGS! housing and see if head is level (Fig. 24). Place shims under both legs on the low end (Fig. 24 bottom inset). Adjust the shims until the head is level and then tighten all 8 leg bolts (Fig.
  • Page 49 Versa Lift Installation - Assembly (All Models) 5. DOOR ASSEMBLY pointing toward the center of the panel. Fasten each The door must be assembled down-stairs. Locate the screw with a locknut. Tighten all 8 screws, then close the door, door braces, and fasteners shown in Fig. 25. Insert screw covers, Make sure they snap completely shut (Fig.
  • Page 50 Versa Lift Installation - Assembly (All Models) 7. DOOR AND PLATFORM ASSEMBLY 8. CONNECT THE LIFT HEAD TO THE PLATFORM 7-1. Locate the (8) 10-32 x 3/8” screws. Lift the platform 8-1. Release the cables and let them hang down through assembly onto the door assembly (Fig.
  • Page 51 Versa Lift Versa Lift ASSEMBLY GUIDE Installation - Assembly (All Models) (All Models) IMPORTANT: DO NOT USE A POWER TOOL TO INSTALL THE CABLE CLAMP NUTS. USE ONLY A WRENCH OR A SOCKET AND RATCHET! THESE NUTS MUST BE TIGHTENED TO THE SPECIFIED TORQUE ONLY! 3.
  • Page 52 Versa Lift Installation - Assembly (All Models) 9. RAISE THE LIFTING PLATFORM WIRELESS REMOTE STANDARD REMOTE WARNING: KEEP AWAY FROM THE LIFT HOUSING AND LIFT Before proceeding, review the first 8 steps to make sure PLATFORM WHEN OPERATING! “DOWN” SWITCH you haven’t missed any assembly steps.
  • Page 53 Versa Lift Remote/Receiver Settings (Wireless Models) 12. INSTALLING THE STABILIZER BRACKETS: 13. WIRELESS REMOTE SETTINGS & OPERATION The wireless receiver and remote transmitter are pre-set at Note: The stabilizer brackets have larger holes on one the factory to the codes and configurations shown below. A end and smaller holes on the other end.
