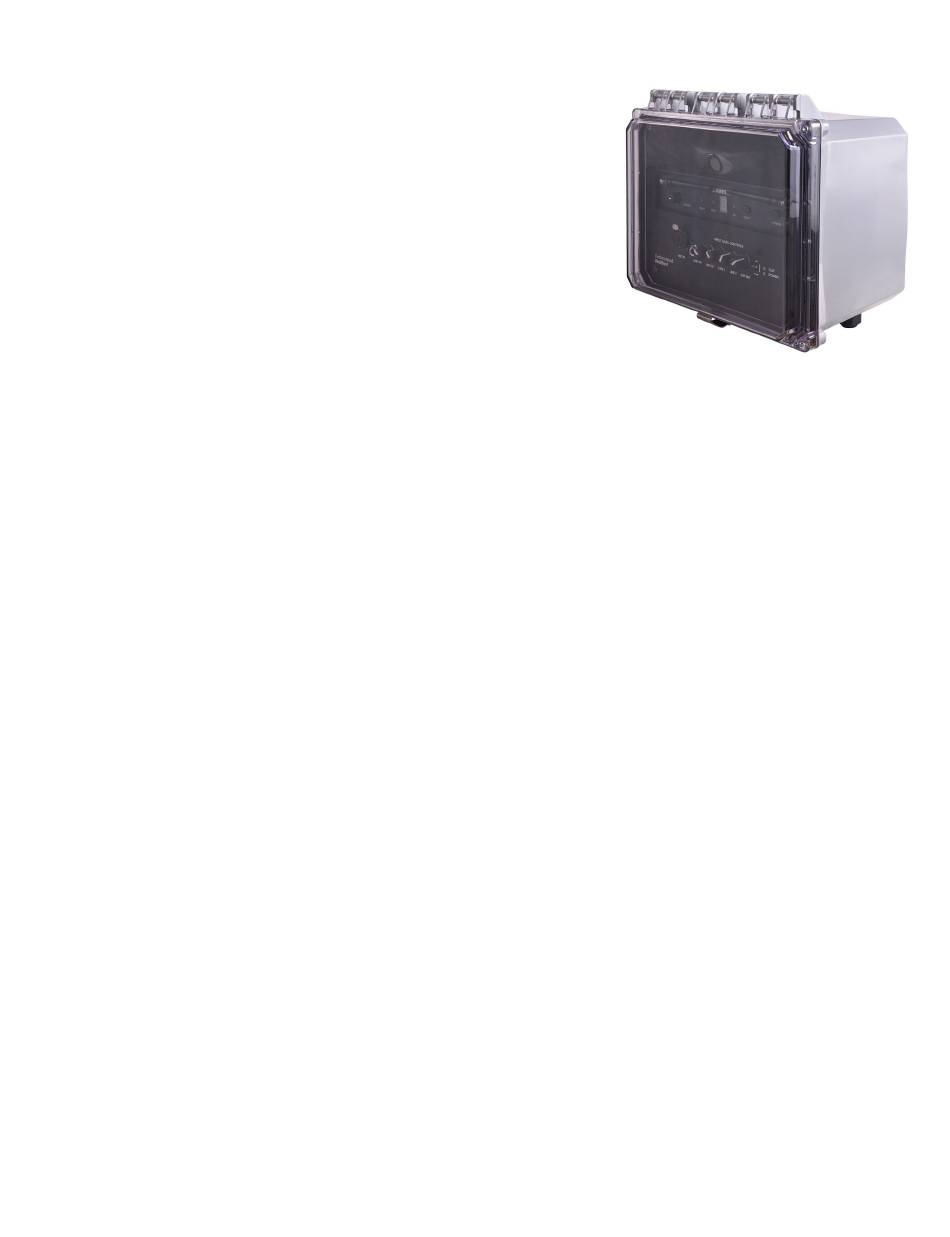

Technomad WallBox Series User Manual

Thank you for purchasing a WallBox!

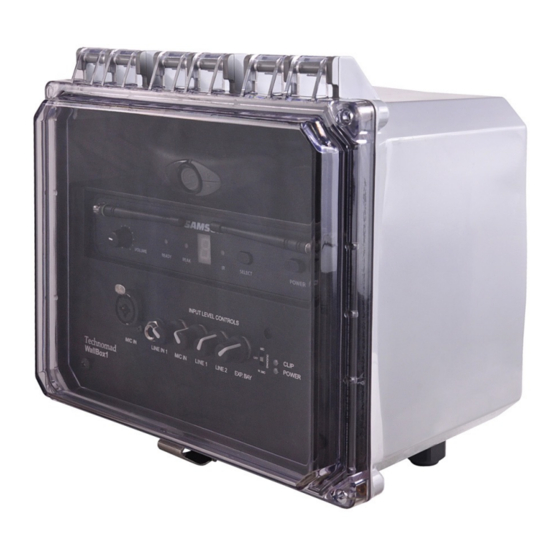

The WallBox series are perfect solutions for any application
where low profile, all-in-one weatherproof powered mixers
are needed.
The core of the WallBox is the audio mixer. The mixer offers
four separate audio inputs, each with level control. The
mixer includes a three-way ducking switch option as well as
internally accessible crossover points and a basic limiter
circuit.
The WallBox XL has an expansion bay where factory-
installed source options such as a wireless microphone
receiver, audio player and more can be mounted. Please
contact Technomad to discuss application requirements if the unit was not ordered with the needed
optional module. The unit also includes an accessory shelf where either an audio input or output ac-
cessory module can be mounted. There is a 3.5mm input cable located here so a portable device
such as phone or tablet can easily and quickly be connected to the system.

Features

Four individual input channels
1x microphone/balanced line level
3x unbalanced line level
Three way ducking circuit
Wired mic ducking, line level ducking, off
Integrated limiter
Integrated crossover filters (factory set)
Full range, 85Hz high pass, 85Hz low
pass, 350Hz high pass
Weatherproof polycarbonate enclosure
Stainless steel lockable hasp closure
Three amplifier options:
2x 50W, 1x100W, 1x150W mono (8Ω)

Installation

The BreakoutBox series are designed to be installed onto a vertical surface. Each unit includes a set
of mounting tabs which attach to the rear of the enclosure with included 10-32 flathead screws. These
allow the unit to easily mounted using appropriate hardware. Alternately, the enclosure can be mounted
using the four 10-32 inserts on the back of the unit to which the mounting tabs are bolted.

Connecting Audio Sources

To connect an external device to the unit, use an appropriate adaptor cable for the input. While the
WallBoxes are mono devices, an audio source with stereo output can be connected using the included
3.5mm to 1/4 adaptor on line input 1. If the unit is purchased with the optional Bluetooth™ receiver
module, that module will be wired in parallel to the unbalanced input so if both the Bluetooth receiver
and a source plugged into that jack are used at the same time, there will be no individual level control
for the two sources.
Technomad User Manual - WallBox

Connections

Audio Input Jacks
1x XLR- 1/4" TRS combo jack (front)
1x 1/4" jack, unbalanced line level (front)
1x expansion bay with internal connection header
1x 3.5mm input cable, unbalanced line level, (shelf)
2x NL4MP speaker jacks
Power (standard)
120VAC
12VDC aux. power (USB)
Technomad
5 Tina Drive, South Deerfield MA 01373 USA
Telephone: 800.464.7757 • Fax: 1.617.535.9712
Audio. Anywhere.
www.technomad.com • sales@technomad.com
XLR pins = mic. level
1/4" TRS pins = balanced line level
(TE Connectivity PN 1375820-3)
