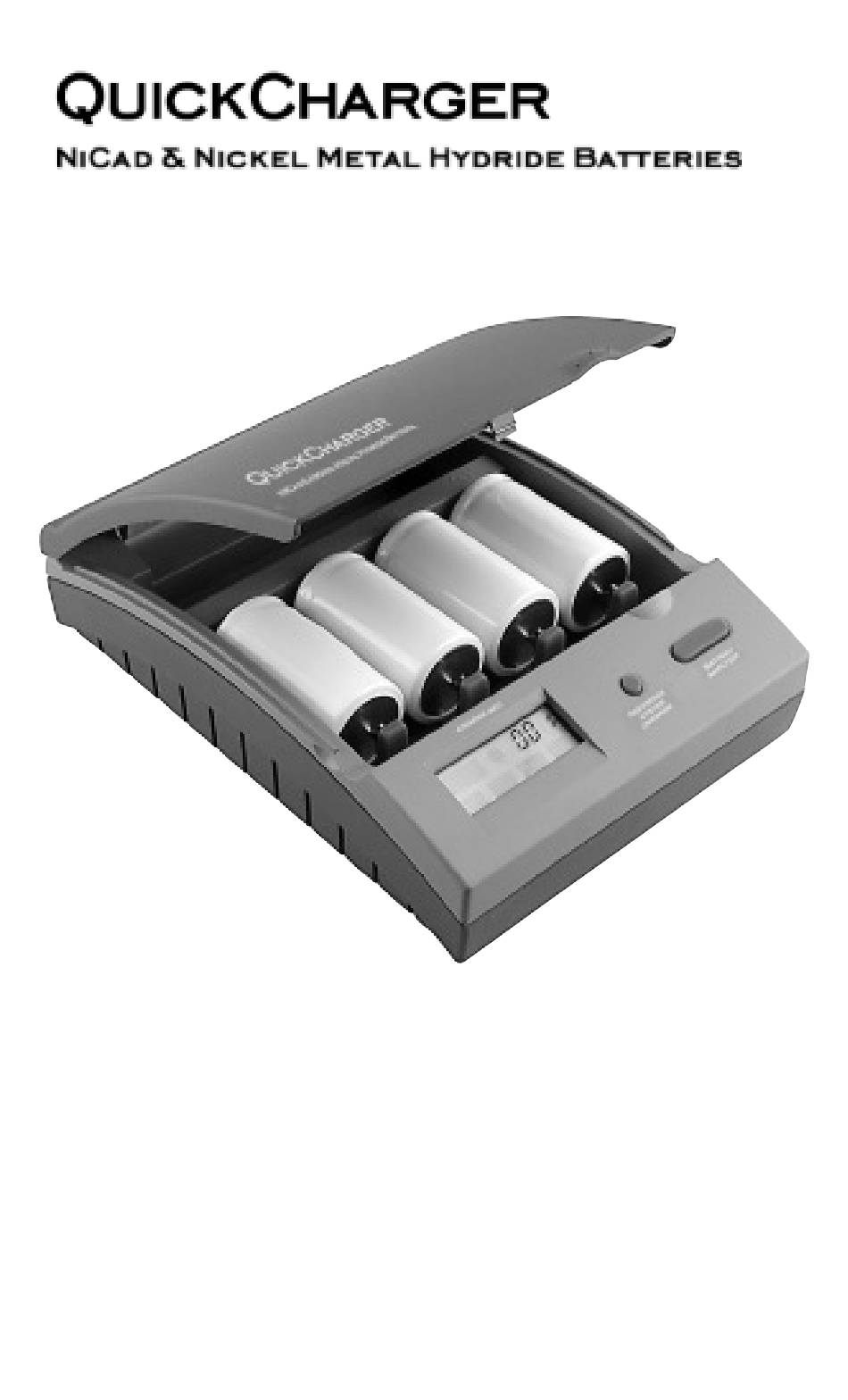

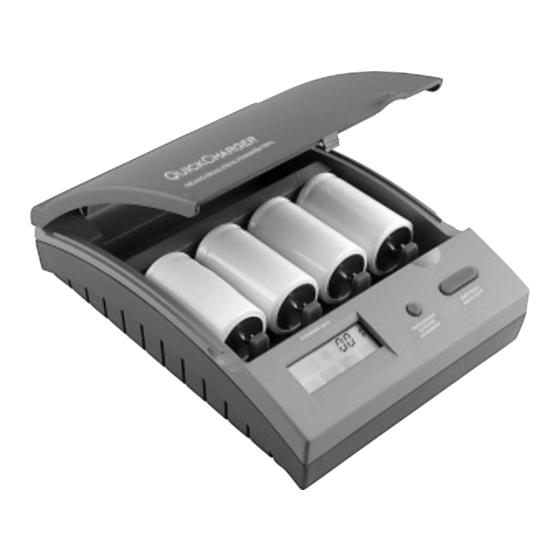

  • Page 1 Operating Instructions...
  • Page 2 USING THE QUICKCHARGER • Place the QuickCharger on a dry, stable surface. Do not position the unit above a heater or a heating vent. Do not place the unit where it can fall into or come into contact with water.

  • Page 3: Table Of Contents

    Its discharge circuit conditions batteries to improve capacity and life. The QuickCharger will charge up to four "AAA", "AA", "C" and "D" size Nickel Cadmium (NiCad) or Nickel Metal Hydride (NiMH) batteries. It will fully charge the new high capacity rechargeable batteries.

  • Page 4: Safety Instructions

    Plug the small end of the AC-DC adapter into the back of the charger. Then plug the larger end of the adapter into a wall socket. The QuickCharger will perform a short self-test and then the Loading symbol will flash indicating the Charger is ready to use.

  • Page 5: Button Identification/Function

    Insert one battery in the charger. With the lid open, press the Battery Analyzer Button. Within ten seconds the QuickCharger will display the battery capacity and voltage. The number of bars displayed in the battery icon will indicate the battery capacity (five bars equal full capacity).

  • Page 6: Charge Info Display

    Discharge System Override Button You can use the Discharge System Override button to either discharge a battery “on command” or to skip the discharge cycle. When NiCad batteries are loaded in the Charger the Intelligent Discharge System (I.D.S.), symbol on the display, it may start to discharge the batteries in preparation for recharging.

  • Page 7: Display Information

    Display Information Intelligent Discharge System: When the I.D.S. symbol is displayed, this shows that the Intelligent Discharge System is active and the batteries are being discharged. Soft Start Charging: The Soft Start symbol will be displayed as the Charger starts to charge the batteries. Fast Charging: The Fast symbol will be displayed after the Soft Start cycle.

  • Page 8: Typical Charging Sequence

    80-90% charged the Charger will start Top Off. When the batteries are fully charged the charged battery symbol will be displayed. The QuickCharger will con- tinue to apply a Trickle Charge to maintain the batteries voltage until you are ready to use them.

  • Page 9: Troubleshooting Guide

    TROUBLESHOOTING GUIDE SOLUTIONS SYMPTOMS POSSIBLE CAUSES Wrong AC adapter. The unit doesn’t work. Use with supplied adapter only. Defective AC-DC Replace it with a new adapter. adapter. Loose or bad contact. A battery is inserted Reinsert the battery and and the ANALYZE secure it firmly.
  • Page 10 TROUBLESHOOTING GUIDE SYMPTOMS SOLUTIONS POSSIBLE CAUSES Static hangup. The LCD display is Remove all batteries. faulty when the power Unplug the jack and wait is first turned on. 5 seconds before plugging the unit in again. Defective unit. Battery charging starts Contact your dealer.

  • Page 11: Specifications

    C. Crane Company Inc. will repair or replace at its discretion, the defective merchandise at no charge (except for your packing and shipping cost), upon delivery of this item to C. Crane Company’s service center with a copy of proof of purchase date.
