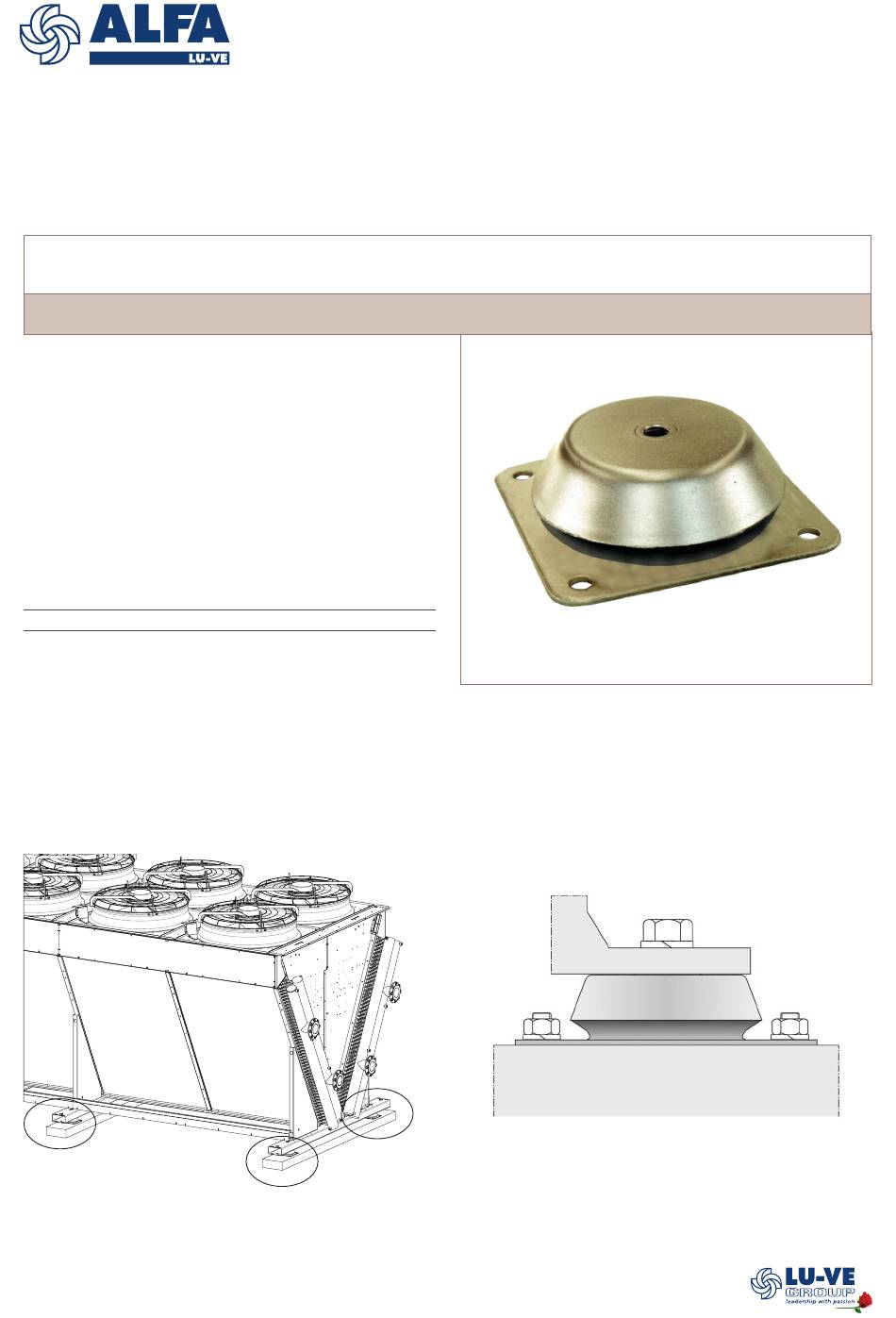

Vibration dampers
For Alfa LU-VE air cooled condensers, gas coolers & liquid coolers
General information & application
For active and passive isolation of fan vibrations and to
reduce noise transmission, Alfa LU-VE strictly recommends
the installation of vibration dampers on all outdoor air heat
exchanger equipment like air cooled condensers and air
cooled liquid coolers.
Vibration dampers can be mounted on all AlfaBlue Junior,
AlfaBlue, and Alfa-V heat exchanger models. Vibration damp-
ers are also available as spare parts.
Metal parts Galvanized steel, yellow zinc plated
Isolator Natural rubber, hardness 60° Sha
Mounting instructions
Vibration dampers are to be mounted between the mounting
feet and the base construction, preferably before positioning
the unit. The vibration dampers are to be fixed on the con-
struction base using anchor bolts (2 or 4 for each damper).
After having mounted the vibration dampers, the heat
exchanger unit can be positioned and fixed.
Positioning of vibration dampers
Vibration dampers
