Summary of Contents for One Tech 2Z-ATK-6M

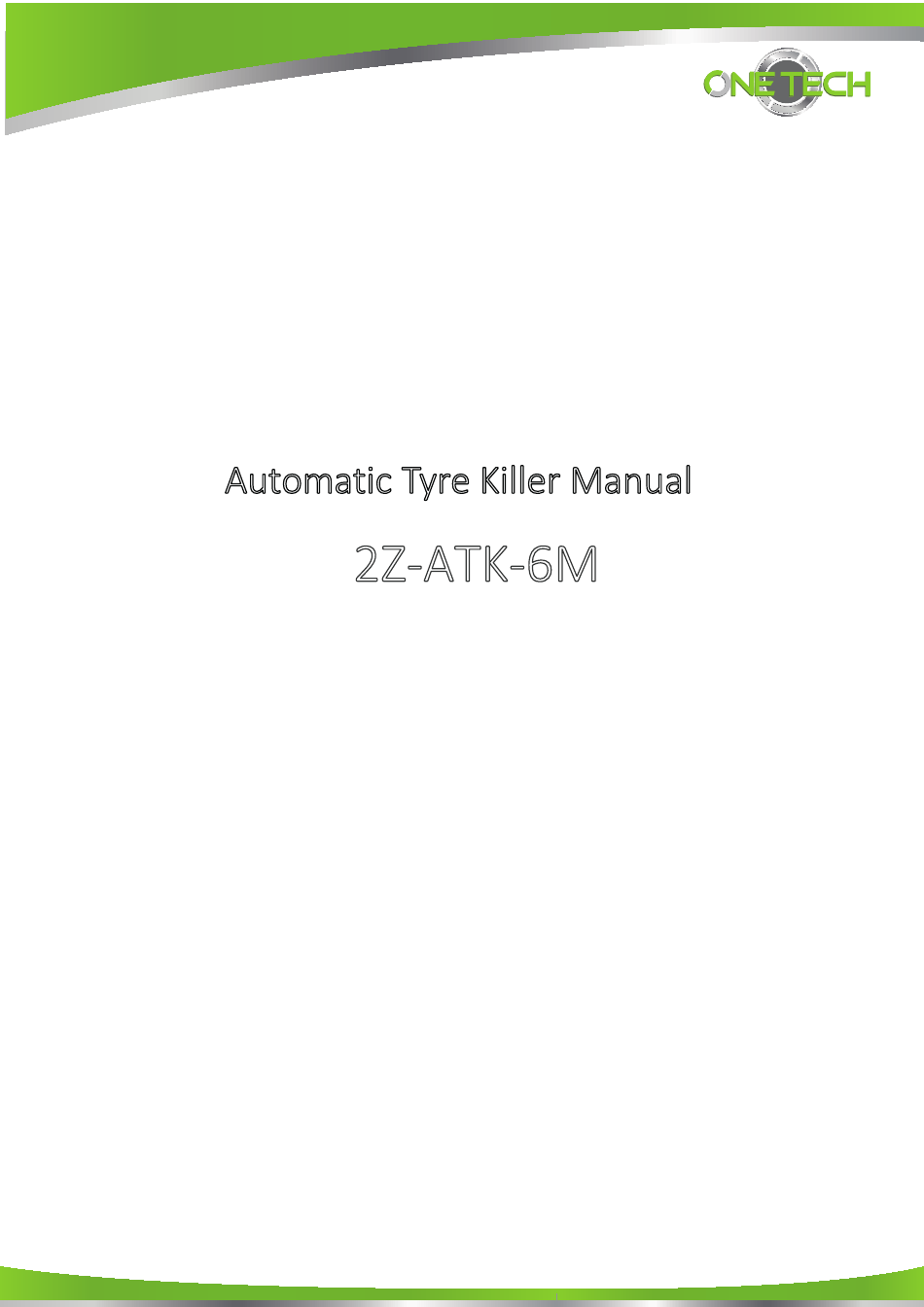

- Page 1 Automatic Tyre Kille r Manual 2Z-ATK-6M...
- Page 2 Warning Automatic tyre killer is a type of complicate equipment. For to prevent product structure damage, forbid disassemble equipment. This product used with hazardous voltage, whole system need periodically inspect, prevent personal injury. Correct wiring connection according to directions, to prevent equipment damage.
- Page 3 Product Profile Introduction Tyre killer, also known as broken tyre device, the original intention of tyre killer is to prevent vehicles escape from toll stations. The product can be operated by manual buttons and remote control. Tyre killer can slow down vehicle and has puncture tire functions, it is the essential special facilities to prevent vehicles forcibly passed.
- Page 4 Installation Materials Preparation 1. Cutting machine (for to break road); 2. Excavator with a broken hammer (for to break road); 3. Level ruler(equipment leveling); 4. Electric concrete vibrator; 5. C30 concrete; 6. Wire trunking, impact drill, drill (Φ6), Φ8 expansion screw (for to fix indoor circuit and control box);...
- Page 5 2. Setφ75mm PVC pipeline as drainage, connect with drainage well. Drainage well depth have to over 2m. If have municipal drainage around, could connect equipment drainage pipe to municipal drainage directly. Use anti-taste drain. 3. Set the electronic control system in the control room. 4.
- Page 6 5. When concrete completely solidified, use crane to hang tyre killer into the foundation. Level the device with level ruler. Tyre killer should 1mm higher than road surface. Equipment bottom gaps need be filled and smoothed by concrete, prevent concrete flow into equipment.
- Page 7 Button Box Three buttons on button box, Up; Down; Stop. Up button rise tyre killer; Down button fall tyre killer; Stop button stop running tyre killer. Note 1. During operation MUST pay attention to pedestrian and traffic safety. 2. Ensure the equipment has returned to its original position before vehicle access.
- Page 8 Regular inspections and maintenance are the basis for ensuring that the equipment works at optimum efficiency. Please pay attention to the following points when performing equipment maintenance: 1. The electrical power should be cut off during electrical maintenance, and the maintenance and inspection signs should be hung in a prominent position.
