Summary of Contents for SUPRO BLACK MAGICK REVERB

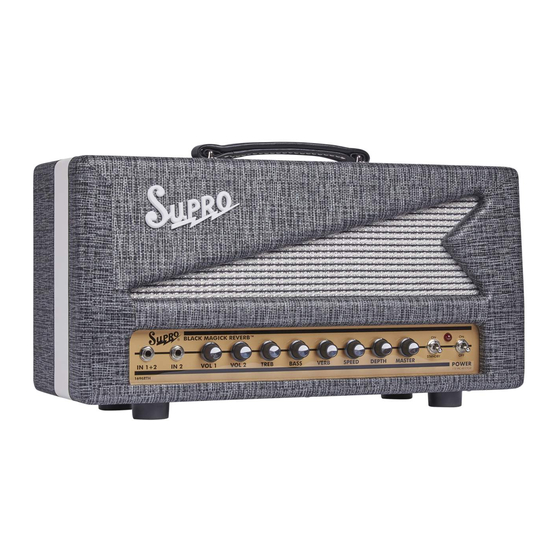

- Page 1 BLACK MAGICK REVERB HEAD AND COMBO User Manual All Contents © Bond Audio LLC 2020...
- Page 2 Do not impede ventilation by placing objects on top of the apparatus which extend past the rear edge of its cabinet. • Please contact Supro directly or a qualified person for tube replacement. • The AC plug is the mains disconnect. The plug should remain accessible after installation.
- Page 3 CONTENTS 1 Important Safety Information Contents 2 Anatomy and Usage 2.1 Front Panel................................2.2 Rear Panel................................2.3 Setting Tones............................... 2.4 Tubes..................................2.5 Troubleshooting..............................3 Supro Warranty Policy 3.1 USA/Canada Warranty............................3.2 International Warranty............................
- Page 4 2. ANATOMY AND USAGE 2.1 FRONT PANEL IN 1+2 Instrument input for using channel 1 and channel 2 in parallel. Plugging an instrument into this input sends your guitar signal to both preamps in parallel. When a second instrument is connected to In 2, In 1+2 only connects to channel 1. IN 2 Instrument input for using channel two by itself.
- Page 5 SPEAKER OUTPUTS The Black Magick Reverb provides two 4 Ohm, two 8 Ohm, and one 16 Ohm speaker outputs. When using a single 8 Ohm speaker, such as the internal speaker in the combo, connect the speaker or cabinet to the 8 Ohm jack. If using two 8 Ohm speakers or cabinets, plug them both into the 4 Ohm jacks.
- Page 6 2.4 TUBES Each Supro tube amplifier is a 100% analog, 100% tube amplifier. There are no solid state (transistor) devices in any audio signal path. Black Magick Reverb Tube Layout: 6973 12AX7/ECC83 12AX7/ECC83 12AX7/ECC83 PHASE INVERTER PREAMP PREAMP 6973 12AX7/ECC83...
- Page 7 2 years), customer pays shipping to Supro USA and Supro USA pays return ground shipping. If the amplifier is returned to Supro and the cause is proven to be oversight or user error, customer will be responsible for return shipping.
- Page 8 suprousa.com All Contents © Bond Audio LLC 2020...
