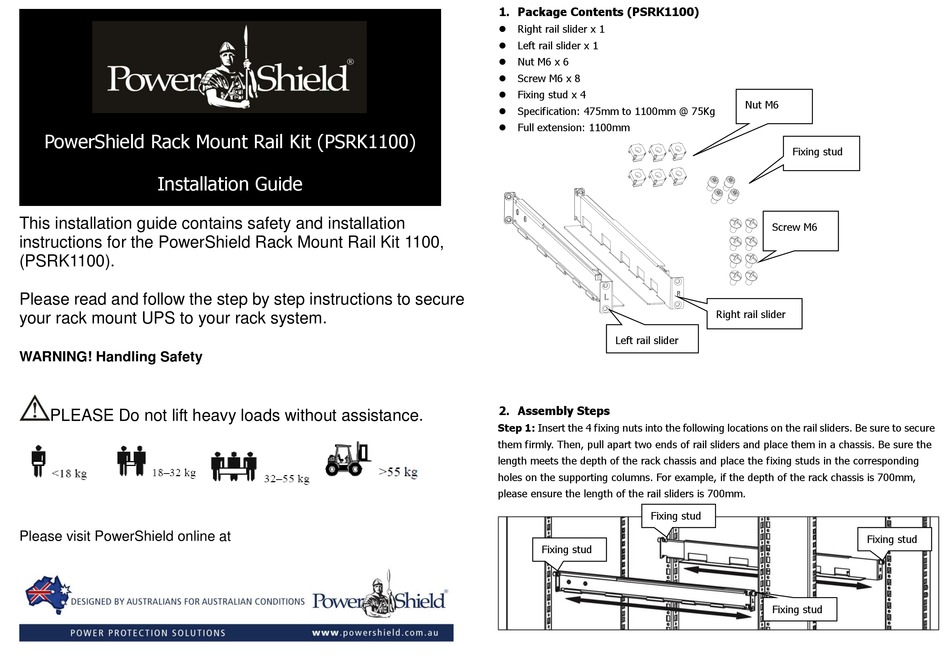

PowerShield Rack Mount Rail Kit (PSRK1100)
Installation Guide
This installation guide contains safety and installation
instructions for the PowerShield Rack Mount Rail Kit 1100,
(PSRK1100).
Please read and follow the step by step instructions to secure
your rack mount UPS to your rack system.
WARNING! Handling Safety
PLEASE Do not lift heavy loads without assistance.
Please visit PowerShield online at
1. Package Contents (PSRK1100)
Right rail slider x 1
⚫
Left rail slider x 1
⚫
Nut M6 x 6
⚫
Screw M6 x 8
⚫
Fixing stud x 4
⚫
Specification: 475mm to 1100mm @ 75Kg
⚫
Full extension: 1100mm
⚫
2. Assembly Steps
Step 1: Insert the 4 fixing nuts into the following locations on the rail sliders. Be sure to secure
them firmly. Then, pull apart two ends of rail sliders and place them in a chassis. Be sure the
length meets the depth of the rack chassis and place the fixing studs in the corresponding
holes on the supporting columns. For example, if the depth of the rack chassis is 700mm,
please ensure the length of the rail sliders is 700mm.
V. 1.0
Fixing stud
Nut M6
Fixing stud
Screw M6
Right rail slider
Left rail slider
Fixing stud
Fixing stud
Fixing stud
