  • Page 2 Symbol reserves the right to make changes to any product to improve reliability, function, or design. Symbol does not assume any product liability arising out of, or in connection with, the application or use of any product, circuit, or application described herein.

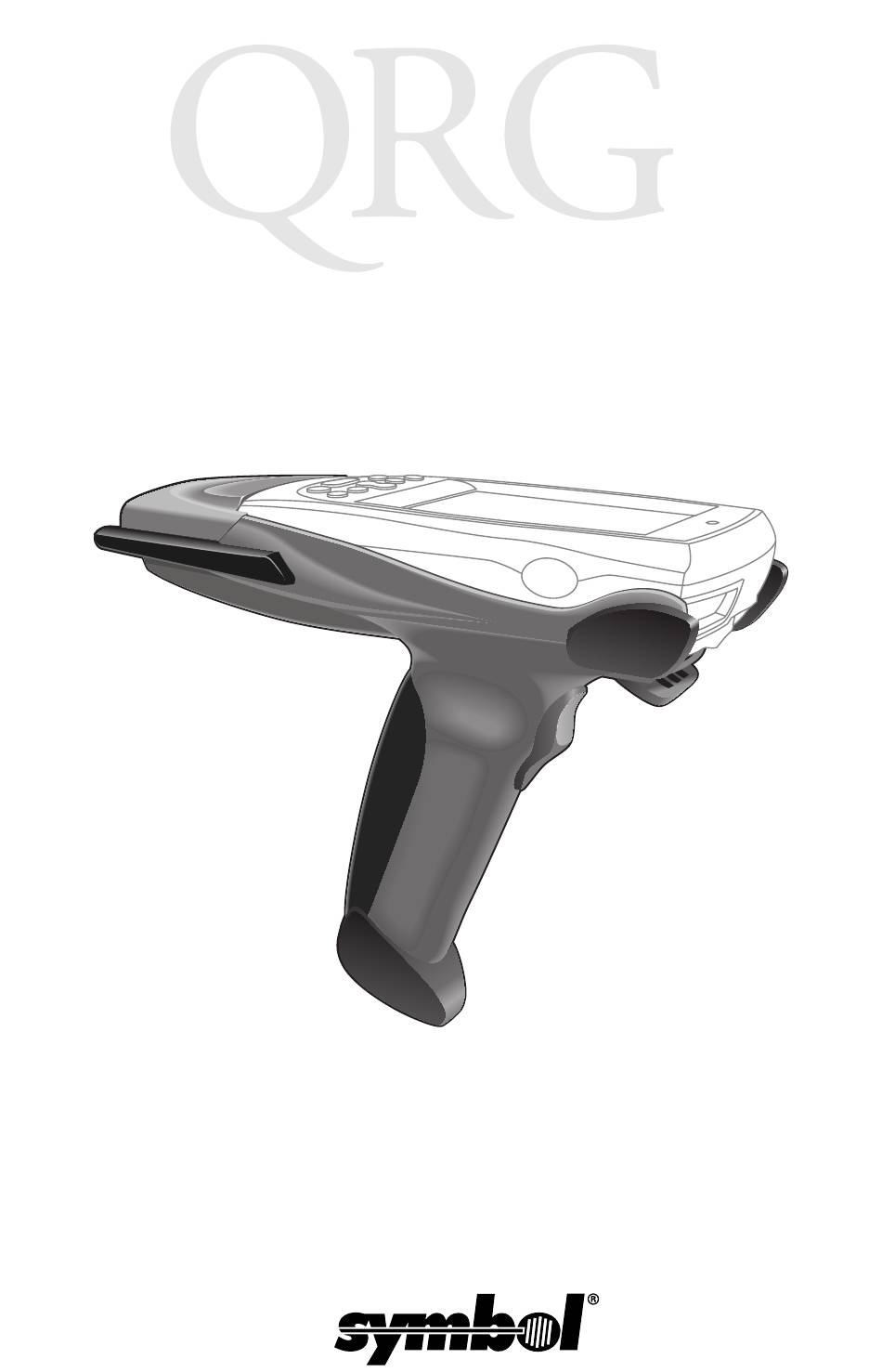

  • Page 3 Q u i c k R e f e r e n c e Introduction The TRG 8800 Trigger Handle adds a gun-style handle with a ® scanning trigger to the PPT 8800 with Windows Embedded ® CE .NET terminals and the PPT 8800 with Windows Mobile 2003 Software for Pocket PCs terminals.
  • Page 4 T R G 8 8 0 0 Parts Release Stylus Silo Serial Port Communication Print/Scan Switch Captive Screws Cleat (Mounts on Printer Port Terminal)
  • Page 5 Q u i c k R e f e r e n c e Installing the Cleat on the Terminal Caution: The cleat secures the terminal in the Trigger Handle and prevents the terminal from slipping out of the Trig- ger Handle.

  • Page 6: Configuring The Terminal

    In order to use the Trigger Handle with the terminal you must configure settings on the terminal. In order to operate properly, the terminal requires that external 5 volts be enabled in the Symbol Settings control panel. There are three possible settings for the external 5 volt option:...
  • Page 7 ® a. For PPT 8800 with Windows Mobile 2003 Software for Pocket PCs, tap Start - Set- tings - System tab - Symbol Settings icon. ® b. For PPT 8800 with Windows Embedded CE .NET, tap Start - Settings - Control Panel - dou- ble-tap Symbol Settings icon - tap Settings tab.
  • Page 8 T R G 8 8 0 0 Scanning To scan bar codes: 1. Place the switch on the Trigger Handle in the Print/Scan position. 2. Start the terminal’s scanning application. 3. Aim the terminal at the bar code. 4. Pull the trigger on the handle.

  • Page 9: Charging And Communication

    Q u i c k R e f e r e n c e Printing 1. Place the switch on the Trigger Handle in the Print/Scan position. 2. Connect a printer cable to the connector on the bottom of the Trigger Handle.
  • Page 10 T R G 8 8 0 0 • Four-Slot Serial Charging Cradle CRD8800-4000S • Four-Slot Ethernet Cradle CRD8800-4000E. Using the Serial Charging Cable To charge the terminal’s battery or communicate with a host computer while the terminal is in the Trigger Handle, use the Serial Charging Cable setup below: AC Line Cord Power Supply...
  • Page 11 Q u i c k R e f e r e n c e 2. Refer to the terminal’s Product Reference Guide for communication setup. Using a Cradle To charge the terminal’s battery while the terminal is in the Trigger Handle use either the CRD 8800B-1000S Single-Slot Serial cradle, the CRD 8800-4000S Four-Slot Serial Charging cradle or the CRD 8800-4000E Four-Slot Ethernet cradle.

  • Page 12: Troubleshooting

    T R G 8 8 0 0 Troubleshooting Problem Cause Solution Scan line does Ensure the terminal is attached Remove the terminal from the not appear when properly to the Trigger Handle Trigger Handle and reinsert. trigger is pressed. and is making contact with the synchronization port Verify that the terminal con- Load a scanning application...

  • Page 13: Ergonomic Recommendations

    Regulatory Information All Symbol devices are designed to be compliant with rules and regulations in locations they are sold and will be labeled as required. Any changes or modifications to Symbol Technologies equipment, not expressly approved by Symbol Technologies, could void the user's authority to operate the equipment.

  • Page 14: Radio Frequency Interference Requirements-Fcc

    Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Marking and European Economic Area (EEA) Statement of Compliance Symbol Technologies, Inc., hereby declares that this device is in compliance with all the applicable Directives, 89/336/EEC, 73/23/EEC. A Declaration of Conformity may be obtained from http://www2.symbol.com/doc/.
  • Page 15 Product result from normal wear and tear, misuse, negligence, improper storage, water or other liquids, battery leakage, use of parts or accessories not approved or supplied by Symbol, or failure to perform operator handling and scheduled maintenance instructions supplied by Seller; (iii) which...

  • Page 16: Service Information

    Sales Support +1-954-255-2610 Outside US Europe/Mid-East Contact local distributor or call Distributor Operations +44 118 945 7360 For the latest version of this guide go to: http://www.symbol.com/manuals. 72-64623-01 Revision A— August 2003 Symbol Technologies, Inc. One Symbol Plaza, Holtsville, N.Y. 11742-1300...
