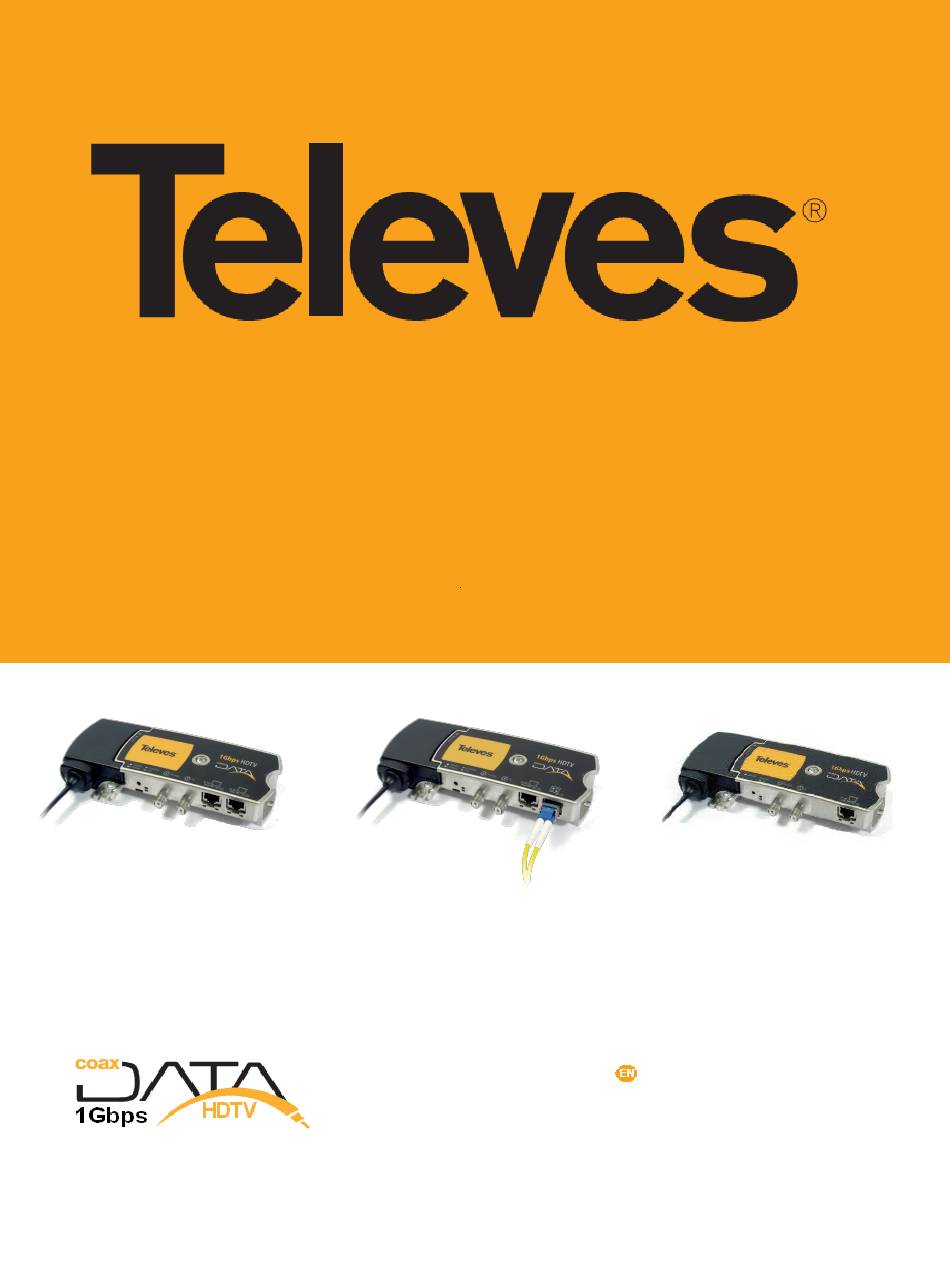

- Page 1 Ref.769201 CoaxData™ Ref.769202 CoaxData™ Ref.769203 CoaxData™ 1Gbps HDTV 1Gbps HDTV con SFP 1Gbps HDTV 1xEth Ref.769201/769202/ 769203 CoaxData™ 1Gbps Manual de Usuario...
-
Page 2: Table Of Contents
Table of Contents Important safety instructions........................5 General installation conditions........................5 How to use the equipment safely.........................5 Electrical safety symbols..........................5 Introduction............................... 6 Modem Ethernet over Coaxial. CoaxDATA 1Gbps-HDTV................6 Main Features.............................. 6 System Requirements..........................7 CoaxData 1Gbps-HDTV Package Contents....................7 Knowing CoaxData 1Gbps HDTV ......................8 Adapter Interfaces............................8 Adapter LEDs...............................9 Setting Modem operating mode...................... -
Page 4: Important Safety Instructions
Electrical safety symbols This symbol indicates compliance with the requirements of CE mark. This symbol indicates that the equipment is for indoor use only. This symbol indicates that the equipment complies with the safety requirements for class II equipment. www.televes.es... -
Page 5: Introduction
TV channels or other existing services. The Coaxial Ethernet modem immediately connects multiple PCs on the coaxial network or powerline on your home, hotel or buildings without additional cabling. Televes provides two variants of product: Ref.769201 CoaxData ™ 1Gbps-HDTV incorporates power supply, two "F" connectors for TV and data connectors and two RJ-45 Ethernet 1000BASE-T/100BASE-TX/10BASE-T Ref.769202 CoaxData ™... -
Page 6: System Requirements
Plug & Play System and no requires installation of any software or additional driver. CoaxData 1Gbps-HDTV Package Contents Ref.769201/Ref.769202/ Ref.769203 CoaxData 1Gbps-HDTV Users Quick Install Guide 75Ohm RF Load. CoaxDATA 1Gbps-HDTV Quick Install Guide 75Ohm RF Load Adapter www.televes.es... -
Page 7: Knowing Coaxdata 1Gbps Hdtv

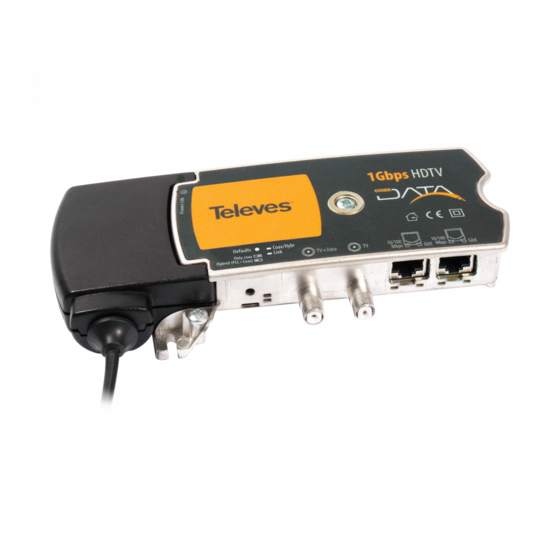

Televes ® Knowing CoaxData 1Gbps HDTV Adapter Interfaces Ethernet Ports 2xEthernet RJ-45 Ports (Ref.769201) or 1xEthernet RJ-45 Port (Ref.769202, Ref.769203) 10BASE-T/ 100BASE-TX/1000BASE-T standards-compliant that connect CoaxData 1Gbps-HDTV to your PC or laptop. With a second connector for an additional connection to another device: VoIP phones, set top boxes, televisions, etc.. -
Page 8: Adapter Leds
Signal is always transmitted on the coaxial. Adapter LEDs Hybrid/Coaxial Medium LED LED indicating the selected transmission medium through the front switch • Coaxial: Green. Only connected via coaxial cable • Hybrid: Orange. Connected to both coaxial media + PLC. www.televes.es... - Page 9 Televes ® Link State LED tri-color LED(green/orange/red) that perform a dual role: on one hand led will light if established connectivity with another device on the other led flash indicating activity in data transmission. The color of the LED indicates the link quality.
-
Page 10: Setting Modem Operating Mode
These operating modes are set by CoaxManager Software. In the Configuration tab, whether enable the MDU and if mode of operation is master or slave. You can also indicate transmission medium connection made, only coaxial or hybrid network (Coaxial + Electrical). www.televes.es... -
Page 11: Homenetworking Installation Of Coaxdata 1Gps-Hdtv
Televes ® HomeNetworking Installation of CoaxData 1Gps-HDTV CoaxData HDTV 1Gbps adapter is configured to create a HomeNetworking plug-and-play network. This mode creates a LAN and enabling all devices to communicate with each other (peer-to-peer). After unpacking the product (1), quick install consists of a medium selection by which to create the network. -
Page 12: Mdu/Mxu Installation Of Coaxdata 1Gps-Hdtv
CoaxData 1Gbps-HDTV Ref.769201/Ref.769202 MDU/MxU Installation of CoaxData 1Gps-HDTV The figure below shows a schematic of how to connect the CoaxData 1Gbps-HDTV to header installation (MDU Master), to distribute the available data services: Internet, Video Streaming, VoIP to dwellings (MDU Slave): www.televes.es... -
Page 13: Setting Master On Distribution Headend
Televes ® Setting Master on Distribution Headend In order to create a data network in the building is necessary set MxU Master mode on device installed on headend. Master mode is set with CoaxManager. Connect Master to Coaxial Headend Master Installed on headend establishes two connections: ... -
Page 14: Connect Slave To Coaxial Outlets
Ethernet 1000/100/10 Mbps speeds with auto-negotiation enabled, which allows to reach the maximum possible speed, and incorporates MDI-X function which avoids the use crossover cables. • Connect one end of the Ethernet cable to an CoaxDATA Ethernet port. • Connect the other end to an PC or laptop Ethernet port. www.televes.es... - Page 15 Televes ® Connect Modem to CEI Coaxial Socket: Typically coaxial network distribution ends on a CEI Outlet TV. To connect modem to outlet follow next steps. • Connect CEI Female coaxial cable end to CEI male connector of TV Outlet.
-
Page 16: Application Examples - Home Networking
CoaxData allows create local network through the powerline grid infrastructure (PLC). main advantage this application is based on the fact that electricity network reaches every corner of the house. Thus CoaxData transforms electrical outlet in a data access point. www.televes.es... -
Page 17: Home Networking - Hybrid Option
Televes ® Home Networking - Hybrid Option BASIC INSTALLATION CoaxData adapter is factory configured to perform a plug- and-play home network. This allows the creation of a LAN, where devices communicate with each other ("peer-to-peer" P2P). This application is used both... -
Page 18: Application Examples - Shared Networks In Buildings
This requires the following equipment: • Advanced coaxial network analyzer to measure the noise in the return channel as Televes H45 or H60 spectrum analyzers. • Signal Noise Generator ref.5930 • CoaxData... - Page 19 Televes ® Step 0 ref.5930 Signal Measure: First step is check output of signal noise generator ref.5930 with H45/H60 meter and save the measure comparative reference measurements to be made later (Step After measuring signal level reference, it has to measure the noise level in the coaxial network in folowing steps.
- Page 20 CoaxData 1Gbps-HDTV Ref.769201/Ref.769202 www.televes.es...
-
Page 21: Shared Networks - Basic Installation
Televes ® Shared Networks - Basic Installation Working Example On Share Network installation one modem is set to MxU Master mode, controls traffic flow between slaves. CoaxDATA AccessControl™ software can enable or disable any of the network CoaxData adapters. Shared Network - Several Masters in Coaxial Header... - Page 22 To perform these individual networks need to interfere with data and decreases link quality. ensure a high isolation avoiding interference Diplexers filters determine master network range between adjacent networks using diplex filters. and also allows installation of multiple networks within a building or house. www.televes.es...
- Page 23 Televes ® How to install multiple AVLNs on the same network coaxial cable CoaxData allows the installation of up to four The password must be different in each of the master in a header on same coaxial network masters (AVLNs), and each slave must be set that serves on a tree network topology.
-
Page 24: Professional And Special Applications
These items, if not filtered, can This is significant noise in the head add noise in the return path of the network, generating a because the confluence of the noise degradation in the quality of the links. contributions of the entire system www.televes.es... -
Page 25: Professional Application - Types Of Line Amplifiers
Televes ® Professional Application - Types of Line Amplifiers Amplifier Characteristics In the presence of line amplifiers , you need to ensure the coexistence of the data network with these amps. There are three types of amplifiers: ● : Line amplifiers with active return... -
Page 26: Line Amplifier - Passive Diplexer
(bidirectional). This solution enables the management of the entire network from a single point with CoaxManager. www.televes.es... -
Page 27: Line Amplifier- Diplexer Using Coaxdata
Televes ® Line Amplifier- Diplexer using CoaxDATA Bypass using a CoaxData modem This configuration can achieve long distances, exceeding 85dB attenuation network, because CoaxDATA modems are used like signal repeaters and regenerate data signal (like line amplification). Secondary network is installed with new added... -
Page 28: Line Amplifier - Chaining Diplexer Filter And Coaxdata
Is a solution which combines the previous two and is valid in cases where high isolation is required, due to the presence of high gain active return channel (amplified) in line amplifiers. This solution increases the isolation between the two data networks avoiding interference between them. www.televes.es... -
Page 29: Coaxdata Gigabit With Ethernet Over Optical Fiber 1000Base-X
Televes ® Coaxdata Gigabit with Ethernet over Optical Fiber 1000Base-X Using a modem ref.769202 (SFP) ref.769202 incorporates a SFP module that allows connection to a multimode fiber network compliant with 1000BASE-X Gigabit standard. SFP module enables CoaxData connect to provider optical fiber networks. -
Page 30: Coaxdata Gigabit And Ethernet Over Passive Optical Networks (Epon)
The SFP used must be compatible with bidirectional transmission of a single multimode fiber. WDM allows mixing and unmixing of the three signal wavelengths. The example illustrates an application of 64 lines EPON where each serves a coaxial network. www.televes.es... -
Page 31: Troubleshooting
Televes ® Troubleshooting If you find problems in your network, check following points: Check Network Status Network Status can be check in two ways: modem LEDs state: The modem has two status LEDs: LED Medium: Only for Coaxial (Green) or Hybrid (Orange) and a link status LED: Connection Optima (Green), Normal (Orange) or poor (Red). -
Page 32: In Mxu Installations Verify That There Is Only One Master In The Network
This detection can be accomplished by querying the status of links in CoaxManager: To avoid interference, it is recommended use filters diplexers that mixes data with TV signal, according the following scheme. www.televes.es... -
Page 33: Technical Features
• IGMPv2. Four transmission queues prioritized. • VLAN IEEE 802.1p prioritization • Type of Service (ToS) and COS (Class of Service) • Source/Destination MAC Address Classifier. • Source / Destination IP Address Classifier. • Other adjustable classifiers filters. • www.televes.es...
