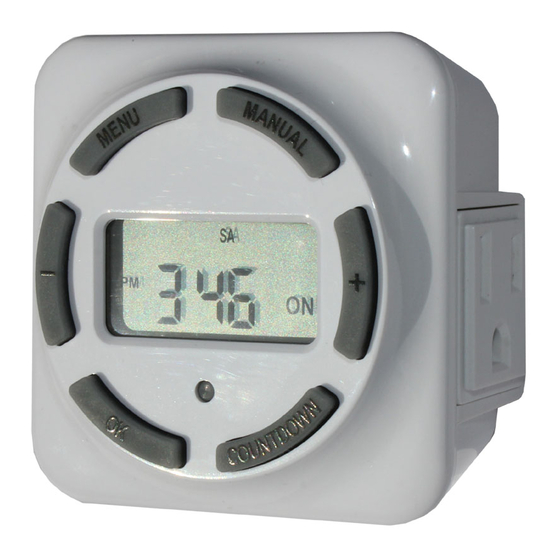

Lumo LU1800DT22065 Instruction Manual

PROGRAMMABLE DIGITAL TIMER
FOR LOW VOLTAGE LED LIGHTING TRANSFORMER
LU1800DT22065
FUNCTIONS
1. RESET
For the first use of press the RESET button, the LCD will fully display
for 2 seconds and then the clock will show:
The blinking colon means the clock is running.
2. SETTING THE CLOCK
A. Press MENU at clock display to start setting. OFF indicates that
the timer is in OFF mode.
Press OK and 'day' will flash, use +/- to adjust.
B.
Press OK to confirm and hour will flash, use +/- to adjust.
C.
Make sure AM/PM is correctly set.
D. Press OK to confirm and minute now flashes, use +/- to adjust.
Note: When minute is set, the clock will go from 0 second.
E. Press OK to confirm.
Note: To set the clock once again, press OK and repeat the steps
from 2.B.
To set programs for the timer, press MENU and see Section 3.
To quit to clock display, hold MENU for 2 seconds or more.
If no key is pressed within 1 minute, the clock format will be displayed.
3. SETTING PROGRAMS
Press MENU at clock display till PROG is shown on the screen. Up to
9 programs can be set for each day of the week. For instance, if you
want to set a daily program that starts at 8:00 AM and ends at
5:15 PM, please follow the following steps:
INSTRUCTION MANUAL

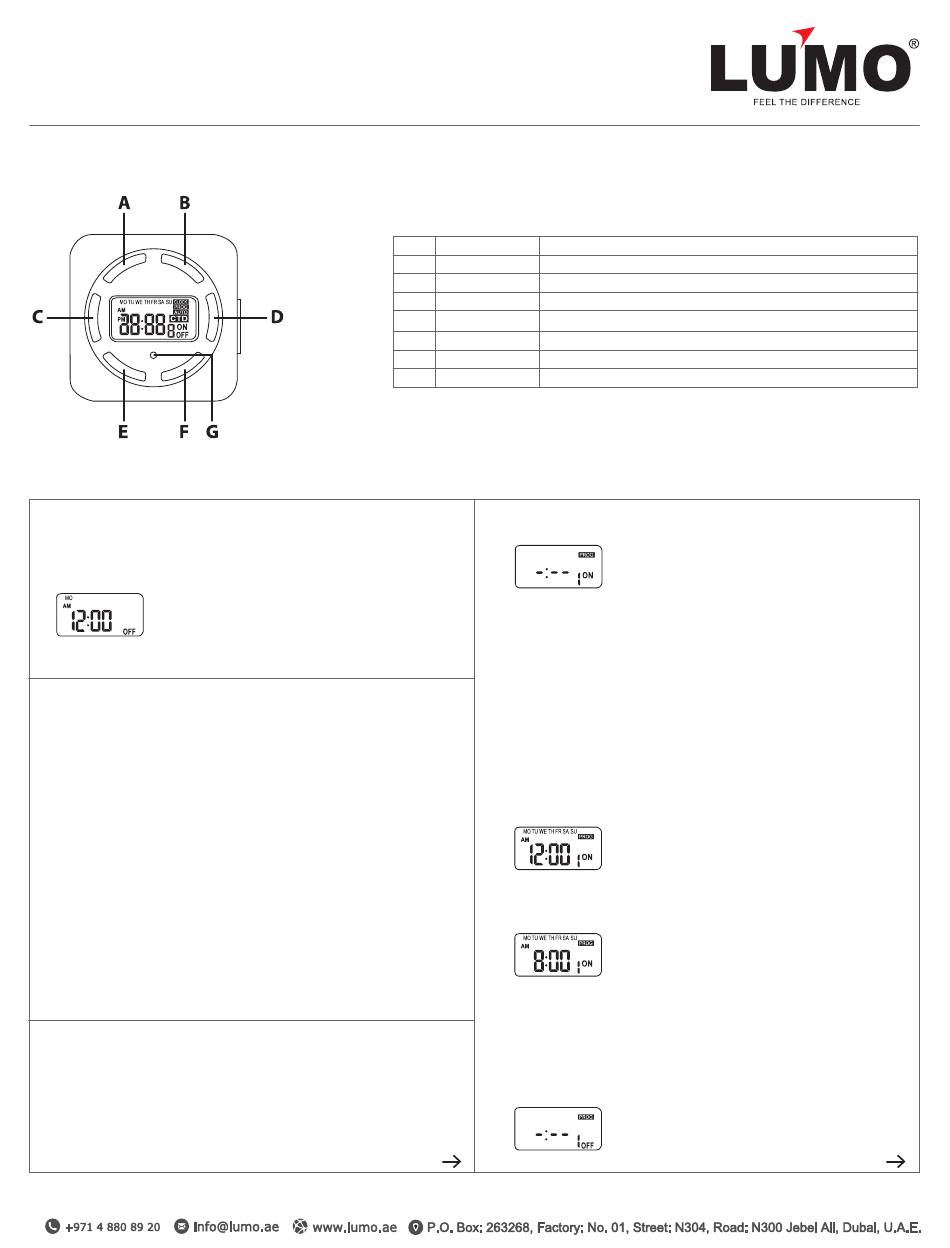

FUNCTIONS OF KEY
PART KEY
A MENU
B MANUAL
C -
D +
E OK
F COUNTDOWN
G
RESET
*For the first use, please press the RESET button key!
A.
B.
C.
D.
E.
F.
FUNCTION
shift between CLOCK and PROGRAM modes
shift between OFF/AUTO OFF/ON/AUTO ON modes
decrease the number by 1 or hold to roll fast
increase the number by 1 or hold to roll fast
confirm the current setting
start the countdown function
reset the timer and clear all data previously setting
Press MENU till the screen shows:
1ON is code of the current program.
Press OK to start setting. 'Day' will flash at this stage, use +/- to
adjust. Press +, the options will show in such order:
(MO, TU, WE, TH, FR, SA, SU) MO > TU > WE > TH > FR > SA > SU
> (MO, TU, WE, TH, FR) > (SA, SU) > (-:--); Press -, these options
will show in a reversed order.
Note: -:-- is an invalid option and if it is selected, you can press
OK again to restart setting. In our case, we should select
(MO, TU, WE, TH, FR, SA, SU):
Press OK to confirm and hour will be flashing, use +/- to adjust.
In our case, we should select 8 AM:
Press OK to confirm and minute will flash, use +/- to adjust.
In our case, the minute shall be set to :00.
Press OK to confirm and "PROG 1ON" is now correctly set.
Press MENU and the screen will show:
