Artone Communication Solutions

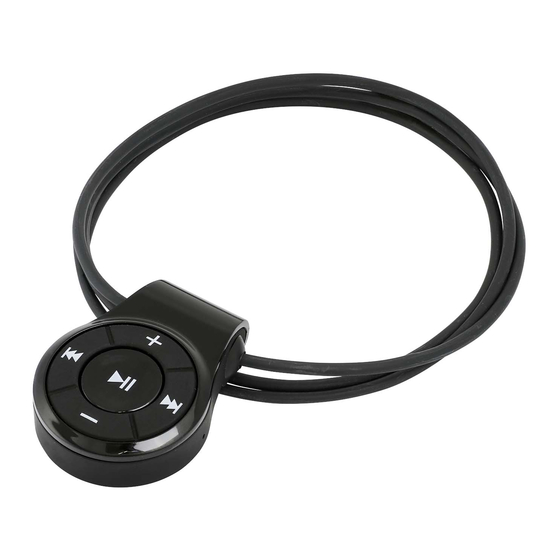

Artone 3 MAX
Bluetooth
Loopset
®
.artonecs.
www
com
Instructions manual
Introduction
Artone 3 MAX is a portable wireless listening
assistive device with built-in Bluetooth wireless
technology.
It allows hearing aid users to listen to amplified and
noise free cell phone conversation and enjoy stereo
music streamed from Bluetooth-enabled cellular
phones, personal computers or tablets.
Compatibility
Artone 3 MAX is compatible with all hearing aids and
cochlear implants equipped with t-coil function as well
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Artone Artone 3 MAX
Summary of Contents for Artone Artone 3 MAX
- Page 1 It allows hearing aid users to listen to amplified and noise free cell phone conversation and enjoy stereo music streamed from Bluetooth-enabled cellular phones, personal computers or tablets. Compatibility Artone 3 MAX is compatible with all hearing aids and cochlear implants equipped with t-coil function as well...
- Page 2 Bluetooth enabled devices that support Bluetooth Headset, Hands free, A2DP and AVRCP profiles. Working Range Artone 3 MAX works according to class 2 of Bluetooth protocol with working range of 30 feet (10M) in an open space. Notes:...
- Page 3 How to Charge the Bluetooth Loopset Artone 3 MAX has Built-in rechargeable battery. Prior to first use, fully charge the battery for 2-3 hours. Artone-3 can provide up to 4-5 hours of listening time and over 150 hours of standby time. Charging Instruction 1) Connect the power charging ports (8) with a power source (USB charger).
- Page 4 Battery Indication The red LED will remain ON while the Artone 3 MAX is being charged. When the battery is fully charged, red LED will turn OFF and the blue LED will turn on. The red LED will flash continuously when battery power is low.
- Page 5 On your mobile phone, in the Bluetooth menu directory activate search function, “find new device”, choose “Artone 3 MAX" from found devices list, following the screen prompts. In case the phone prompts for a passkey please enter 0000. (four zeros)
- Page 6 After paired Artone 3 MAX with the first mobile phone, turn off the Artone 3 MAX. Then press the MFB button of Artone 3 MAX for 7 seconds until the Blue and Red LED flash alternatively. It means it enter the pairing mode.
- Page 7 Last Number redial and the Voice Dialing function only will work on the first connected mobile phone. Trouble-shooting If you are unable to connect your Artone 3 MAX with your Bluetooth audio device, please try the following: Ensure your Artone 3 MAX is on and charged.
- Page 8 Make sure the T-coil function is turned on the hearing aid/cochlear implant. In the sound is too low, make sure the volume on the mobile phone and Artone 3 MAX are increased to adequate level. If the sound level is still not sufficient, please contact your audiologist, and ask to increase t-coil sensitivity of your hearing aid/cochlear implant.
- Page 9 Period"). If a product defect arises and a valid claim is received within the Warranty Period, at its consideration, Artone will either exchange the product with a new one or if possible repair the product. The warranty does not cover abuse, deliberate damage, negligent use, and any damage caused exceeding the lines of “normal”...
- Page 10 PRODUCT AND YOUR EXCLUSIVE REMEDY FAILS OF ITS ESSENTIAL PURPOSE. NO CONSEQUENTIAL OR OTHER DAMAGES NOTWITHSTANDING ANYTHING ELSE IN THIS POLICY OR OTHERWISE, ARTONE WILL NOT BE LIABLE WITH RESPECT TO THE PRODUCTS UNDER ANY CONTRACT, NEGLIGENCE, STRICT LIABILITY OR OTHER LEGAL...
Need help?
Do you have a question about the Artone 3 MAX and is the answer not in the manual?
Questions and answers
Bonjour , mon artone3 max ne tient pas la charge après 1h30 je dois le brancher comme pour le remettre en charge, de cette façon il fonctionne parfaitement mon artone3 à 4 ans peut on changer la batterie ? Ou faut-il acheter un nouveau collier, merci,.MrSanso
The manual does not mention the ability to replace the battery of the Artone 3 MAX. It only states that the device has a built-in rechargeable battery. If the battery does not hold a charge after 1.5 hours, a new unit may need to be purchased.
This answer is automatically generated
@Mr. Anderson ,merci pour l'information, vous certifié ce que je pensais , ce sont des appareils très utiles ,encore merci. MrSanso
