Summary of Contents for Rf-t FDC CFTH

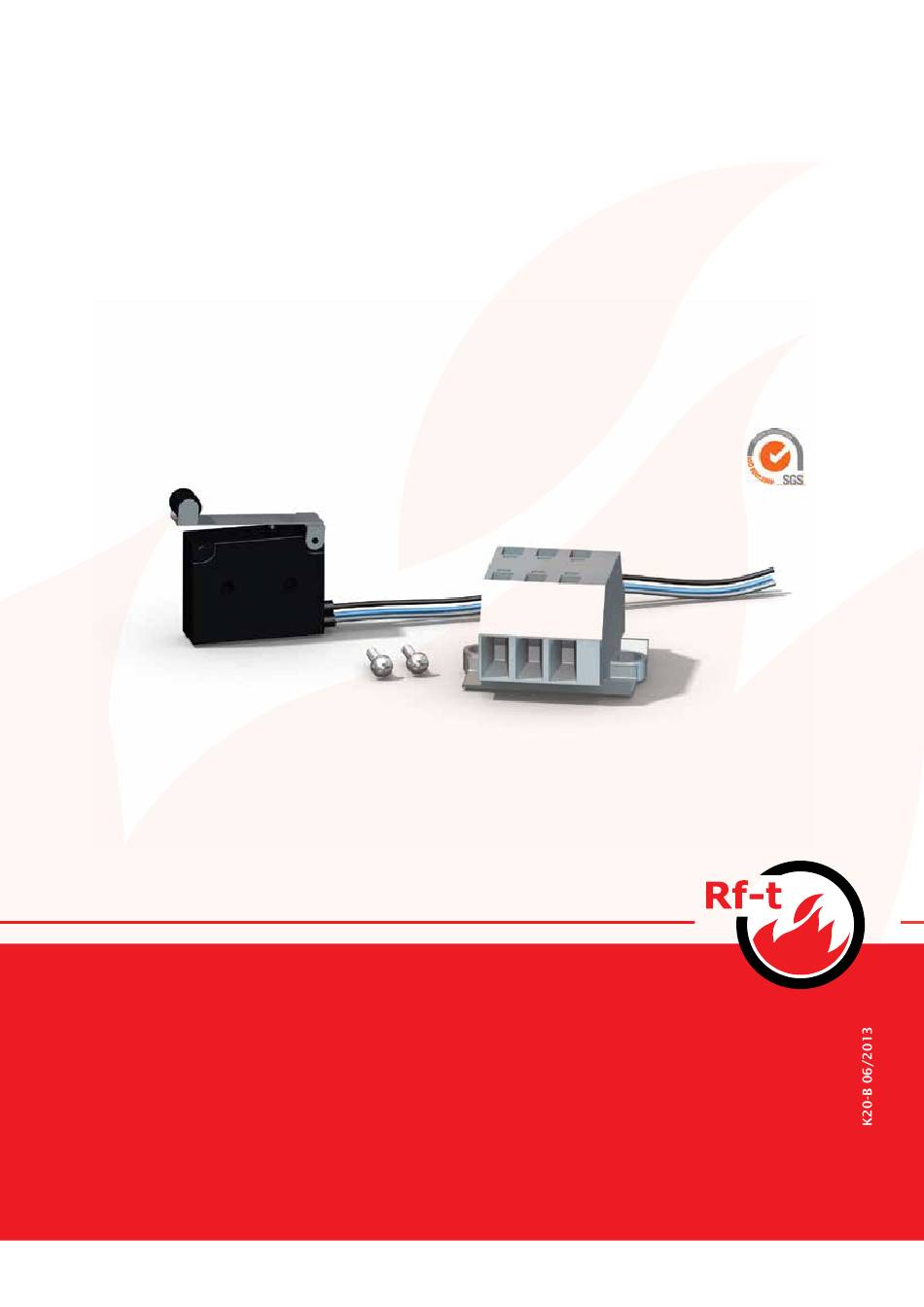

- Page 1 FDC CFTH Beginning or end of range switch Rf-Technologies nv - Lange Ambachtstraat 40 - 9860 Oosterzele - België - Tel +32 9 362 31 71 - Fax +32 9 362 33 07 - www.rft.be - info@rft.be...
- Page 2 FDC CFTH K20-B Beginning or end of range switch 06/2013 roduct Presentation By the beginning or end of range switch FDC CFTH, it is possible to indicate the open or closed position of the damper. list of Parts Description Characteristics Number...
- Page 3 FDC CFTH K20-B Beginning- or end of range switch 06/2013 cfth PPlications fig. fig. fig. fig. CU2-15 fig. cfth Peration Manual rearmation: Use the enclosed hex key and turn clockwise (2) Manual unlocking: Use the unlocking button (1) Automatic unlocking: When the fusible link melts at 72°...
- Page 4 FDC CFTH K20-B Beginning- or end of range switch 06/2013 ounting Dismantling of the switch 2. Dismantle the screws of the 1. Remove the covers. terminal block. 3. Remove the switch. Mounting of the switch 2. Fix the position switch to the 4.
