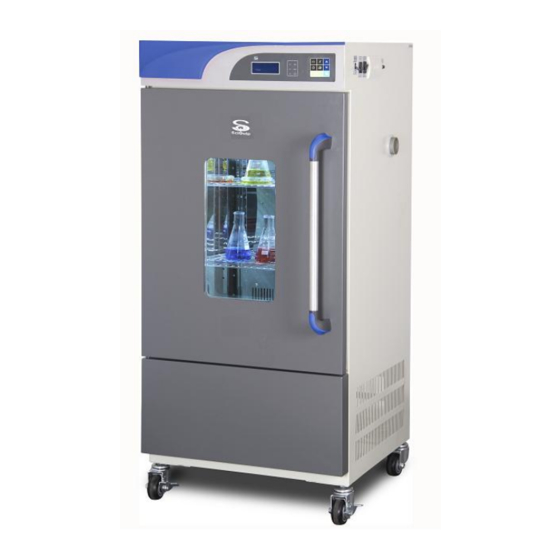

Summary of Contents for SciQuip INCU-C series
- Page 1 User’s Manual INCU-C series Economic Cooled BOD Incubator This Manual applies to: Models: INCU-90C, INCU-160C, INCU-270C, INCU-430C...
- Page 2 INCU-C Series V2018.1.1 Thanks ! Thank you very much for purchasing one of our INCU-C Series programmable refriger- ated BOD incubators, specially designed for you-the lab professional. Your choice indicates that you have very high requirements on style and performance of this type of incubators.
- Page 3 INCU-C Series V2018.1.1 Safety instruction! Please be sure to follow the instructions, they are really im- portant for your safety. Danger! Warning against damage and injury. 1. The electrical supply circuit to the incubator must conform to all national and local electric codes.
- Page 4 INCU-C Series V2018.1.1 Attention! Instructions for optimal performance 1. The unit must be placed horizontally on a solid, flat floor or table. 2. The incubator needs even heat lost on all surfaces in order to maintain small internal temperature variations. As a result, a minimum of 20 cm must be allowed between the rear and sides of the incubator and any walls, partitions or obstructions to facilitate adequate convection of air around the unit.
-
Page 5: Table Of Contents
INCU-C Series V2018.1.1 Table of contents 1. Performance Features 2. Technical Specifications 3. Control Panel 4. Preparation and Start-up 5. Setting of the Control Mode 6. Setting Parameters for Constant Temperature Control Mode 7. Setting Parameters for Programmable Control Mode 8. -
Page 6: Performance Features
A magnetic gasket on the outer door helps to insure a tight seal against the cabinet. A double-layered observation window comes as standard on every INCU-C Series Incu- bator. 2 grid shelves, 50mm test port, RS232 interface on the side wall as standard, built-in printer, ... -
Page 7: Technical Specifications
INCU-C Series V2018.1.1 2. Technical Specification Model INCU-90C INCU-160C INCU-270C INCU-430C Volume (L) Outer door with observation window, and heat resistance glass inner Door Type door Temperature Range (° C) 4 to 65 Temperature Accuracy (° C) Temperature Uniformity (° C) ±1.0 @37°... -
Page 8: Control Panel
INCU-C Series V2018.1.1 3. Control Panel Illustration of Control panel... - Page 9 INCU-C Series V2018.1.1 "SET" button: Press this button to change the parameter(s) Increase button: Press this button and the parameter will increase by one digit, the parameter will keep increasing while this button is held. Decrease button: Press this button and the parameter will decrease by one digit, the parameter will keep decreasing while this button is held.
- Page 10 INCU-C Series V2018.1.1 Actual Temperature Indicator: LCD displays the value of actual temperature Graphic Temperature Indicator: LCD displays the graphic chart of the set temperature and actual temperature Time indicator: When the LCD displays the operating time, this indicator will light, it twinkles when the screen displays the preset time.
-
Page 11: Preparation And Start-Up
INCU-C Series V2018.1.1 4. Preparation and Start-up n and Clean the chamber of incubator before you put it into use and on a regular base. The interior should be wiped down with an appropriate disinfectant, such as 70 % ISOPROPYL ALCOHOL or equivalent. -
Page 12: Setting Of The Control Mode
INCU-C Series V2018.1.1 5. Setting the Control Mode The unit can be used either in the normal control mode-as a one temperature incubator (Fixed value on the display), or in a programmable control mode with 10 segment in 20 steps. -
Page 13: Setting Parameters For Constant Temperature Control Mode
INCU-C Series V2018.1.1 6. Setting Parameters for Constant Temperature Control Mode (Fixed Mode) 6.1 Set temperature Temperature Range: 4° C to + 65° C (INCU Series) Press SET and enter the password “3”. Press the SET key again to enter the temperature set function. - Page 14 INCU-C Series V2018.1.1 6.3 Pull down Time As below, it is a graph showing a cooling down/heating up temperature control mode (model INCU-160C & INCU-270C) for time and temperature at an ambient of about 25*C. This will help you to set the parameters in the “Programme”...
-
Page 15: Setting Parameters For Programmable Control Mode
INCU-C Series V2018.1.1 Setting Parameters for Programmable Control Mode This INCU-C incubator can operate according to stored program to meet various requirements of professional experiments. Under programmable control mode, It is possible to program up to10 different segments, each with their own Ramp Time, desired Temperature and Hold Time. - Page 16 INCU-C Series V2018.1.1 Programme parameter Set Segment 1 End temperature of the first segment. Ramp end temperature 37.0° C Programme parameter Retaining time for the programmed temperature in the first step Set Segment 1 segment segment. Hold time 10.0 min Setting for segment 2.
-
Page 17: Settings Of The Other Functions
INCU-C Series V2018.1.1 Setting of the Other Functions 8.1 Setting of over temperature alarm value. (Alarm Deviation Temperature) Press the Set key and enter password “5”. Press the Set key again to enter into the over temperature alarm value. Press the Increase or Decrease key to change the required value of temperature deviation. - Page 18 INCU-C Series V2018.1.1 8.3 Power-off Recovery This unit has power-off recovery function. When after a power failure, the equipment will automatically recover to run according to the originally designed program. No setting is required 8.4 Cooling System & Defrosting Settings...
- Page 19 INCU-C Series V2018.1.1 Simplified instruction for Cooling system and Auto Defrosting settings AUTO Defrosting Timer Defrosting Time Manual Defrosting Alternatively, if the set temperature is not so low as critical, in most cases, manual de- frosting will be adequate. During the operation, enter password "16", press "Set" key, then press "Up"...
- Page 20 INCU-C Series V2018.1.1 Simplified instruction for the Graphic Chart recording time Graphic chart Interval time 8.6 Print timer/ Communication Channel NO. (Option) Press the SET key to enter the password “9”, Press the Set key again to enter print-time/Communication channel NO. set function. Press the Increase or Decrease key to modify the print-timer/Communication channel NO.
-
Page 21: Operation And Switch Off
INCU-C Series V2018.1.1 Simplified instructions for adjusting fan speed Select Fan Speed Speed Power Description Fan Speed Level Output High 2000rpm 220V-240V Medium 1400rpm 175V 1000rpm 150V Special Attention: Fan Speed Adjustment may slightly affect the temperature uniformity across the working chamber. -
Page 22: Electric Inputs & Outputs
INCU-C Series V2018.1.1 10.Electric Inputs & Outputs 11 . Temperature Calibration. Attention: 1. The unit is delivered with calibration done in the factory, so please perform the calibration only if necessary. It's recommended the unit is calibrated once a year or two years. - Page 23 INCU-C Series V2018.1.1 11.6 Keep pressing "SET" button, skip the " High Temperature Point Correction (100.0)" setting, save and exit. 11.7 The displayed temperature should have changed due to the calibration. Waiting for another one hour to let the temperature stabilize again at 8° C, and check the ther- mometer value again, and calculate the new difference.
-
Page 24: Trouble Shootings
INCU-C Series V2018.1.1 Trouble Shootings If there is a need to access the (top) control panel, use an Allen wrench of 6mm (In- cluded). Push the Allen screw in and turn at the same time. The cover will be raised a little –...
