Changing the Direction of the Retrieve on a Pre-1998 Cimarron, Gunnison,
and Saltwater Reel
CHANGING THE DIRECTION OF THE RETRIEVE

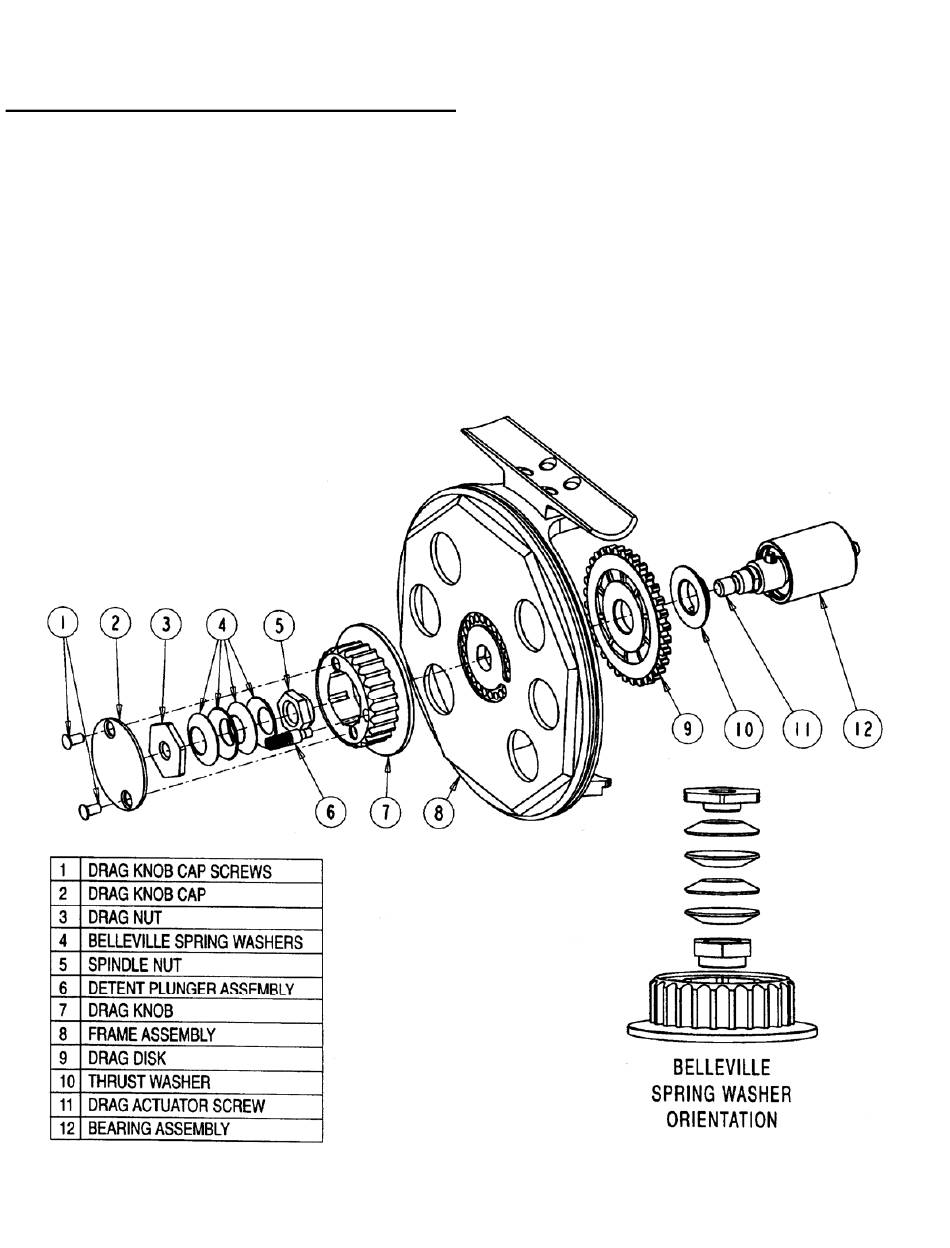

1. Remove the Spool.
2. Before proceeding, mark with a felt tip pen the top of the Drag Disk (9) facing the spool.
3. Remove the Drag Knob Cap Screws (1) from the top of the Drag Knob (7). Remove the Drag Knob Cap (2).
4. Remove the Detent Plunger Assembly (6) from Drag Knob (7).
5. Turn the Drag Knob (7) counterclockwise until the Drag Nut (3) is free. Remove the Drag Nut (3) and Belleville
Spring Washers (4) from Drag Knob (7).
6. Using a 3/8" nut driver or socket wrench (Xcelite or Crescent Drivers will work), remove the Spindle Nut (5) from
Drag Knob (7).
7. Pull the Bearing Assembly (12), or for Cimarron's, the Spindle Assembly, loose from the frame leaving the Drag
Disk (9) and the Thrust Washer (10) on the Bearing Assembly (12). If you are converting a Cimarron Reel with a
spiral clicker, the clicker must be turned over at this time. The clicker can be carefully pried from the frame with a
knife blade.
