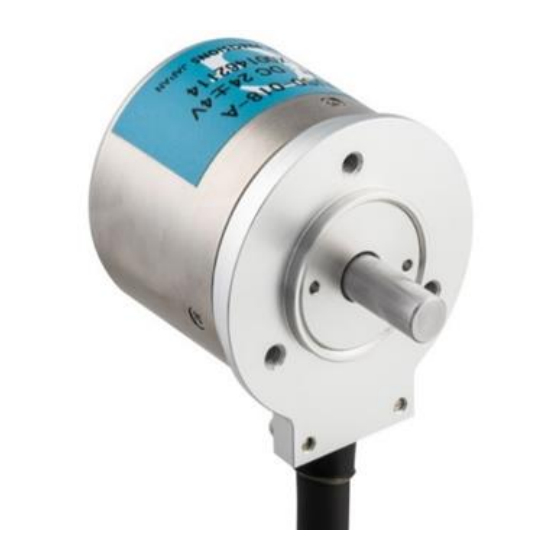

TMR Contactless Angle Sensor
CP36U Series
Programmable/ Detachable Type

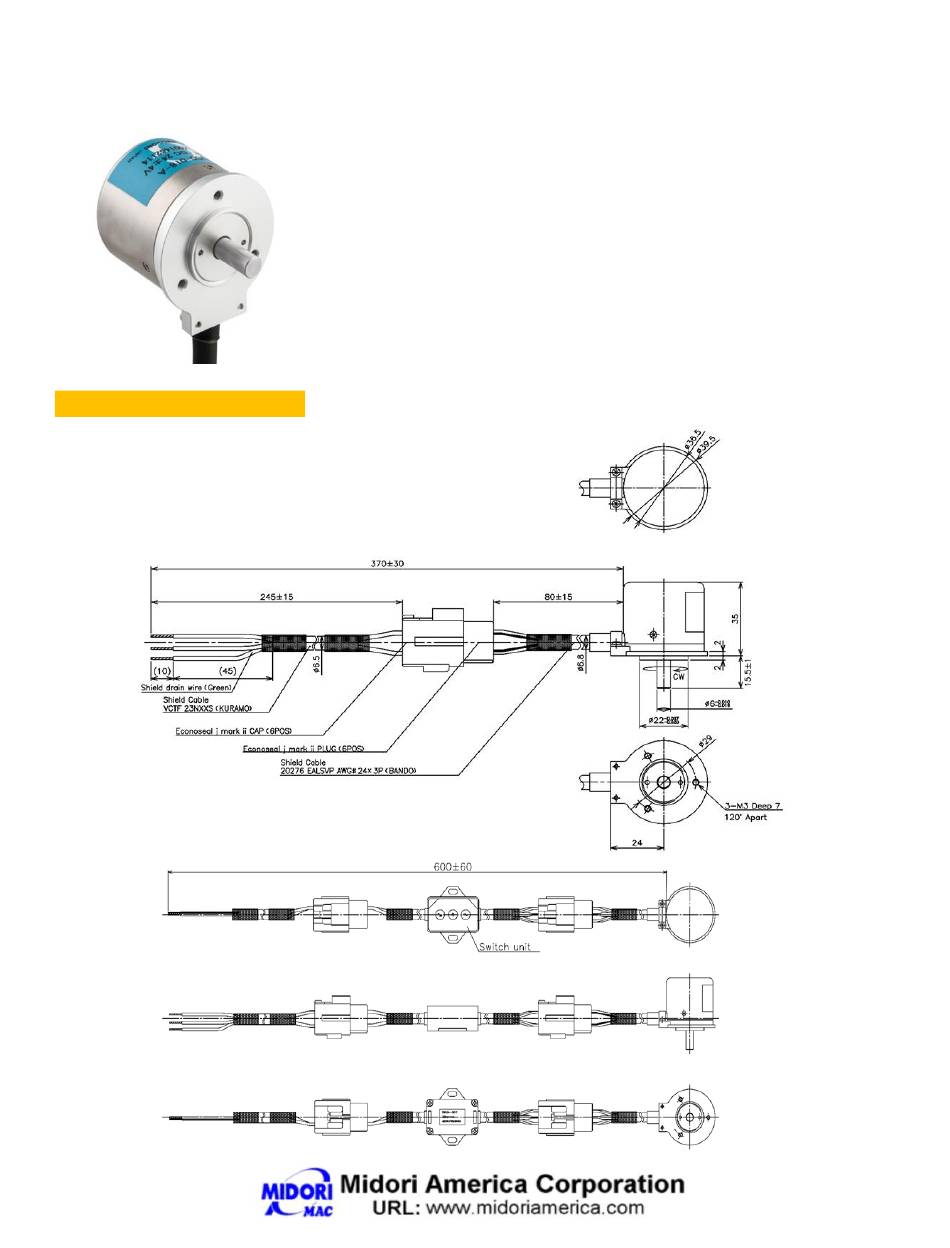

■ Dimensions (mm)
・TMR Element Contactless Angle Sensor
・Effective Electrical Travel
・Absolute Linearity
・2-wire 4-20mA Current Output
・Equipped with output adjustment functions
・IP50 / IP67
【Material】
● Housing
: Aluminum
● Shaft
: Stainless Steel
● Ball Bearing
: Stainless Steel
: 18° ~ 360°
: ±0.2%FS (FS=360°)
1
3/2020
Advertisement
Summary of Contents for MIDORI CP36U Series
- Page 1 TMR Contactless Angle Sensor CP36U Series ・TMR Element Contactless Angle Sensor ・Effective Electrical Travel : 18° ~ 360° Programmable/ Detachable Type ・Absolute Linearity : ±0.2%FS (FS=360°) ・2-wire 4-20mA Current Output ・Equipped with output adjustment functions ・IP50 / IP67 【Material】 ● Housing : Aluminum ●...
- Page 2 ■ Output Characteristics ■ Schematic ■ Mounting (mm) ■ Specifications Effective Electrical Travel 18° ~ 360° Absolute Linearity See the chart below Output Range Adjustable (@4mA±1mA, @20mA±1mA, Output Direction CW/CCW) Input Voltage 24±8VDC Load Resistance 600Ω MAX. (Vin=@DC24V) Update Cycle 1KHz±10% Output Resolution See the chart below...
- Page 3 ・Mounting plate ■ Accessories Mounting Cleats: 2pcs ■User-adjustable Functions Programable type of CP36U Series provides the following user-adjustable functions by using the setting panel. [Setting Panel] 1) Electrical Angle Range Setting 2) Zero/ Span Adjustment 3) Output Increase Direction Setting...
-
Page 4: The First Step
2) Zero/ Span Adjustment Reset the output value at zero position (4mA) and span position (20mA) within the ±1mA range. Zero Position: 4mA±1mA Span Position: 20mA±1mA Adjustment Resolution: 4.55μA (Theoretical value) 3) Output Increase Direction Setting Reset output increase direction CW or CCW. 1. -
Page 5: Setting Procedures
~ Setting Procedures~ 1) Electrical Angle Range Setting 1. Press and hold both 『 +/20 』and 『 -/4 』buttons for 3 seconds or longer to start setting mode. 2. Rotate the shaft of CP36U until the angle to be set as the start (4mA) position. Then press the 『... - Page 6 Pressing and hold 『 +/20 』,『 S 』, and『 -/4 』buttons at the same time for more than 3 seconds to cancel the setting. If none of the buttons were pressed for more than 5 minutes during the setting process, the setting mode is canceled. 2)-2 Fine adjustment of 20mA output 1.
- Page 7 3)-2 Increase output direction to CCW shaft rotation 1. Press and hold both 『 -/4 』and 『 S 』buttons for 3 seconds or longer to start setting mode. 2. Press 『 -/4 』button …Increase output direction to CCW shaft rotation. 3.
- Page 8 2. Press and hold 『 +/20 』buttons for 3 seconds or longer to revert back to the last setting. 3. Press 『 S 』button for more than 3 seconds to complete the setting. Pressing and hold 『 +/20 』,『 S 』, and『 -/4 』buttons at the same time for more than 3 seconds to cancel the setting. If none of the buttons were pressed for more than 5 minutes during the setting process, the setting mode is canceled.
