Table of Contents Introduction ... Features ... Package Contents ... Product Highlights ... Remote Control Close-up ... Application ... Getting Started ... Operations ... Set-Up ... Selecting Which Media to Use ... Viewing Photos ... Adjust Speed of Slideshow ... Adjust Slide Transition Effect ...
Browse and listen to all of your favorite music files. With Aluratek’s new (DLD) share all your digital pictures, videos, and music files. Whether it is at work or at home, let the fun begin! In addition to making sure only quality materials are used for manufacturing, Aluratek®...
Page 4
Features • Easy operation as most file formats are automatically recognized • High quality wooden frame • High quality built-in speakers • Memory included • 15” TFT true color LCD • Supports most memory card formats such as: CF / MS / SD / MMC / XD •...
Features cont. USB Host / Device Functions Any MP3 or USB mass storage device (formatted in FAT32) can be inserted into Type A USB port on the digital picture frame. It will be shown as “USB-C” on the digital picture frame. You can access all files on the device just like any other memory cards.
Page 6

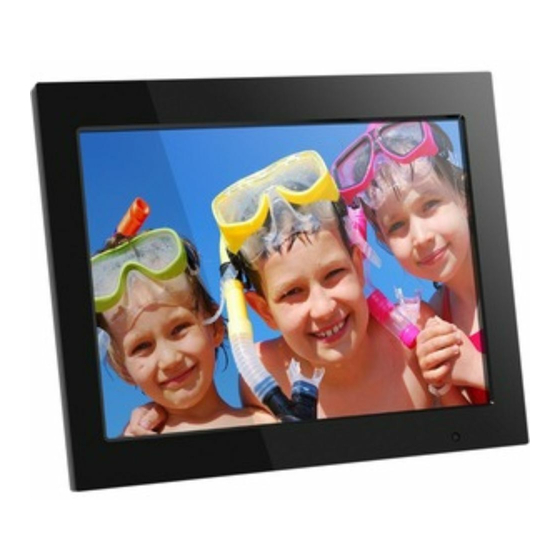

15” Digital Photo Frame Highlights 15” viewing area Quality wood frame Built-in speakers Menu selection buttons Power on/off switch underside close-up Power adapter port USB 2 port (mini-B) USB 1 port Memory card slots Frame stand Wall mount holes Remote control...
Remote Control Close-Up ON/OFF MODE SLIDE MENU SHOW ROTATE ENTER � ZOOM 1. Power On/Off 2. Volume + / Volume - 3. Mode - Select between photo, music and video modes 4. Menu - Returns to the previous menu 5. OSD - (On Screen Display) 6.
Application Connect your USB hard drive / thumb drive through the unit’s USB port Insert any of the following memory cards: Compact Flash (CF) Type I, II, Ultra, and Extreme; Secure Digital (SD); MMC; RS-MMC*; Memory - OR - Stick (MS); Memory Stick Pro; Memory Stick Duo*; Memory Stick Pro Duo*;...
Getting Started Step 1: Remove the protective film covering the LCD. Step 2: Remove the plastic insulator from the battery on the remote control. Operations Set-Up STEP 1: Plug the power adapter in then turn the power switch on. STEP 2: Please insert your memory card (SD, MMC, CF, MS or XD) at this time.
Operations cont. STEP 3, optional: With the built-in memory feature, you may also transfer pictures, movies and/or music files directly from your computer to your digital photo frame by attaching the included USB cable to your com- puters USB port. Once you connect the USB cable to the computer, you will see “PC Connected” on your photo frame.
Operations cont. Viewing Photos 1. Select the “Photo” icon on the screen. 2. Select the photo you desire by using the up and down keys on your remote control. 3. Once you have selected your photo press “Enter”. 4. You may zoom in on your photos by pressing the “Zoom” button on the remote. You may also reposition the photo using the up, down, left and right buttons on the remote once you zoom in for detailed viewing.
Operations cont. Adjust Speed of Slideshow 1. Select “Setup” and press “Enter” from the main menu. 2. Use the up or down key to select “Slideshow Time”. 3. Use the left or right key to select the time interval from 3sec to 1hour then press “Enter”. 4.
Operations cont. Adjust the Slide Transition Effect 1. Select “Setup” and press “Enter” from the main menu. 2. Use the up or down key to select “Slideshow Mode”. 3. Use the left or right key to select your desired slide transition effect then press “Enter”. 4.
Operations cont. Listen to Music 1. Select the “Music” icon on the screen. 2. A list of MP3 files stored on your media will appear on the screen. Use the up and down keys on the remote control to select the desired song then press “Enter”. You can press the “ pause / play.
Operations cont. Music Play Mode 1. Select “Setup” and press “Enter” from the main menu. 2. Use the up or down key to select “Music Repeat Mode”. 3. Use the left or right key to select “Repeat One”, “Repeat All” or “Repeat Off” then press “Enter”. 4.
Operations cont. View Videos 1. Select the “Movie” icon on the screen. 2. A list of video files stored on your media will appear on the screen. Use the up and down keys on the remote control to select the desired video then press “Enter”. You can press the “ pause / play.
Operations cont. Video Play Mode 1. Select “Setup” and press “Enter” from the main menu. 2. Use the up or down key to select “Movie Repeat Mode”. 3. Use the left or right key to select “Repeat One”, “Repeat All” or “Repeat Off” then press “Enter”. 4.
Operations cont. Copy Files Between Memory Cards / Internal Memory 1. Select the “File” icon on the screen. 2. Select the photo you want to copy using the up and down keys on your remote control and press the “ ”...
Page 19
Operations cont. Delete Files From Memory Cards / Internal Memory 1. Select the “File” icon on the screen. 2. Select the photo you want to delete using the up and down keys on your remote control and press the “ ”...
Operations cont. Change the Display Language 1. Select “Setup” and press “Enter” from the main menu. 2. Use the up or down key to select “Language”. 3. Use the left or right key to select the desired language then press “Enter”. 4.
Operations cont. Set the Date and Time 1. Select “Setup” and press “Enter” from the main menu. 2. Use the up or down key to select “Time”. 3. Use the left or right key to select what you want to change and use the up or down key to change to the correct value then press “Enter”.
Operations cont. Set the Alarm 1. Select “Setup” and press “Enter” from the main menu. 2. Use the up or down key to select “Alarm”. 3. Use the left or right key to select what you want to change and use the up or down key to change to the correct value then press “Enter”.
Technical Support If you need further assistance, please contact Aluratek support department prior to returning this device. E-mail: support@aluratek.com Web: www.aluratek.com/support Local (Irvine, CA): 949-419-6504 Toll free: 1-866-580-1978...
Radio and TV Interference Statement WARNING!!! This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications.
Warranty Aluratek warrants this product against defect in material or workmanship for 120 Days from the date of purchase. This warranty becomes invalid if the factory-supplied serial number or “warranty void” sticker has been removed or altered on the product.
Page 26
Aluratek, Inc. 12A Mauchly Irvine, CA 92618 sales@aluratek.com 949.419.6504 • office 949.419.6477 • fax...
Page 27
Cadre de Photos Numérique de 15 po Modèle ADMPF315F Manuel d’instructions mnl M10054...
Page 28
Table des matières Introduction ... Caractéristiques ... Contenu ... Caractéristiques du cadre de photo numérique ... Description de la télécommande ... Fonctionnement ... Pour vous aider à démarrer ... Fonctionnement ... Configuration ... Sélection du média à visualiser ... Visualisation de photos ... Ajustement de la vitesse du diaporama ...
Page 29
En plus de s’assurer d’utiliser que des matériaux de qualité pour la fabrication, Aluratek® s’engage aussi à offrir la meilleure satisfaction aux clients, de même que le meilleur soutien. Aluratek a pour objectif de donner forme à « l’élégance simple » pour chaque produit conçu, fabriqué et vendu.
Page 30
Caractéristiques • Facile à utiliser puisque la majorité des formats de fichiers sont reconnus automatiquement • Cadre en bois de haute qualité • Haut-parleurs intégrés de haute qualité • Carte mémoire incluse • Écran ACL TFT de 15 po • Compatible avec la majorité des cartes mémoires, comme : CF / MS / SD / MMC / XD •...
Page 31
Caractéristiques (suite) Fonctions du câble USB Host et de l’appareil Tout appareil de stockage de masse MP3 ou USB peut être inséré dans le port USB A du cadre de photo numérique. Il sera affiché sous “USB C” du cadre de photo numérique. Vous pouvez accéder à tous les fichiers de l’appareil, à...
Page 32
Caractéristiques du cadre de photos numérique de 15 po Zone d’affichage de 15 po Cadre en bois de qualité Haut-parleurs intégrés Touches de sélection par menu Touche de Mise en marche/Arrêt underside close-up Port d’adaptateur de courant Port USB 2 (mini-B) Port USB 1 Carte mémoire avec fentes Support sur pied...
Page 33
Description de la télécommande ON/OFF MODE SLIDE MENU SHOW ROTATE ENTER � ZOOM 1. Power On/Off (Marche/Arrêt) 2. Volume + / Volume - 3. Mode - Choisissez entre les fonctions photo, musique, et vidéo 4. Menu - Retourner au menu precedent 5.
Page 34
Fonctionnement Brancher votre disque dur USB/clé USB dans le port USB de l’appareil Insérer l’une des cartes mémoires suivantes: Compact Flash (CF) Type I, II, Ultra, and Extreme; Secure Digital (SD); MMC; RS-MMC*; Memory - OU - Stick (MS); Memory Stick Pro; Memory Stick Duo*; Memory Stick Pro Duo*;...
Page 35
Pour vous aider à démarrer Étape 1: Enlever le film protecteur recouvrant l’affichage ACL. Étape 2: Enlever isolant en plastique de la batterie de la télécommande. Fonctionnement Configuration Étape 1: Brancher l’adaptateur de courant, puis mettre en marche. Un témoin DEL rouge apparaîtra lorsque l’appareil sera en marche.
Page 36
Fonctionnement (suite) Étape 3, facultative: Grâce à la caractéristique de mémoire intégrée, vous pouvez aussi transférer des photos, des films ou des fichiers de musique directement de votre ordinateur vers votre cadre de photo numérique en branchant le câble USB inclus à votre port d’ordinateur USB. Après avoir branché le câble USB à...
Page 37
Fonctionnement (suite) Visualisation de photos 1. Appuyer sur la touche “Photo” de votre télécommande. 2. Sélectionner la photo désirée en utilisant les fl èches de votre télécommande. 3. Après avoir sélectionné votre photo, appuyer sur “Enter” [Entrée]. 4. Vous pouvez faire un zoom sur vos photos en appuyant sur “Zoom”. Il est aussi possible de repositionner la photo à...
Page 38
Fonctionnement (suite) Ajustement de la vitesse du diaporama 1. Appuyer sur la touche “Setup” [Configuration], puis sur “Enter” [Entrée]. 2. Utiliser les flèches Haut ou Bas pour sélectionner la “Slideshow Time”. 3. Utiliser la touche pour entrer l’heure désirée et appuyer sur “Enter” [Entrée]. 4.
Page 39
Fonctionnement (suite) Ajustement de l’effet de transition de l’image 1. Sélectionner “Setup” [Configuration] depuis le menu principal et appuyer sur “Enter” [Entrée]. 2. Sélectionner “Slideshow Mode”. 3. Utiliser les flèches Haut ou Bas pour sélectionner votre effet de transition d’image désiré, puis appuyer sur “Enter”...
Page 40
Fonctionnement (suite) Écoute de la musique 1. Sélectionner “Music” [Musique] l’icône sur l’écran. 2. Une liste de fichiers MP3 stockés sur votre lecteur apparaîtra à l’écran. Utiliser les flèches Haut et Bas de la télécommande pour sélectionner la chanson désirée, puis appuyer sur “Enter” [Entrée]. Vous pouvez appuyer “...
Page 41
Fonctionnement (suite) Mode jouer musique 1. Sélectionner “Setup” [Configuration] depuis le menu principal et appuyer sur “Enter” [Entrée]. 2. Utiliser les flèches Haut ou Bas pour sélectionner la “Music Repeat Mode”. 3. Utiliser la touche pour sélectionner la “Repeat All” ou “Repeat Off”, puis appuyer sur “Enter”...
Page 42
Fonctionnement (suite) Visualisation de vidéos 1. Sélectionner “Movie” [Film] l’icône sur l’écran. 2. Une liste de fichiers vidéo stockés sur votre lecteur apparaîtra à l’écran. Utiliser les flèches Haut et Bas de la télécommande pour sélectionner la chanson désirée, puis appuyer sur “Enter” [Entrée]. Vous pouvez appuyer “...
Page 43
Fonctionnement (suite) Mode répéta vidéo 1. Sélectionner “Setup” [Configuration] depuis le menu principal et appuyer sur “Enter” [Entrée]. 2. Utiliser les flèches Haut ou Bas pour sélectionner la “Movie Repeat Mode”. 3. Utiliser la touche pour sélectionner la “Repeat All” ou “Repeat Off”, puis appuyer sur “Enter”...
Page 44
Fonctionnement (suite) Copie de fichiers entre les cartes mémoires / mémoire interne 1. Sélectionner “File” à partir du menu. 2. Appuyez sur la touche de chaque fichier (MP3 ou photo) que vous désirez copier. Chaque fichier sélectionné doit comprendre à la fin du nom de fichier. 3.
Page 45
Fonctionnement (suite) Effacer de fichiers entre les cartes mémoires / mémoire interne 1. Sélectionner “File” à partir du menu. 2. Appuyez sur la touche de chaque fichier (MP3 ou photo) que vous désirez copier. Chaque fichier sélectionné doit comprendre à la fin du nom de fichier. 3.
Page 46
Fonctionnement (suite) Changement du langage 1. Sélectionner “Setup” [Configuration] depuis le menu principal et appuyer sur “Enter” [Entrée]. 2. Utiliser les flèches Haut ou Bas pour sélectionner la “Language”. 3. Utiliser la touche pour entrer langue désirée et appuyer sur “Enter” [Entrée]. 4.
Page 47
Fonctionnement (suite) Configuration de la date et de l’heure 1. Sélectionner “Setup” [Configuration] depuis le menu principal et appuyer sur “Enter” [Entrée]. 2. Utiliser les flèches Haut ou Bas pour sélectionner la “Time”. 3. Utiliser la touche pour entrer l’heure désirée et appuyer sur “Enter” [Entrée]. 4.
Page 48
Fonctionnement (suite) Configuration de l’alarme 1. Sélectionner “Setup” [Configuration] depuis le menu principal et appuyer sur “Enter” [Entrée]. 2. Utiliser les flèches Haut ou Bas pour sélectionner la “Alarm”. 3. Utiliser la touche pour régler l’heure en format 24H et appuyer sur “Enter” [Entrée]. 4.
Page 49
Support technique Pour toutes autres questions, veuillez communiquer avec le service de soutien Aluratek avant de retourner votre appareil. Courriel: support@aluratek.com Site Web: www.aluratek.com/support Numéro local (Irvine, CA): 949-419-6504 Numéro sans frais: 1-866-580-1978...
Page 50
Énoncé d’interférence avec la réception radio et télévisée AVERTISSEMENT!!! Cet appareil a été testé et est conforme aux limites d’un appareil numérique de Classe B, en vertu de la Section 15 des règles CFC. Ces limites ont été conçues pour assurer une protection raisonnable contre de telles interférences néfastes dans une installation résidentielle.
Page 51
à la qualité, au rendement, à la qualité marchande et à la convenance. Aluratek se réserve le droit de réviser ou de mettre à jour son produit, logiciel ou documentation sans l’obligation d’aviser tout individu ou entité.
Page 52
Aluratek, Inc. 12A Mauchly Irvine, CA 92618 sales@aluratek.com 949.419.6504 • office 949.419.6477 • fax...
