Fresco 9 Video Wall
A C - F R E S C O - C A P - 9 v i d e o wa l l p r o c e s s o r
Quick Start Guide

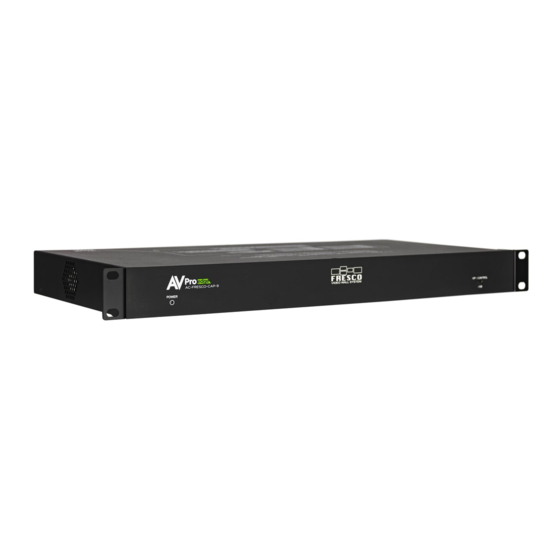

The Fresco CAP 9 is a first of its kind 4k HDR Video Wall Processor. Using the
simplistic PC Software and AVPro Edge's SHOW Technology, you can not only
input 18Gbps Signals, but display a full 4k60 (4:4:4) on each display. Making
hanging the panels the hardest thing about the CAP 9.
This Quickstart Guide will be going over:
- Installation
- Connect/Control
Installation
- Hang the panels/displays
- Plug in power to the Fresco
- Connect the source to the Fresco HDMI input
- Output 9 HDMI cables to desired displays
- Launch the Fresco PC Software and connect to the Fresco Processor
- Input measurements and select output resolution then hit generate video wall!
Fresco 9 display layout example:
Advertisement
Table of Contents
Summary of Contents for Fresco CAP 9
- Page 1 A C - F R E S C O - C A P - 9 v i d e o wa l l p r o c e s s o r Quick Start Guide The Fresco CAP 9 is a first of its kind 4k HDR Video Wall Processor. Using the simplistic PC Software and AVPro Edge’s SHOW Technology, you can not only input 18Gbps Signals, but display a full 4k60 (4:4:4) on each display.
- Page 2 • Click on the box above USB/RS-232. • For USB/RS-232, you can opt the connect via the ISP/CONTROL Micro USB port on the front of the Fresco, or alternately use the 3-pin Phoenix control connection on the back • For USB/RS-232, click the “SEARCH/CONNECT TO FRESCO” button (Magnifying Glass).
- Page 3 Right click on the desired display and select 180° Troubleshooting • Verify Power - The LED on the front of the FRESCO should be lit up RED when power is applied.Check power supply connections to device and power • Verify Connections - Check all cables are properly connected •...
