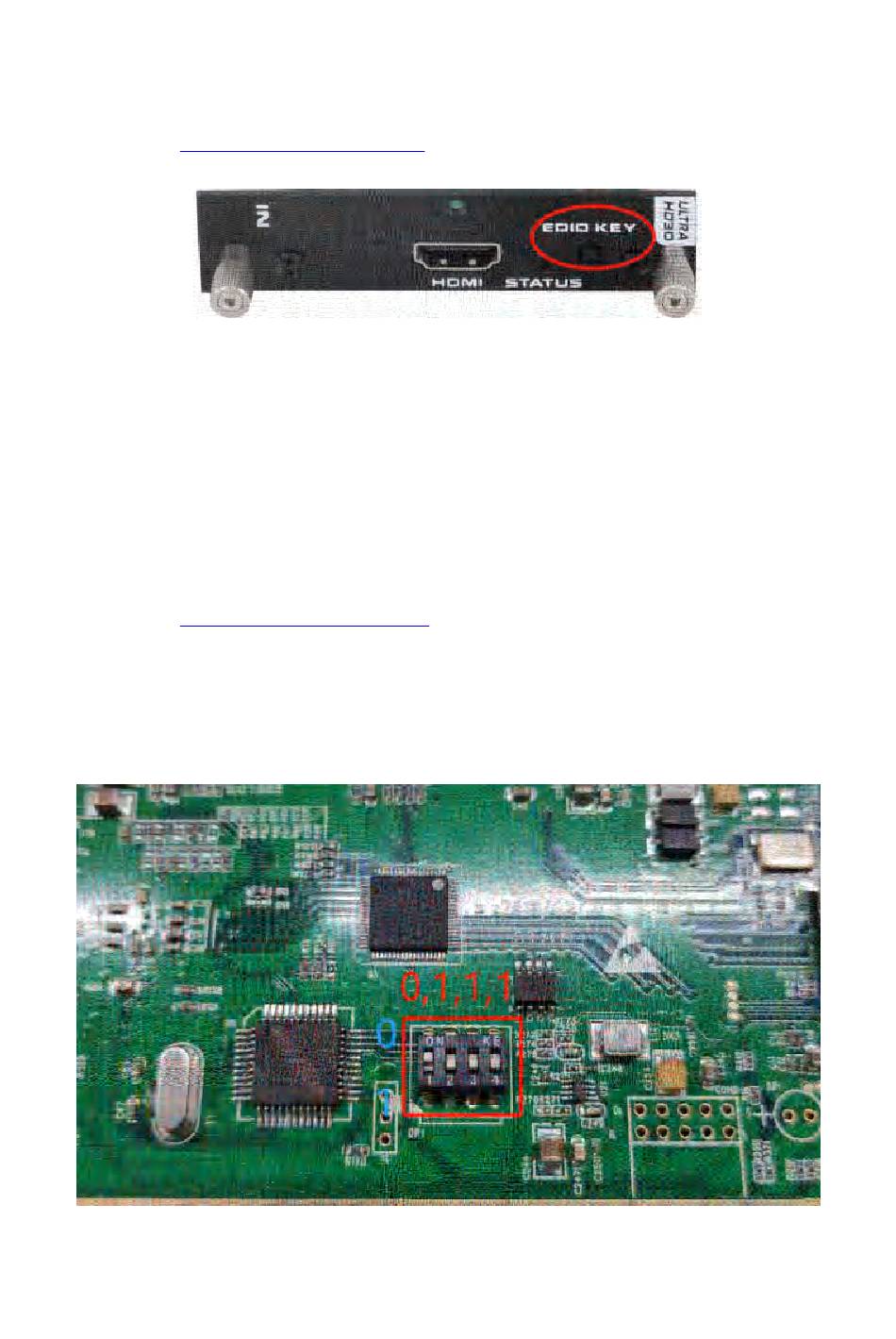

EDID Setup for the 4K30 HDMI input card

Demo video:
https://youtu.be/o7LEKeiQO30
* To copy/learn EDID from the display
Step 1: Have an HDMI cable from the display directly connected to this HDMI input port
Step 2: Press the EDID key and hold for 3 seconds, the indicator will flashing
Step 3: Press the EDID key again until the indicator turns into solid light, EDID learning finished
*Factory default EDID mode will no need to plug the display, can press and hold the EDID key to
the flashing indicator status.

EDID Setup for the 4K30 HDBaseT input card

Demo video:
https://youtu.be/kme3qkz8VdY
Step 1: No need to turn off the matrix, plug out the HDBaseT input card from the Matrix Switcher
chassis, have the 4-DIP switch(DIP1, DIP2, DIP3, DIP4) set up to position (0,1,1,1). Have an HDMI
cable connected to the display from HDMI port on the HDBaseT input card, the HDBaseT port can
keep connected to the transmitter.
Insert the HDBaseT input card back to the matrix switcher, wait for about 15 seconds
Step 2: Plug out the HDBaseT input card and have the 4-pin DIP switch(DIP1, DIP2, DIP3, DIP4) set

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WolfPack 4K30HDBASETINCARD and is the answer not in the manual?

Questions and answers

Summary of Contents for HDTV Supply WolfPack 4K30HDBASETINCARD

  • Page 1 EDID Setup for the 4K30 HDMI input card Demo video: https://youtu.be/o7LEKeiQO30 * To copy/learn EDID from the display Step 1: Have an HDMI cable from the display directly connected to this HDMI input port Step 2: Press the EDID key and hold for 3 seconds, the indicator will flashing Step 3: Press the EDID key again until the indicator turns into solid light, EDID learning finished *Factory default EDID mode will no need to plug the display, can press and hold the EDID key to the flashing indicator status.
  • Page 2 up to position (0,0,0,0). Then insert the HDBaseT input card back to the matrix and disconnect the HDMI cable. EDID setup finished. POC DIP switch on the HDBaseT card There’s a 4-pin black DIP on the HDBaseT card, it’s able to set up the POC function as 12V, 24V and POC function off.
  • Page 3 POC function OFF: Have the 4-pin DIP switch set to the middle position...
