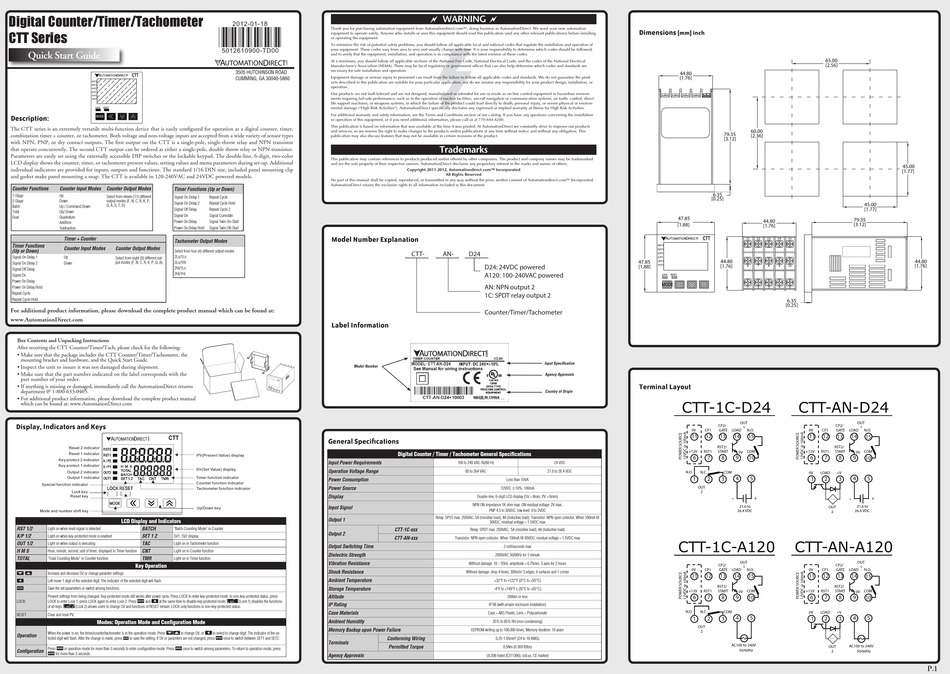

AutomationDirect CTT Series Quick Start Manual

Digital Counter/Timer/Tachometer
CTT Series
Quick Start Guide
CTT
A D
UTOMATION IRECT
RST2
RST1
K/P2
K/P1
OUT2
OUT1
LOCK RESET
Description: MODE
The CTT series is an extremely versatile multi-function device that is easily configured for operation as a digital counter, timer,
combination timer + counter, or tachometer. Both voltage and non-voltage inputs are accepted from a wide variety of sensor types
with NPN, PNP, or dry contact outputs. The first output on the CTT is a single-pole, single-throw relay and NPN transistor
that operate concurrently. The second CTT output can be ordered as either a single-pole, double throw relay or NPN transistor.
Parameters are easily set using the externally accessible DIP switches or the lockable keypad. The double-line, 6-digit, two-color
LCD display shows the counter, timer, or tachometer present values, setting values and menu parameters during set-up. Additional
individual indicators are provided for inputs, outputs and functions. The standard 1/16 DIN size, included panel mounting clip
and gasket make panel mounting a snap. The CTT is available in 120-240VAC and 24VDC powered models.
Counter Functions Counter Input Modes Counter Output Modes Timer Functions (Up or Down)
1-Stage Up
Select from eleven (11) different
Signal On Delay 1
2-Stage Down output modes (F, N, C, R, K, P,
Signal On Delay 2
Q, A, S, T, D)
Batch Up / Command Down
Signal Off Delay
Total Up/ Down
Signal On
Dual Quadrature
Power On Delay
Addition
Power On Delay Hold
Subtraction
Timer + Counter
Tachometer Output Modes
Timer Functions
Counter Input Modes Counter Output Modes
(Up or Down)
Select from four (4) different output modes
Signal On Delay 1 Up 2Lo/1Lo
Select from eight (8) different out-
Signal On Delay 2 Down put modes (F, N, C, R, K, P, Q, A) 2Lo/1Hi
2Hi/1Lo
Signal Off Delay
2Hi/1Hi
Signal On
Power On Delay
Power On Delay Hold
Repeat Cycle
Repeat Cycle Hold
For additional product information, please download the complete product manual which can be found at:
www.AutomationDirect.com
Box Contents and Unpacking Instructions
After receiving the CTT Counter/Timer/Tach, please check for the following:
• Make sure that the package includes the CTT Counter/Timer/Tachometer, the
mounting bracket and hardware, and the Quick Start Guide.
• Inspect the unit to insure it was not damaged during shipment.
• Make sure that the part number indicated on the label corresponds with the
part number of your order.
• If anything is missing or damaged, immediately call the AutomationDirect returns
department @ 1-800-633-0405.
• For additional product information, please download the complete product manual
which can be found at: www.AutomationDirect.com
Display, Indicators and Keys
CTT
A D
UTOMATION IRECT
Reset 2 indicator
Reset 1 indicator
Key protect 2 indicator
Key protect 1 indicator
Output 2 indicator
Output 1 indicator
Special function indicator
Lock key
Reset key
Mode and number shift key
LCD Display and Indicators
RST 1/2 Light on when reset signal is detected BATCH "Batch Counting Mode" in Counter
K/P 1/2 SET 1 2
Light on when key-protected mode is enabled SV1, SV2 display
OUT 1/2 Light on when output is executing TAC Light on in Tachometer function
H M S Hour, minute, second, unit of timer, displayed in Timer function CNT Light on in Counter function
TOTAL TMR
"Total Counting Mode" in Counter function Light on in Timer function
Key Operation
, . Increase and decrease SV or change paramter settings
Left move 1 digit of the selected digit. The indicator of the selected digit will flash.
´
Ä Save the set parameters or switch among functions.
Prevent settings from being changed. Key-protected mode still works after power cycle. Press LOCK to enter key-protected mode. In non-key-protected status, press
LOCK LOCK to enter Lock 1, press LOCK again to enter Lock 2. Press Ä and ´ at the same time to disable key-protected mode.
of all keys. LoC2 (Lock 2) allows users to change SV and functions of RESET remain. LOCK only functions in non-key-protected status.
RESET Clear and reset PV.
Modes: Operation Mode and Configuration Mode
When the power is on, the timer/counter/tachometer is in the operation mode. Press ,. to change SV, or
Operation
lected digit will flash. After the change is made, press Ä to save the setting. If SV or paramters are not changed, press
Press Ä in operation mode for more than 3 seconds to enter configuration mode. Press Ä once to switch among parameters. To return to operation mode, press
Configuration
Ä for more than 3 seconds.
Thank you for purchasing automation equipment from Automationdirect.com™, doing business as AutomationDirect. We want your new automation
equipment to operate safely. Anyone who installs or uses this equipment should read this publication (and any other relevant publications) before installing
or operating the equipment.
To minimize the risk of potential safety problems, you should follow all applicable local and national codes that regulate the installation and operation of
your equipment. These codes vary from area to area and usually change with time. It is your responsibility to determine which codes should be followed,
and to verify that the equipment, installation, and operation is in compliance with the latest revision of these codes.
At a minimum, you should follow all applicable sections of the National Fire Code, National Electrical Code, and the codes of the National Electrical
Manufacturer's Association (NEMA). There may be local regulatory or government offices that can also help determine which codes and standards are
necessary for safe installation and operation.
3505 HUTCHINSON ROAD
CUMMING, GA 30040-5860 Equipment damage or serious injury to personnel can result from the failure to follow all applicable codes and standards. We do not guarantee the prod-
ucts described in this publication are suitable for your particular application, nor do we assume any responsibility for your product design, installation, or
operation.
Our products are not fault-tolerant and are not designed, manufactured or intended for use or resale as on-line control equipment in hazardous environ-
ments requiring fail-safe performance, such as in the operation of nuclear facilities, aircraft navigation or communication systems, air traffic control, direct
life support machines, or weapons systems, in which the failure of the product could lead directly to death, personal injury, or severe physical or environ-
mental damage ("High Risk Activities"). AutomationDirect specifically disclaims any expressed or implied warranty of fitness for High Risk Activities.
For additional warranty and safety information, see the Terms and Conditions section of our catalog. If you have any questions concerning the installation
or operation of this equipment, or if you need additional information, please call us at 770-844-4200.
This publication is based on information that was available at the time it was printed. At AutomationDirect we constantly strive to improve our products
and services, so we reserve the right to make changes to the products and/or publications at any time without notice and without any obligation. This
publication may also discuss features that may not be available in certain revisions of the product.
This publication may contain references to products produced and/or offered by other companies. The product and company names may be trademarked
and are the sole property of their respective owners. AutomationDirect disclaims any proprietary interest in the marks and names of others.
No part of this manual shall be copied, reproduced, or transmitted in any way without the prior, written consent of Automationdirect.com™ Incorporated.
AutomationDirect retains the exclusive rights to all information included in this document.
Repeat Cycle
Repeat Cycle Hold
Repeat Cycle 2
Signal Cumulate
Signal Twin On-Start
Signal Twin Off-Start
Model Number Explanation
Label Information
Model Number
General Specifications
PV(Present Value) display
Input Power Requirements
SV(Set Value) display
Operation Voltage Range
Timer function indicator
Power Consumption
Counter function indicator
Power Source
Tachometer function indicator
Display
Input Signal
Up/Down key
Output 1
Output 2
Output Switching Time
Dielectric Strength
Vibration Resistance
Shock Resistance
Ambient Temperature
Storage Temperature
Altitude
LoC1 (Lock 1) disables the functions
IP Rating
Case Materials
Ambient Humidity
Memory Backup upon Power Failure
´ to select to change digit. The indicator of the se-
once to switch between SET1 and SET2.
Ä
Terminals
Agency Approvals
~ WARNING ~
Trademarks
Copyright 2011-2012, Automationdirect.com™ Incorporated
All Rights Reserved
CTT- AN- D24
D24: 24VDC powered
A120: 100-240VAC powered
AN: NPN output 2
1C: SPDT relay output 2
Counter/Timer/Tachometer
CTT-AN-D24
Input Specification
Agency Approvals
Country of Origin
MADE IN CHINA
Digital Counter / Timer / Tachometer General Specifications
100 to 240 VAC 50/60 Hz 24 VDC
85 to 264 VAC 21.6 to 26.4 VDC
Less than 10VA
12VDC w10%, 100mA
Double-line, 6-digit LCD display (SV = 8mm, PV = 6mm)
NPN ON impedance 1K ohm max. ON residual voltage: 2V max.
PNP 4.5 to 30VDC, low level: 0 to 2VDC
Relay: SPST max. 250VAC, 5A (resistive load), 4A (inductive load); Transistor: NPN open collector. When 100mA @
30VDC, residual voltage = 1.5VDC max
CTT-1C-xxx Relay: SPDT max. 250VAC, 5A (resistive load), 4A (inductive load)
CTT-AN-xxx
Transistor: NPN open collector. When 100mA @ 30VDC, residual voltage = 1.5VDC max
2 milliseconds max
2000VAC 50/60Hz for 1 minute
Without damage: 10 ~ 55Hz, amplitude = 0.75mm, 3 axes for 2 hours
Without damage: drop 4 times, 300m/s² 3 edges, 6 surfaces and 1 corner
+32°F to +122°F (0°C to +50°C)
-4°F to +149°F (-20°C to +65°C)
2000m or less
IP 66 (with proper enclosure installation)
Case = ABS Plastic, Lens = Polycarbonate
35% to 85% RH (non-condensing)
EEPROM writing up to 100,000 times; Memory duration: 10 years
Conforming Wiring 0.25-1.65mm² (24 to 16 AWG)
Permitted Torque
0.5Nm (0.369 ft/lbs)
UL508 listed (E311366), cULus, CE marked
Dimensions
[mm] inch
44.80
[1.76]
60.00
79.35
[2.36]
[3.12]
6.35
[0.25]
47.85
44.80
[1.88]
[1.76]
CTT
A D
UTOMATION IRECT 11 12 13 14 15
RST2
RST1
K/P2
K/P1
44.80
47.85
OUT2
[1.88] OUT1 [1.76]
6 7 8 9 10
LOCK RESET
MODE
1 2 3 4 5
6.35
[0.25]
Terminal Layout
CTT-1C-D24 CTT-AN-D24
OUT
CP2/
1
0V CP1 GATE LOAD N.O. 0V
11 12 13 14 15 11
RST2/
+12V RST1 START COM +12V
0V
6 7 8 9 10 6
N.O. N.C. COM
0V
4 5
1 2 3 1
OUT
2
- +
21.6 to
26.4 VDC
CTT-1C-A120 CTT-AN-A120
OUT
CP2/
1
0V CP1 GATE LOAD N.O. 0V
11 12 13 14 15 11
RST2/
+12V RST1 COM +12V
START 0V
6 7 8 9 10 6
N.O. N.C. COM
0V
4 5
1 2 3 1
OUT
2
AC100 to 240V
50/60Hz
65.00
[2.56]
45.00
[1.77]
45.00
[1.77]
79.35
[3.12]
44.80
[1.76]
OUT
CP2/
1
CP1 GATE LOAD N.O.
12 13 14 15
RST2/
RST1 START COM
0V
7 8 9 10
LOAD +V
4 5
2 3
-
+
Load
21.6 to
OUT
26.4 VDC
2
OUT
CP2/
1
CP1 GATE LOAD N.O.
12 13 14
15
RST2/
RST1 COM
START 0V
7 8 9 10
LOAD +V
4 5
2 3
Load
AC100 to 240V
OUT
2 50/60Hz
