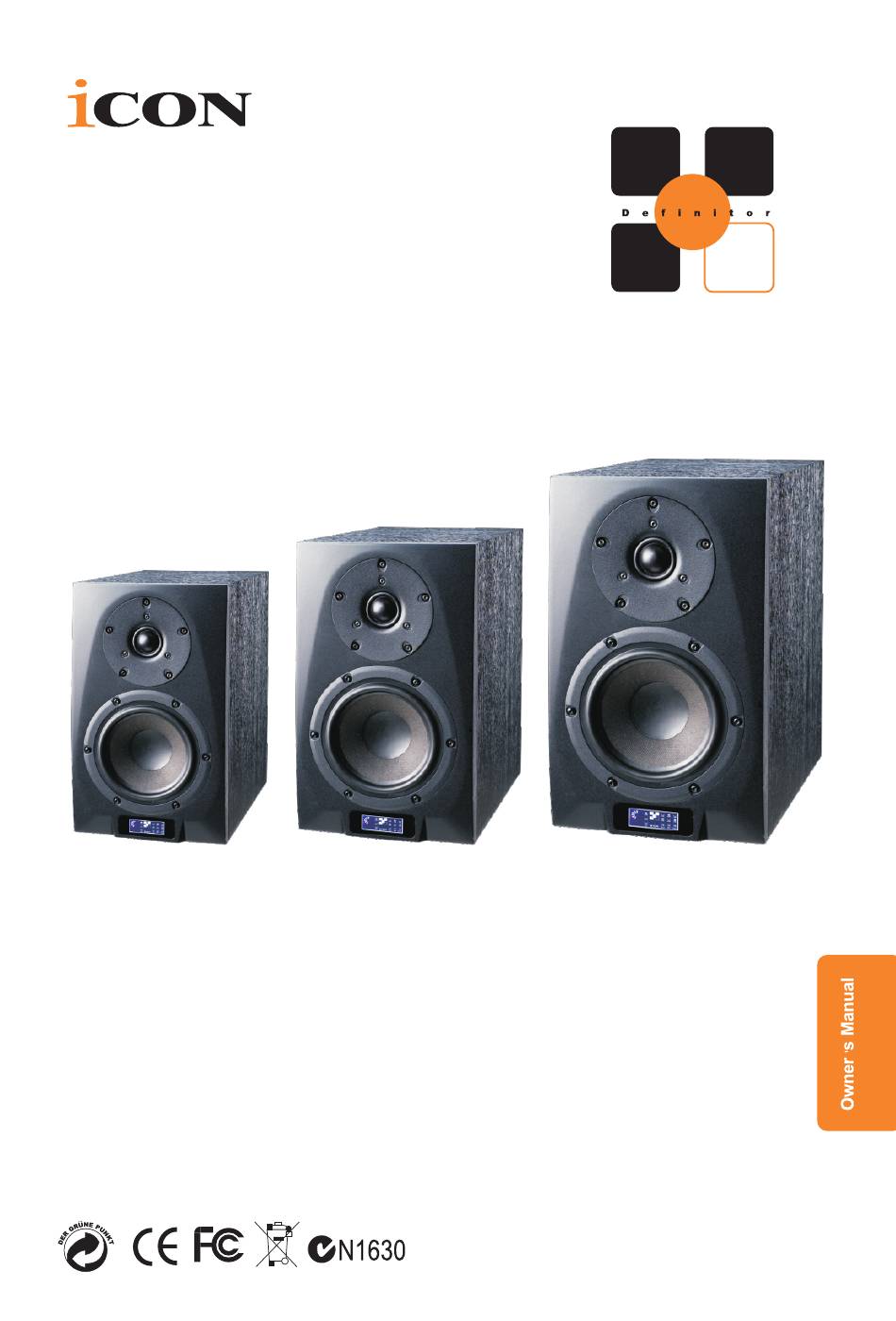

- Page 1 DT-5A air DT-6A air DT-8A air Definitor air Series 5.25"/6.5"/8.0" Active Studio Monitor System with "AirCon" wireless control module...
- Page 2 DT-air series Active Studio Monitor System Important Safety Instructions 1. Read this manual thoroughly before using this unit. 2. Keep this manual for future reference. 3. Take notice of and comply with all warnings included in the user's manual or indicated on the appliance.
-
Page 3: Table Of Contents
Contents Introduction DT-air series What's in the package Active Studio Monitor System Register your ICON ProAudio product to your personal account Features Front Panel Layout Rear Panel Layout LCD Display Layout Setting Up your DT-air Active Studio Monitor System Background on the DT-air Active Studio Monitor System... -
Page 4: Introduction
Introduction Thank you for purchasing the ICON DT-air series active studio monitor system. We sincerely trust this product will provide years of satisfactory service, but if anything is not to your complete satisfaction, we will endeavor to make things right. In these pages, you'll find a detailed description of the features of the DT-air, step-by-step instructions for its setup and use, and full specifications. -
Page 5: Register Your Icon Proaudio Product To Your Personal Account
Register your ICON ProAudio product to your personal account 1.Check serial number of your device Please go to http:// iconproaudio.com/registration or scan the QR code below. Input your device’s serial number and the other information on the “ screen. Click Submit”. -
Page 6: Features
Features DT-air series Active Studio Monitor System The ICON DT-air Active Studio Monitor System provides a smooth and accurate response which makes the system pleasant to listen to. It is equipped with ICON's innovative "AirCon" wireless control module which enables you to have ultimate wireless control on your studio settings. -
Page 7: Front Panel Layout
Features Cabinet Robust and very rigid design Diffraction optimized smooth front baffle design Extended front baffle dimensions to eliminate any vibration or sound radiation from the enclosure Premium absorbing material for long-life high-performance bass reproduction DT-air series Active Studio Monitor System AirCon Wireless Controller Module fully integrated Remote controlled volume and mute High, Mid and Low range contour control... -
Page 8: Rear Panel Layout
Rear Panel Layout DT-air series Active Studio Monitor System Hi, Mid and Low range contour control Adjusts the 3-settings (-2dB, 0dB, +2dB) of Hi, Midrange and Low response providing customized adjustment for different acoustic environment. Hi-Pass filter control Adjusts the Hi-Pass filter from Flat, 60Hz & 80Hz Volume control Controls the output level TM"... -
Page 9: Lcd Display Layout
LCD Display Layout 130Hz 140Hz 150Hz +2dB +2dB +2dB FLAT FLAT 100Hz 110Hz 120Hz +0dB +0dB +0dB 60Hz 60Hz 50Hz 60Hz 70Hz 80Hz 90Hz 1 2 3 4 DT-air series -2dB -2dB -2dB 80Hz 80Hz Active Studio Monitor System MUTE MUTE Bass Treble... -
Page 10: Setting Up Your Dt-Air Active Studio Monitor System
Setting up your DT-air Active Studio Monitor System Background on the DT-air Active Studio Monitor system The DT-air is a near filed studio monitor featuring a custom design with 5.25", 6.5" or 8.0" Nomex reinforced paper cone woofer and a 1" soft fabric dome tweeter with a low-loss ferrofluid-free magnet system. -
Page 11: Speaker Orientation
Setting up your DT-air Active Studio Monitor System Speaker Orientation The DT-air Active Studio Monitor system can be used in either the vertical or horizontal position. When using the monitors in the horizontal position, be certain to place the left and right side tweeters on the outermost sides. DT-air series Active Studio Monitor System (As shown in Figure 2). -
Page 12: Connecting Your Dt-Air Active Studio Monitor System
Connecting your DT-air Active Studio Monitor System DT-air Quick Connections Note: Before plugging in and turning on, remember the "last on, first off" rule of power amplifiers (and powered monitors). When powering up your system, be sure that all the wires are connected, turn your mixer and any other outboard gears on, and then finally turn on your DT-air DT-air series Active Studio Monitor System... -
Page 13: Cabing
Connecting your DT-air Active Studio Monitor System Cabling Unbalanced 1/4" connector DT-air series Active Studio Monitor System Balanced TRS1/4" connector Balanced TRS1/4" connector... -
Page 14: Operating Your Dt-Air Active Studio Monitor System
Operating your DT-air Active Studio Monitor System DT-air Control & Connector Panels The DT-air's rear panel is where you will make your connections for both AC power and audio signal. The rear panel also contains the controls to make adjustments to the overall volume and frequency response curve. -
Page 15: The Rear Panel: The Ins And The Outs
Operating your DT-air Active Studio Monitor System Volume control The volume control is used to adjust the overall output level of the DT-air monitor system. When operating the unit for the first time, start with the volume control turned right down. Slowly raise the volume control to reach a comfortable listening level. -
Page 16: Specifications
DT-air series Active Studio Monitor System... -
Page 17: Services
As soon as you have submitted an inquiry ticket our support team will assist you to resolve the problem with your ICON ProAudio device as soon as possible To send defective products for service Ensure the problem is not related to operation error or external system devices...
