eltima electronic 50051 Assembly Instructions Manual

Carrier systems

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Assembly instructions

eltima carrier systems

version: 11.2017

Table of Contents

Need help?

Do you have a question about the 50051 and is the answer not in the manual?

Questions and answers

Summary of Contents for eltima electronic 50051

Page 2: Part List
Profile rail 20 x 40 mm Angle bracket Lenshead screw M5 x 10 Cover cap for Small corner plate angle bracket Allen key 3 mm Cap screws M5 x 8, ¼“ screw for angle bracket t-slot nut © Copyright eltima electronic 2017...
Page 3: Table Of Contents
Inserting the T-slot nut .................. 5 Corner connections ..................6 Cross connections ..................8 Carrier system for experimental photography ..........9 Carrier system for bird photography ............15 Carrier for insect photography ..............16 Notices ....................18 © Copyright eltima electronic 2017...
Page 4: Introduction
It will help you to familiarize with the structure and operation of this system. This way you can fully exploit the benefits it offers you. Important note to avoid damage to the device or connected devices. © Copyright eltima electronic 2017...
Page 5: Assembly Technology
Figure 3. You can now move the T-slot nut to the right position by using a tool, e.g. the included Allen key. Figure 3: T-slot nut in position © Copyright eltima electronic 2017...
Page 6: Corner Connections
Then slide the bracket with the remaining hole over the second slot nut and Figure 5: also loosely tighten the second screw, see Figure 4. insertig the first screw Now push the angle to the end of the rail. Figure 4: inserting the second screw © Copyright eltima electronic 2017...
Page 7 Slide the rails to the desired position and tighten the screws, see Figure 8. Figure 8: aligning the rails Insert the cover cap by pushing it firmly into the bracket, see Figure 9. Figure 9: tightened corner connec- tion © Copyright eltima electronic 2017...
Page 8: Cross Connections
Figure 11: mounting the clamp bracket Hook the cross profile into the bracket at the right position and tighten the screw, see Figure 10. Figure 10: completed cross connection © Copyright eltima electronic 2017...

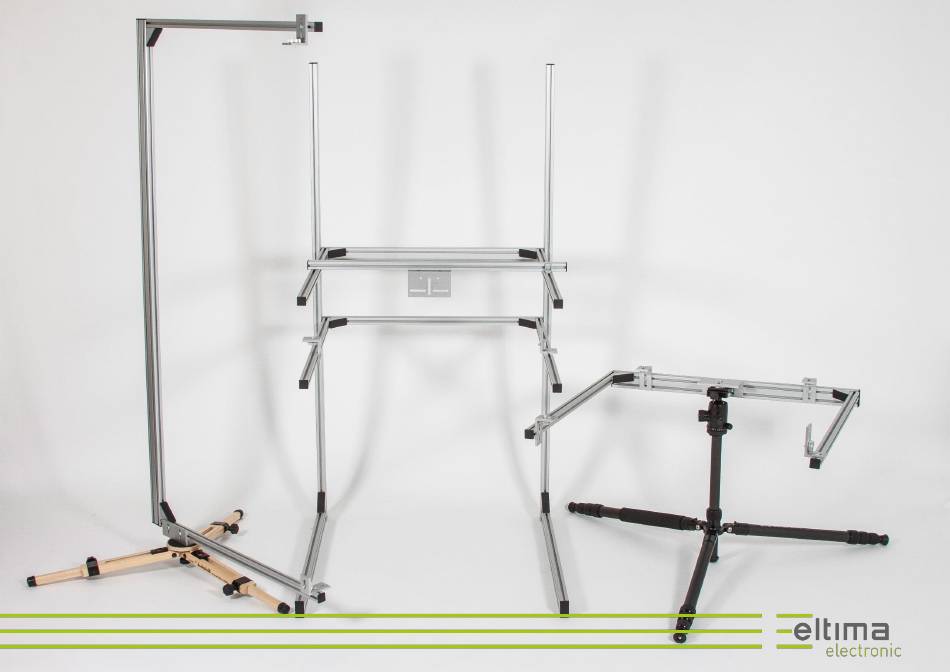

Page 9: Carrier System For Experimental Photography
20 mm, i.e. breadth of a rail. This will be the carrier for the light barrier, as far as needed. ca. 20 mm Figure 12: Aufbau des Trägers für die Lichtschranke © Copyright eltima electronic 2017...
Page 10 Figure 14. The clamp brackets must be mounted on opposite sides of the cross profile, see the left side of Figure 14. Flushly mounted side Figure 14: Befestigung des Querprofils © Copyright eltima electronic 2017...
Page 11 Leave no gap between the rails Upper side Lower side Figure 16: details for hooking in the drop dispenser frame Figure 18: position of the angle clamp brackets © Copyright eltima electronic 2017...
Page 12 Next hook in the clamp brackets of the second support frame and tighten the screws. Pay attention that the two support frames must be positioned at the same level. To check this out, use a meter rule. Figure 19: hooking in the second support frame © Copyright eltima electronic 2017...
Page 13 Mount the 2 small corner plates on the rails of the light barrier frame, like shown in Figure 22, by using T-slot nuts and lenshead screws. Figure 21: mounting of the small corner The carrier system is now ready to use. plates reflector Light barrier © Copyright eltima electronic 2017...
Page 14 Carrier system for experimental photography By loosening the screws of the clamp brackets you can reposition the frames or the corner plates to almost any position, see Figure 23. Figure 23: adjustment options of the carrier system © Copyright eltima electronic 2017...
Page 15: Carrier System For Bird Photography
The carrier system is now ready to use. Figure 26: corner plate for the Figure 24: ready to use carrier light barrier system Figure 27: carrier system mounted on an tripod with installed light barrier © Copyright eltima electronic 2017...
Page 16: Carrier For Insect Photography
Mount the two small corner plates for the reflector and the light barrier at the ends of the frame like shown in the Figure 30 and Figure 31. Figure 29: corner plate for the reflector Figure 28: corner plate for the light barrier © Copyright eltima electronic 2017...
Page 17 Figure 33. Figure 33: handheld usage The carrier system can be used monted on a tripod and installed in front of bee or wasp nests, like in Figure 34. Figure 32: usage on a tripod © Copyright eltima electronic 2017...

This manual is also suitable for:

50050 50052
