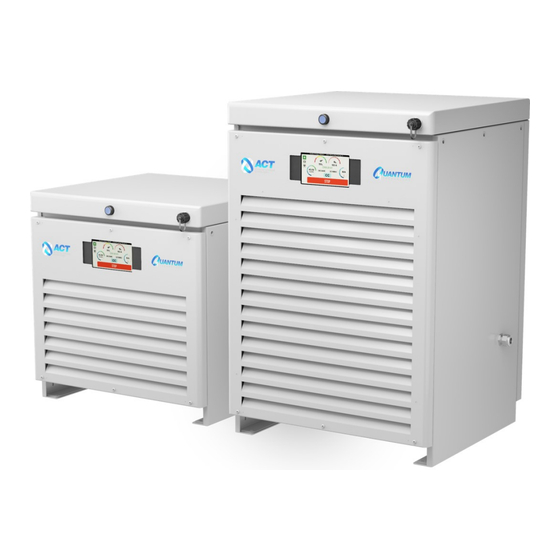

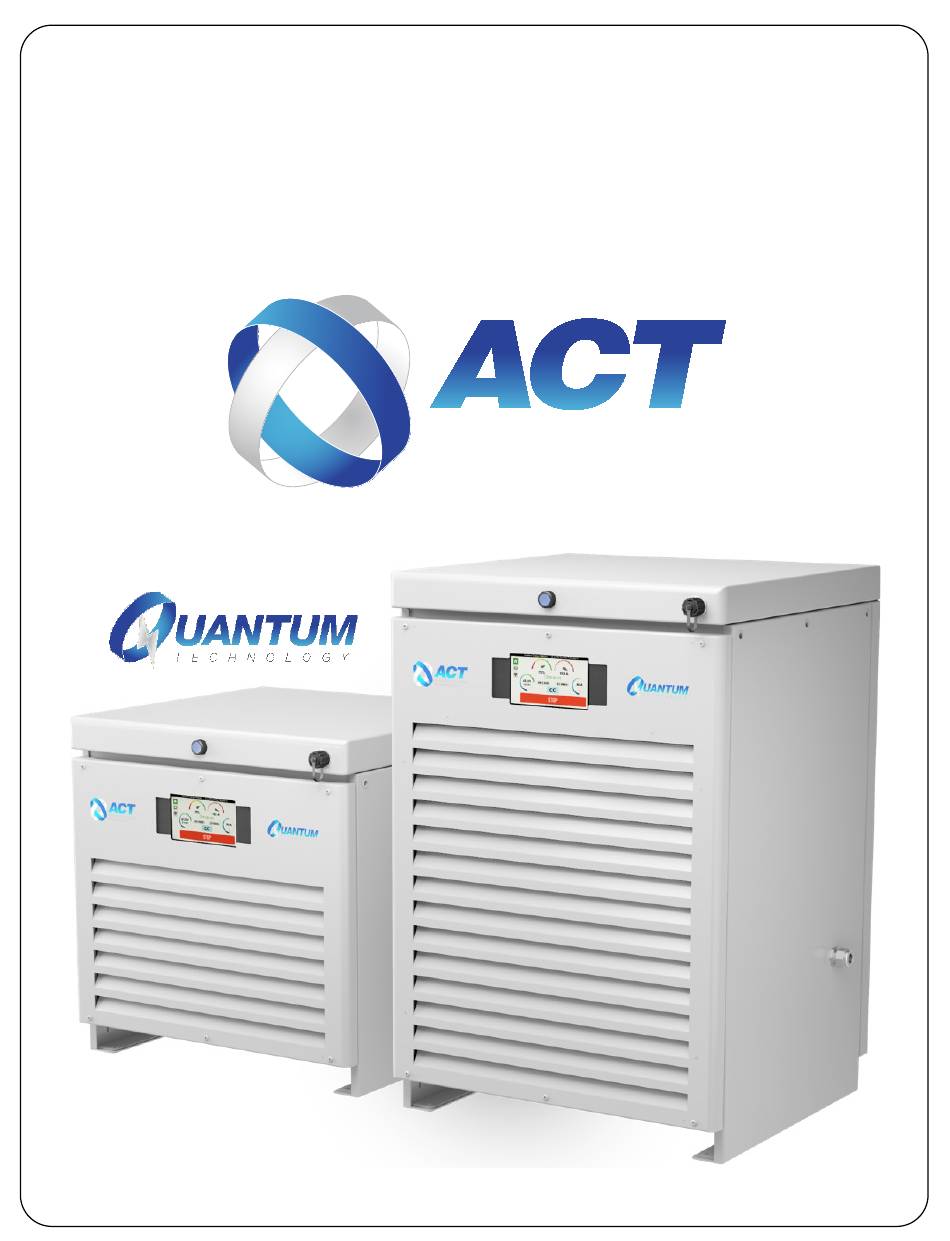

- Page 1 Quantum GSE Maintenance Manual ADVANCED CHARGING TECHNOLOGIES 710-00037.1...
- Page 2 © 2020 Advanced Charging Technologies. All rights reserved Contact Information: Advanced Charging Technologies 17260 Newhope Street Fountain Valley, CA 92708 http://www.act-chargers.com/ Main 877-228-5922 Sales 877-228-5922 Service 877-228-5922 service@act-chargers.com 710-00037.1...
- Page 3 UANTUM HARGER AINTENANCE The Quantum charger streamlined design emphasizes ease of maintenance. Below is the list of the maintenance procedures: 1) Air Filter Regularly inspect air filters and clean or replace as necessary. Location and environmental conditions must be taken into account when determining the frequency that the filter is cleaned or replaced. In the outdoor environment, the filters should be checked at least quarterly .
- Page 4 3) Battery Cables inspection Regularly inspect the DC cables for wear. If the DC cables or connectors become worn or damaged with signs of cracks or tears, they should be immediately replaced by qualified personnel with a cable of the same rating.
- Page 5 Check the torque lines inside the charger. If needed, make sure the torque is around 21 Ft-Lbs. (+0 /- 10%) 710-00037.1...
- Page 6 4) Gasket inspection Check the gasket for ailments, issues or tears. The gasket needs to have sponginess to it and should flex back to the original shape after pressure is applied. 5) Screen Cover inspection The plastic front screen cover needs to be inspected to ensure it is not brittle. If a screen protector is used, check the screen protector as well.
- Page 7 ACT S ERVICE ONTACT INFORMATION If you experience any problems AFTER performing the necessary maintenance above, please call ACT Customer Service (877) 228-5922. 710-00037.1...
