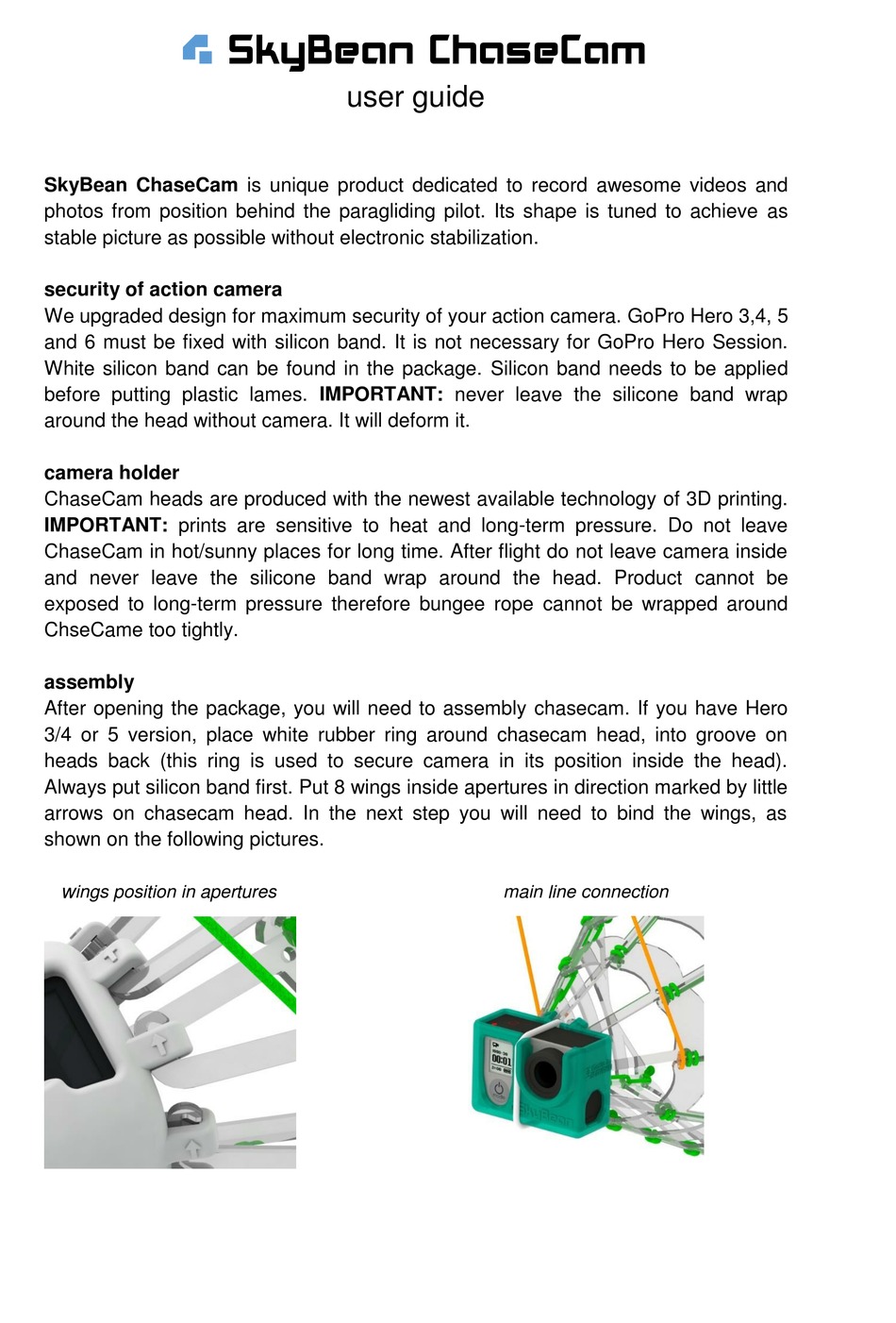

SkyBean ChaseCam User Manual

½ SkyBean ChaseCam
user guide
SkyBean ChaseCam is unique product dedicated to record awesome videos and
photos from position behind the paragliding pilot. Its shape is tuned to achieve as
stable picture as possible without electronic stabilization.

security of action camera

We upgraded design for maximum security of your action camera. GoPro Hero 3,4, 5
and 6 must be fixed with silicon band. It is not necessary for GoPro Hero Session.
White silicon band can be found in the package. Silicon band needs to be applied
before putting plastic lames. IMPORTANT: never leave the silicone band wrap
around the head without camera. It will deform it.

camera holder

ChaseCam heads are produced with the newest available technology of 3D printing.
IMPORTANT: prints are sensitive to heat and long-term pressure. Do not leave
ChaseCam in hot/sunny places for long time. After flight do not leave camera inside
and never leave the silicone band wrap around the head. Product cannot be
exposed to long-term pressure therefore bungee rope cannot be wrapped around
ChseCame too tightly.

assembly

After opening the package, you will need to assembly chasecam. If you have Hero
3/4 or 5 version, place white rubber ring around chasecam head, into groove on
heads back (this ring is used to secure camera in its position inside the head).
Always put silicon band first. Put 8 wings inside apertures in direction marked by little
arrows on chasecam head. In the next step you will need to bind the wings, as
shown on the following pictures.
w
ings position in apertures main line connection
