Summary of Contents for FrightProps HB-1ABV

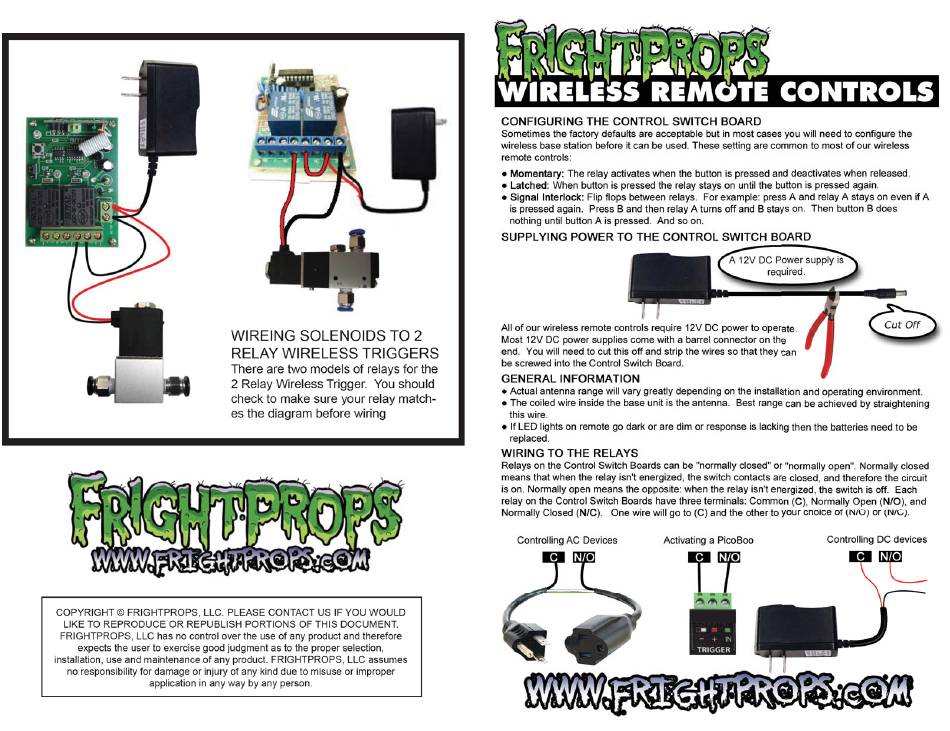

- Page 2 JUMPER PAIRING BUTTON HOW TO PROGRAM THE 1-RELAY WIRELESS TRIGGER With power connected to the relay board hold the small white button on the board down until the led turns on and turns off. Keep holding it down until it flashes. 1 flash will put it in momentary mode.
- Page 3 PAIRING BUTTON + DC NO COM NO COM...
- Page 4 Pairing the Remote To pair the remote, press the button on the relay board and then press any button on the remote. SETTING THE RELAY FUNCTION USING THE JUMPERS You can set the functions of the relays by adjusting the jumper on the circuit board. Th e following are the settings for each jumper position.
