Summary of Contents for Medical Technologies XL-F02

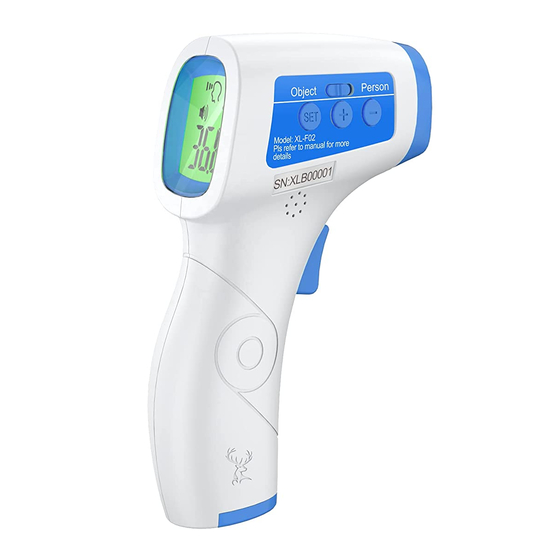

- Page 1 Instruction Manual Medical Infrared Thermometer Specification and Model: XL-F02 Please read the manual before use Period of use: three years Version: A / 0...
-
Page 2: Table Of Contents
Content Quick Start Guide..............................2 Scope of Application ............................2 Composition ................................2 Part Names ................................2 Technical Parameters ............................3 Proper Use ................................4 1. Preventive Inspection: .............................4 2. Unpacking: .................................4 3. Battery Installation or Replacement ......................4 4. Operation steps ..............................5 4.1 measurement operation ..........................5 4.2. -
Page 3: Quick Start Guide
Quick Start Guide (1) Install the battery; (2) Put the new battery in correctly before the first use, and then start the body temperature check; (3) When used, the front end of the thermometer is aligned to the forehead, with a distance of 5- 10cm. -
Page 4: Technical Parameters
Technical Parameters Product Name Medical Infrared Thermometer Model XL-F02 Specification Measurement Range 32.0 ℃ ~ 42.9 ℃ Maximum The maximum allowable error of thermometer is ± 0.2 ℃ within 35.0 ℃... -
Page 5: Proper Use
mixed with air or with oxygen or nitrous oxide: equipment that cannot be used when using flammable anesthetic gas mixed with air or with oxygen or nitrous oxide. 1.5 Classified by operation mode: continuous operation equipment. 1.6 Power supply: d.c.3v (two AAA batteries). 1.7 Whether the equipment has the protective application against defibrillation discharge effect: No. -
Page 6: Operation Steps
If the instrument uses 3V manganese or alkaline dry cell (2 AAA batteries), when LCD displays “ ”, it indicates that the battery has been in a low power state. The battery must be replaced as soon as possible to ensure the accuracy of the measurement. Meanwhile, after the replacement of components (such as batteries) and the thermometer reaches the end of its equipment life, please handle it according to local laws and regulations. - Page 7 (3) When there is no intended operation after the test, the thermometer will be turned off automatically within 20 seconds. 1. Please read this manual carefully before thermometer use. 2. The ambient temperature of the product use is from 16 ℃ to 35 ℃, and the best temperature is 25 ℃.
-
Page 8: Recording(Memorizing) And Reading Function
4.2. Recording (Memorizing) and Reading Function 1: This machine has 32 sets of recoded (Memorized) temperatures. 2: Long press and hold the “—” button for 2 seconds in standby mode to start to check the recoded (Memorized) temperatures. 3: Short press “—” button to switch between Celsius and Wattage. 4.3 Mode Selection 1: In the test mode, press “... -
Page 9: Contraindications, Precautions, Warnings And Suggestive Instructions
display higher than 42.9 ℃. In the body temperature mode, when the operating range is beyond 16 ℃ ~ 35 ℃, the thermometer will display “Err” Wrong presentation for error alarm even if the temperature display is between 32.0 ℃ ~ 42.9 ℃. Contraindications, Precautions, Warnings and Suggestive Instructions 1. -
Page 10: Daily Maintenance, Cleaning, Maintenance And Maintenance Interval
Daily Maintenance, Cleaning, Maintenance and Maintenance Interval Cleaning and Maintenance (1) External Dirt: wipe the dirt with a clean soft cloth, or wipe it with a cotton swab stained with medical alcohol, which can also exert the function of sterilization and disinfection. Pay attention to water or alcohol, which should not be too much in case of that water or alcohol will flow into the product and cause damage. -
Page 11: Parts List
Assembly Plastic ○ ○ ○ ○ ○ ○ Metal Casing ○ ○ ○ ○ ○ ○ This table is compiled in accordance with SJ / t11364. ○: indicates the content of the toxic and harmful substance in all materials of the parts. -
Page 12: Clinical Accuracy
The optimum measurement distance is between 5cm to Far distance for measurement 10cm. Meanwhile, do not touch the skin with a thermometer. Clinical Accuracy The normal value of body temperature is among a range, and the body temperature measured in different parts will be different. Refer to the following table for specific differences: Measuring body part Normal Temperature Deviation... -
Page 13: Electromagnetic Compatibility (Emc) Related Information
Other Guideline and Statement from Manufacturer – Electromagnetic Emission Xl-F02 medical infrared thermometer is expected to be used in the following specified electromagnetic environment. The buyer or user of XL-F02 medical infrared thermometer shall guarantee that it is used in this electromagnetic environment:... - Page 14 Guideline and Statement from Manufacturer – Anti-Electromagnetic Interference XL-F 02 medical infrared thermometer is expected to be used in the following specified electromagnetic environment. The buyer or user of XL-F 02 medical infrared thermometer shall guarantee that it is used in this electromagnetic environment: Anti-interference IEC 60601 Coincidence...
- Page 15 Guideline and Statement from Manufacturer – Anti-Electromagnetic Interference XL-F 02 medical infrared thermometer is expected to be used in the following specified electromagnetic environment. The buyer or user of XL-F 02 medical infrared thermometer shall guarantee that it is used in this electromagnetic environment: Electromagnetic environment Anti-interference...
- Page 16 environment of fixed RF transmitter, the survey of electromagnetic field should be considered. If the field strength of the place where the medical infrared thermometer is located is higher than the applicable RF compliance level, the medical infrared thermometer shall be observed to verify its normal operation. If abnormal performance is observed, additional measures may be necessary, such as readjusting the direction or position of this medical infrared thermometer.
- Page 17 Warranty Card Thank you for ordering products of Xionglu Medical Technology Co., Ltd. Our company holds strict quality control procedures for all products. To ensure your rights and interests, please keep this manual and warranty card properly. This product enjoys one year for free warranty service from the date of ordering (two years for paid maintenance, material and labor fees as appropriate).
- Page 18 Registered person / manufacturer: Dongguan xionglu Medical Technology Co., Ltd. Address: Room 301, floor 3, No.1, Shangnan Road, 5th Industrial Zone, Nanzha community, Humen Town, Dongguan City, Guangdong Province, P.R. China Manufacturer address: Room 301, floor 3, No.1, Shangnan Road, 5th Industrial Zone, Nanzha community, Humen Town, Dongguan City, Guangdong Province, P.R.
