User Manual

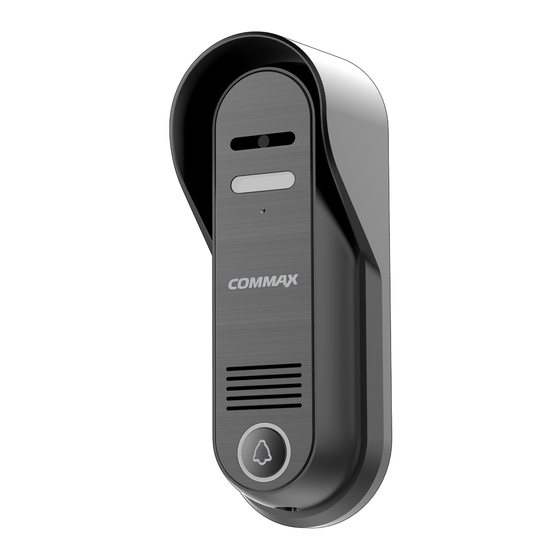

Door Camera DRC-4CPN3
• Thank you for purchasing COMMAX products.
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Commax DRC-4CPN3
Summary of Contents for Commax DRC-4CPN3
- Page 1 User Manual Door Camera DRC-4CPN3 • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. • The company is not responsible for any safety accidents caused by abnormal operation of the product.
- Page 2 Contens 1. The names of Each Part Front side Back side 1. The names of Each Part 2. Wiring & Installation 3. Package 4. Specification ⑥ Mounting Holes ① Camera ⑦ Monitor cable ② LED Lamp ⑧ Door release cable ③...
- Page 3 2. Wiring & Installation 1. Align holes on the wall where the unit is to be installed with mounting brackets hole and secure. FIG-1 : Install the camera at a 30 ˚angle to the left (install the bracket in reverse to angle 30 ˚to the right) FIG-2 : Install the camera at a perpendicular angle to the front...
- Page 4 [FIG-1] [FIG-2]...
- Page 5 ● Please refer to the below images regarding ● You can adjust speaker volume using driver as shown below. [FIG-4] the installation position of the product. 55˚ 60cm [FIG-4]...
- Page 6 3.Package...
- Page 7 4. Specification Model DRC-4CPN3 specification Image Sensor CMOS 1/3" Sensor Resolution 0.52 megapixel Power source 12V (supplied from the Monitor) Wiring(household) Polar 4 wires Call mode Duplex Horizontal angle 48.6° Camera angle Vertical angle 37.5° Format NTSC or PAL STANDARD 15.734 ㎑...
- Page 8 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133 Web site : www.commax.com Printed In Korea / 2016.04.105...
