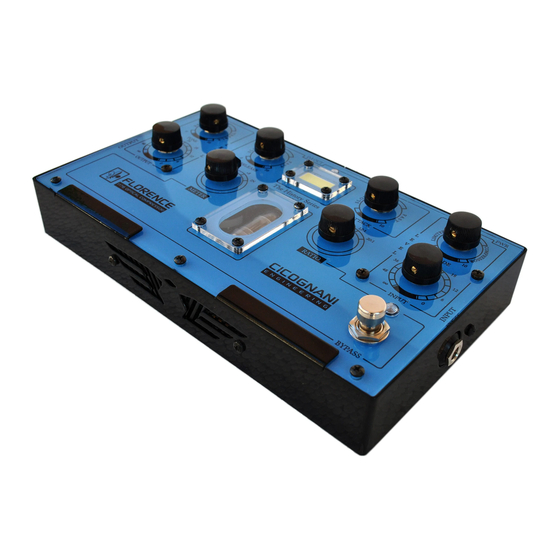

- Page 1 1176 OPTICAL COMPRESSOR User’s manual...
- Page 2 * Increases the clean threshold of the output volume. Florence is a compressor that does its job without altering the tone of the sound. To do this we used the highest quality Jfet IC components combined with a sophisticated design. The new generations of opto couplers are more faster and for this reason the signal enjoys excellent benefits.
- Page 3 The Guru’s advice 1) Connect the main power to 12Vdc (min 350mA). Make sure the power supply is negative tip. 2) It is always better if the power supply current is higher; this reduces the preheating time of the valve. 3) Connect the “Output”...
- Page 4 Controls:...
- Page 5 1) Bypass On/on switch Balanced/unbalanced DI. connection 2) Input signal 3) Output signal The connection cable must be constructed 4) 12AU7/ECC82 tube following the instructions below. 5) Input level 6) 4 ratio modality 7) 3 view modes of the “VU” 8) Outpul level 9) Compressor to Limiter balance 10) Signal attack speed...
-
Page 6: Technical Details
Technical details: POWER IN 12VDC (NEGATIVE TIP) BYPASS FUNCTION: BUFFERED CONSUMPTION FROM 350 TO MAX 500mA LINEARITY 20-40000Hz S/N RATIO 87db @ MAX LIM.VALUE COMPRESSION RATE 4:1-8:1-12:1-20:1 INPUT IMPEDANCE < 1M OHM ATTACK TIME FROM 800 TO 80mS MAX INPUT SIGNAL 1.5VPP RELEASE TIME FROM 1.5 TO 90mS... - Page 7 Schematic: PREAMP SIGNAL STAGE...
-
Page 8: Power Stage
POWER STAGE VU STAGE PANEL LIGHT ALL RIGHT RESERVED. THE CIRCUIT IS FOR EVALUATION PURPOSES ONLY. -
Page 9: Useful Information
FLORENCE is a high quality opto coupler compressor, limiter, sustainer optimized for live and studio recording and can be used with guitar, acoustic guitar, bass, drums and DAW. Simple and intuitive to use FLORENCE offers great performance and three modality of use:... - Page 10 Compressor/Limiter/Sustainer: The function of compressor is to automatically reduce the level of peaks signal so that the overall dynamic range turn out better. Compression or limiting enables even the quietest sections to be made significantly louder while the overall peak level of the material is increases only minimally. In the digital age, the compressor offers great benefits and is especially important in recordings.
- Page 11 Setting: SOFT ENHANCING: FLORENCE will enhance your ACOUSTIC GUITAR: A perfect dynamic control to soft touch and limit when your attack notes harder. touch. Using this setting “Live” or with your DAW SUSTAINER: A good sustainer can be obtained by adjusting the long release time.
- Page 12 LIMITER: You can use the "Limiter" function to hardly NOTE: cut excess signal peaks. The volume control in this These settings are indicative because their case becomes the “Threshold” role. effectiveness depends on the quantity of the input signal and the type of connection to the other devices.
-
Page 13: Terms Of Warranty
Responsibility of Cicognani Engineering for any defective product is limited to repair or replacement of the product at our discretion.The Cicognani Engineering not be liable for damages resulting from loss of use of the product, lost time operation interrupted by non-use of the product, loss of business or any other damages or incidental, consequential or otherwise;... - Page 14 Notes: ……………………………………………………………………………… ……………………………………………………………………………… ……………………………………………………………………………… ……………………………………………………………………………… ……………………………………………………………………………… ……………………………………………………………………………… ……………………………………………………………………………… ……………………………………………………………………………… ……………………………………………………………………………… ……………………………………………………………………………… ……………………………………………………………………………… ……………………………………………………………………………… ……………………………………………………………………………… ……………………………………………………………………………… ………………………………………………………………………………...
- Page 15 Cicognani Engineering reserves the right to change technical features or look of his products in any moment without notice. This product is pursuant to European Directives 89/366EEC Cicognani Engineering Via Faentina, 44 - 48013 Brisighella (RA) Italy Internet: www.cicognani.eu Mail: sales@cicognani.eu ...
