Summary of Contents for deconta Safety-Cabinet
- Page 1 Instruction manual Safety-Cabinet Manufacturer: deconta GmbH Im Geer 20, 46419 Isselburg Type-No.: Serial-No.: ..
-
Page 2: Table Of Contents
Instruction manual Safety-Cabinet Table of contents on page Basic safety advices Technical description Filter description/ classification Technical data Initial operation Set up Initial operation Filter control / Filter change Change of 1. HEPA-filter stage Change of 2. HEPA-filter stage Circuit diagram... -
Page 3: Basic Safety Advices
The guide book has to be at hand for all the staff always. deconta has to engage you as the user to follow the guide book and to employ this engineered technology only in accordance with the regulations and not in an inappropriate way! In case of non-observance, deconta assumes no liability. -
Page 4: Technical Description

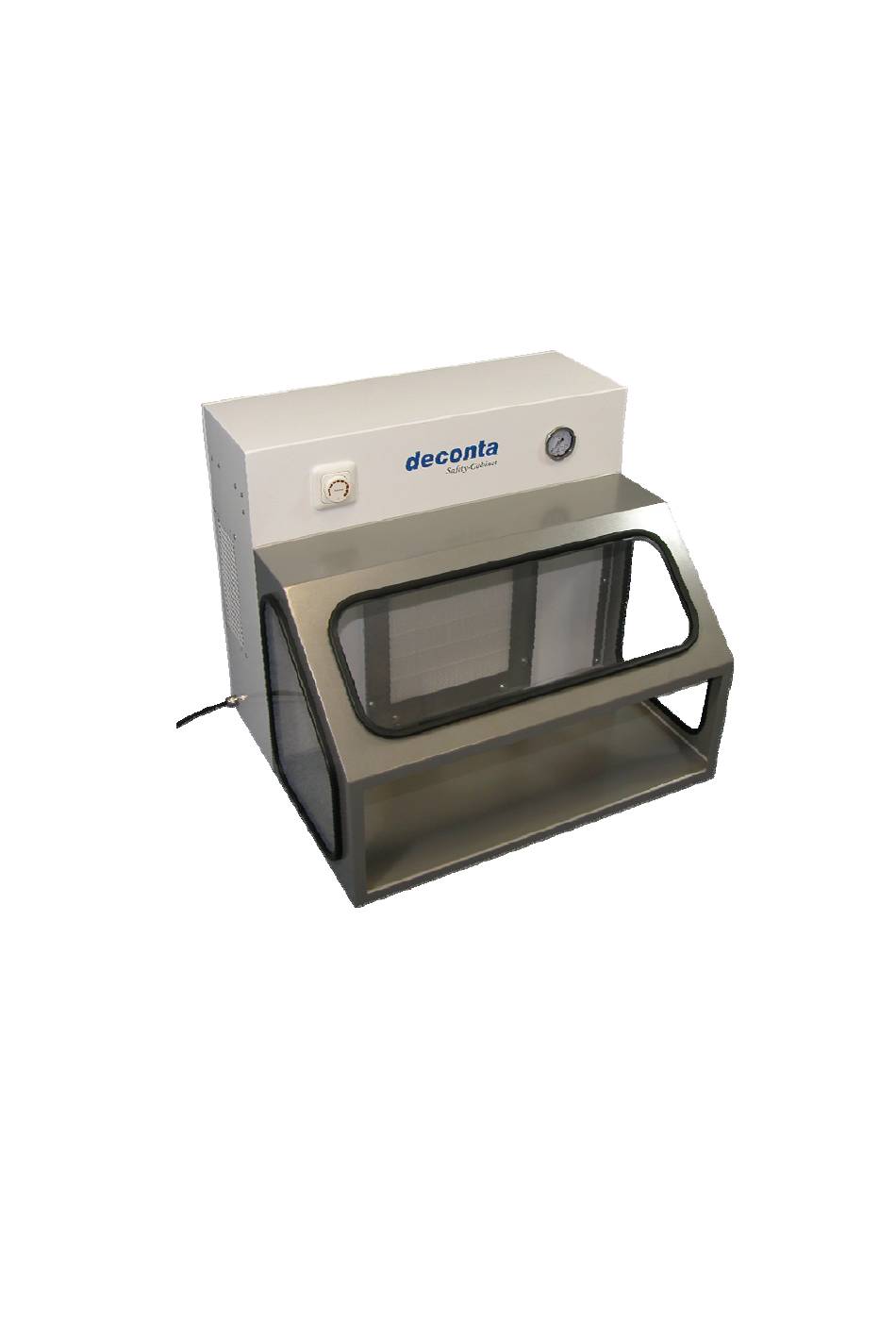

Safety-Cabinet 2 Technical description The Safety-Cabinet is an exhaust unit in which asbestos samples may be worked on. The unit is steplessly adjustable inbetween 250 und 400 m³/h. The air is sucted through HEPA-filtration and blown out sideways or deduced through an optional hose connection. -
Page 5: Technical Data
4 Initial operation Do not operate the device, in case of visual damage or problems with the implementation. Please contact the deconta GmbH at your earliest convenience. 4.1 Set up Always locate the machine on a solid and even surface that has adequate strength to support the weight of the machine. -
Page 6: Initial Operation
Power control Cover plate Connect to power supply Lighting in Safety-Cabinet is switched on automatically Turn On-/Off- Switch and set to the lowest level Only now remove cover plate The function of the device is displayed on the manometer... -
Page 7: Change Of 1. Hepa-Filter Stage
Control and clean sealing surfaces of device Insert new main filter mount clamping frame Important: Treat HEPA-filter with care, for damages can negate effectiveness of filtration. The HEPA-filter is factory equipped with a handle protection by deconta to prevent filter damages. Seite 7... -
Page 8: Change Of 2. Hepa-Filter Stage
Mount clamping frame Assemble 1.HEPA-filter stage as described under 5.1 Important: Treat HEPA-filter with care, for damages can negate effectiveness of filtration. The HEPA-filter is factory equipped with a handle protection by deconta to prevent filter damages. Seite 8... -
Page 9: Circuit Diagram
Instruction manual Safety-Cabinet 6 Circuit diagram Seite 9... -
Page 10: Declaration Of Conformity
IEC 60335-2-69 W.Weßling Isselburg, 13.02.2012 The copyright of this instruction manual remains with deconta. This manual is intended for assembly, operation and maintenance personnel. It contains instructions and drafts of technical nature which may neither be distributed nor used in any unauthorised way for competitive purposes or passed on to others.
