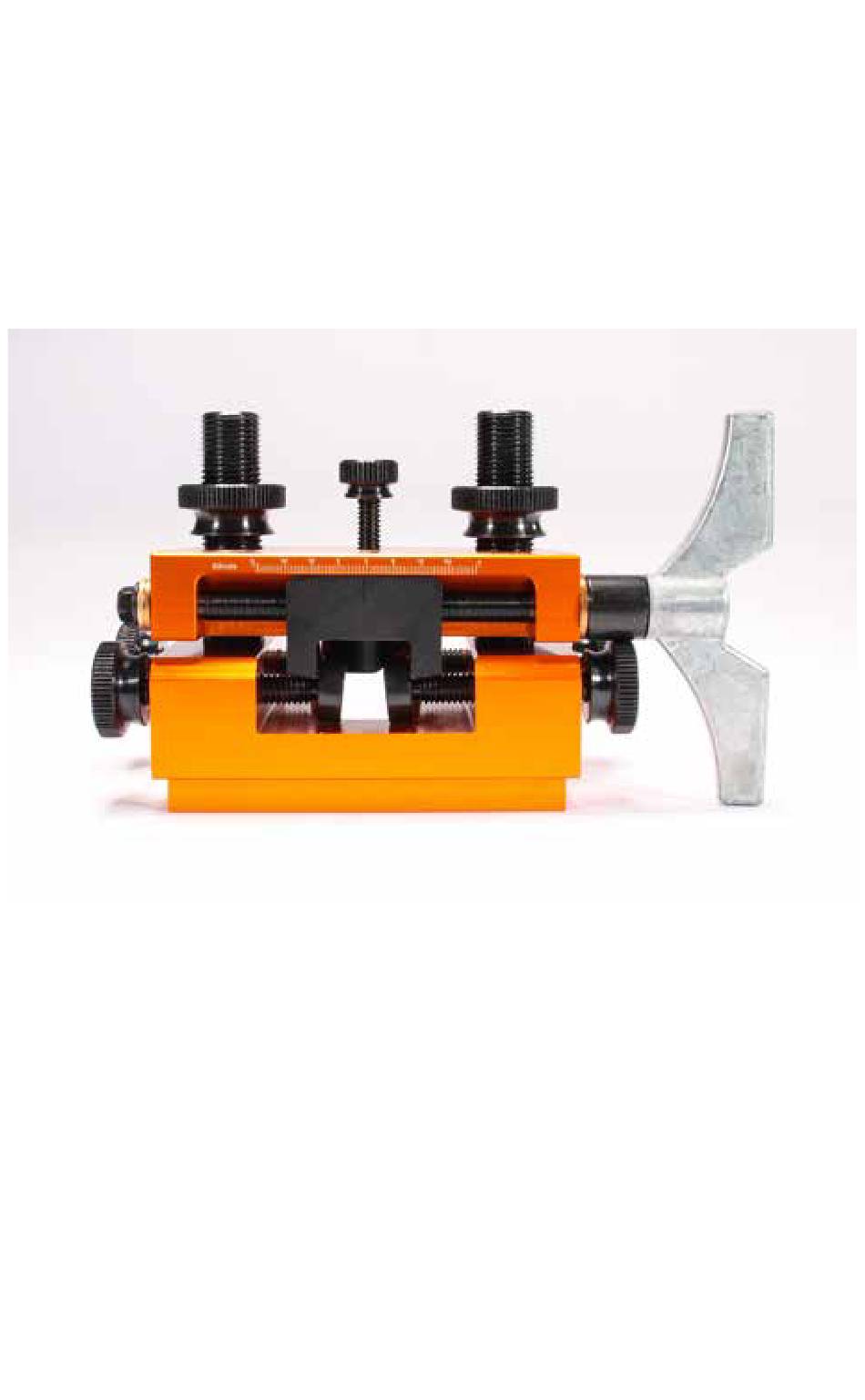

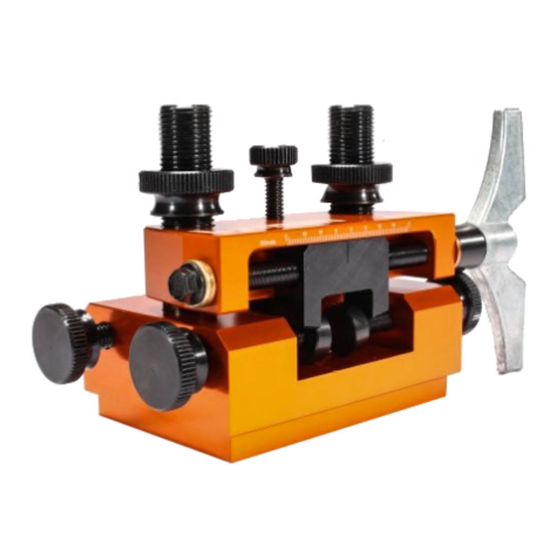

Handgun sight tool

Advertisement

Lyman
®
AccuSight
TM
Handgun Sight Tool
Instruction Manual
SAVE THESE INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AccuSight 7031287 and is the answer not in the manual?

Questions and answers

Summary of Contents for Lyman AccuSight 7031287

  • Page 1 Lyman ® AccuSight Handgun Sight Tool Instruction Manual SAVE THESE INSTRUCTIONS...
  • Page 2 Important Information Read First • Attempting to replace or adjust handgun sights can be difficult. • If you are not comfortable using the Lyman AccuSight Handgun Sight Tool to replace or adjust your handgun sights, you should have a qualified gunsmith perform these operations.
  • Page 3 Retaining screw. Bronze thrust washer goes on first, followed by steel washer. Tighten Retaining screw. Section I Setting up and using the Lyman AccuSight Handgun Sight Tool for Non-1911 Type Pistols 1. Remove slide from pistol. Remove recoil spring/guide rod and barrel.
  • Page 4 4. Place the slide into the bottom assembly and push it all the way to the side wall in the direction you plan on pushing the sight. Then turn the opposite sides clamping knobs to loosely clamp the slide in place. Photo D.
  • Page 5 Once you have the slide positioned correctly, and the sight pusher block set to the correct height, thread on the two hold down knobs and hand tighten. DO NOT OVERTIGHTEN KNOBS!! Recheck the slide and pusher block alignment. Once you are satisfied with your settings start to rotate the Adjustment Handle so that the pusher block moves in the direction you want the sight to move.
  • Page 6 When you have your 1911 slide set correctly in the AccuSight Tool, you then follow steps A thru F to adjust or install sights on your 1911 type pistol. !! Important !! Most sights are installed from left to right, meaning the left side would be the side of the pistol if you were holding the pistol to fire.
  • Page 7 ITEM NO. PART NO. DESCRIPTION 7994630 BASE W/THREADED POSTS 7994601 UPPER BLOCK 7994603 STRAIGHT PUSHER 7994604 ANGLED PUSHER 7994605 ADJUSTING SHAFT 7994606P HANDLE 7994614P BRONZE THRUST WASHER, LARGE 7994615P BRONZE THRUST WASHER, SMALL 7994617P WASHER 7994616P 10-32 SCREW 7994607 7994632 SLIDE HOLD DOWN STUD 7994612 SLIDE HOLD DOWN FOOT...
  • Page 8 Lyman Products Corporation postage paid for evaluation. (See Return Policy) If the returning defective product meets the criteria of this warranty the product will be repaired or replaced at Lyman Products’ option at no charge, parts and labor are included.
