Model: 90300
Full Motion Wall Mount for Flat Panel TVs
(Fits most TV sizes weighing up to 50 lbs)
Questions, problems, missing parts? Before returning to the store,
call STC Customer Service
9 a.m. - 5 p.m., Monday to Friday
Toll Free 1-833-GOSTCNY (1-833-467-8269)
STCNY.COM
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for Spacesaver 90300

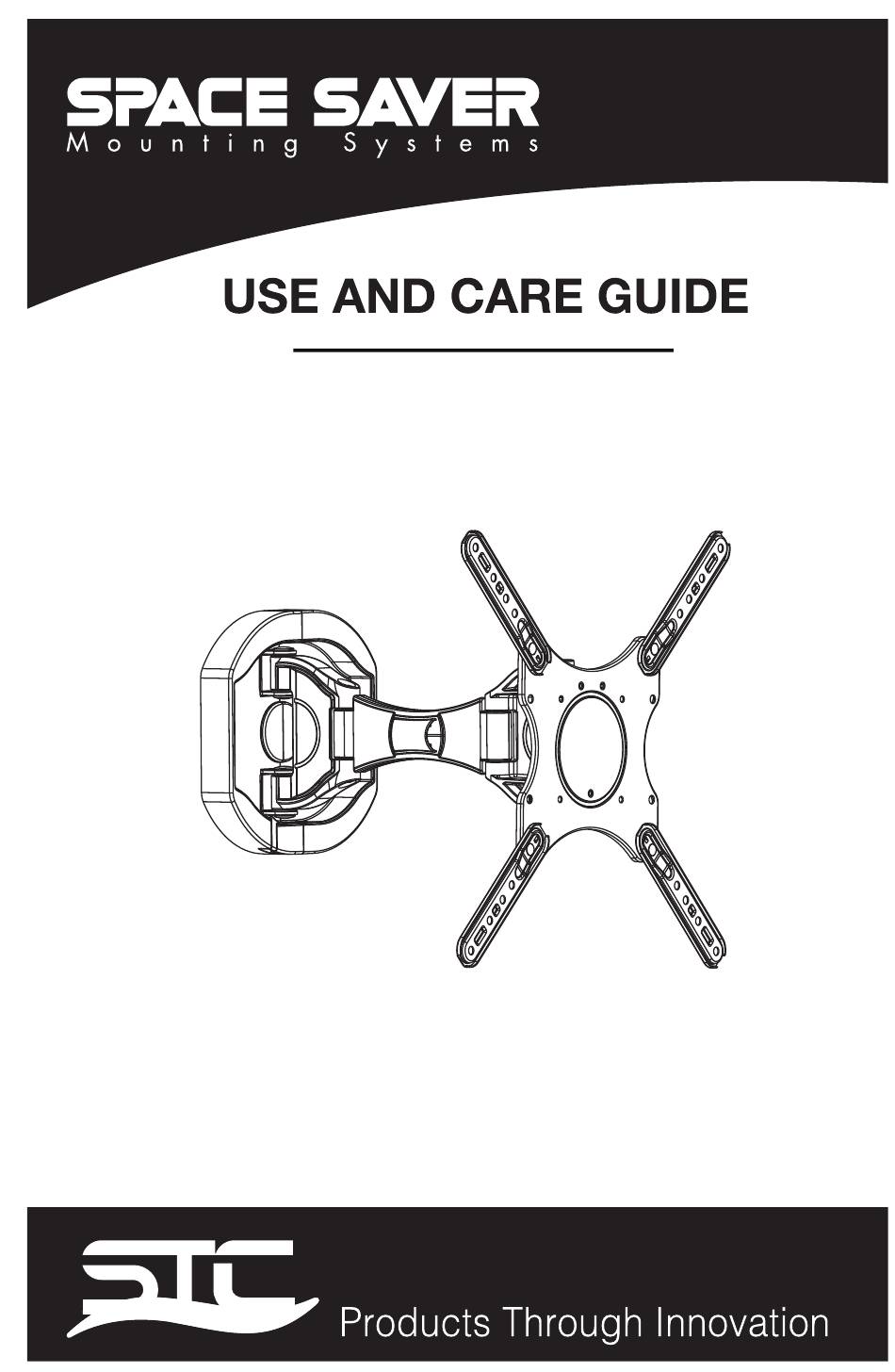

- Page 1 Model: 90300 Full Motion Wall Mount for Flat Panel TVs (Fits most TV sizes weighing up to 50 lbs) Questions, problems, missing parts? Before returning to the store, call STC Customer Service 9 a.m. - 5 p.m., Monday to Friday Toll Free 1-833-GOSTCNY (1-833-467-8269) STCNY.COM...
- Page 2 Before you begin, carefully read and understand the instructions in this manual. Please follow the instructions in the order presented in this manual and observe all warnings and cautions. 16.85"(428mm) 3.15"(80mm) This mount has been tested to support televisions with maximum weight as follows: WOOD STUDS, BRICK,CONCRETE WALLS: 50lbs.
- Page 3 Wall Mount Cable management VESA adapter Screw Allen key Wrench NOTE: The hardware included is suitable for mounting to walls made of brick, solid concrete using (AA and BB). If your mounting situation is different, please consult a qualified installer or contact customer service at: 1-833-467-8269 Toll Free 1-833-GOSTCNY (1-833-467-8269)
- Page 4 To ensure proper mounting of the brackets to your TV, this mounting system includes several sizes (M4, M5, M6, and M8) of screws (DD). Select the screw diameter to use by inserting the various sized screws (M4, M5, M6, and M8) into the mounting holes in the back of your TV to identify the right size.
- Page 5 Arranging the wall plate Pull the arm out and then remove the VESA plate and the decorative cover to start assembling. Installing the VESA adapter VESA 300x300,400x400 VESA 400x200,300x200 15.74"(400mm) 15.74"(400mm) 11.81"(300mm) 11.81"(300mm) VESA 400x300 VESA 100x100,200x100,200x200 15.74"(400mm) 7.87"(200mm) 3.93"(100mm) Toll Free 1-833-GOSTCNY (1-833-467-8269)
- Page 6 Attaching the mounting brackets to the TV CAUTION: Tighten the screws so the brackets are firmly attached. DO NOT OVERTIGHTEN. This may damage your TV. TVs ≤ 200 VESA TVs > 200 VESA Use of the spacers (FF) will vary depending on the type of TV you will be mounting.
- Page 7 PLANNING WALL PLACEMENT For Plasterboard/ Sheetrock walls mount directly on the board, no stud is required. Toll Free 1-833-GOSTCNY (1-833-467-8269)
- Page 8 Installing the wall plate (concrete/brick wall) Use 1/4 in (6mm) drill bit to drill a pilot holes and then use a 3/8 in (10 mm) masonry drill bit to slowly drill 2.4 in (60 mm) holes. (60 mm) 2.4” (6 mm) 1/4” (10 mm) 3/8”...
- Page 9 Installing the wall plate (wood stud) Use a commercially-available stud finder to locate the stud centers in the wall. Studs are usually spaced 16 in. apart. Use a 3/16 in. (4.5 mm) drill bit to slowly drill 2.2 in. (55 mm) pilot holes. Installing the decorative cover Toll Free 1-833-GOSTCNY (1-833-467-8269)
- Page 10 Mounting the TV to the wall plate Secure the TV HEAVY! You will need assistance with this step. Managing the cable Remove the cable management Pass the cables and connect the cable management back in place...
- Page 11 Adjusting the TV to the desired position To adjust the tilting position, release the screws by using the Allen key, adjust the best tilting position and tight the screws to keep the position. To fold the mount into the decorative rear housing STEP 1: MOVE LEG 1 into the housing.
- Page 12 Questions, problems, missing parts? Before returning to the store, call STC Customer Service 9 a.m. - 5 p.m., Monday to Friday Toll Free 1-833-GOSTCNY (1-833-467-8269) STCNY.COM...
