Provision DCoE-01 Quick Start Manual

DCoE-01
DC over Ethernet
This ethernet power supplies include a power supply unit and a power receiving unit, it uses in
10/100M network, it transfers the power for the remote device over Cat5/5e/6 cable. This product
use 4,5,7,8 pin to transfer power, the distance can up to 50 meters. At the same time ,the output
voltage is 15V,24V,48V optional. Besides, work with 4ch or 8ch power
product can make various combination to save the cost and wiring .The product is widely used in
security surveillance monitor and network engineering, It's easy application and stable function,
this product is widely used in security surveillance monitor and network engineering sites.

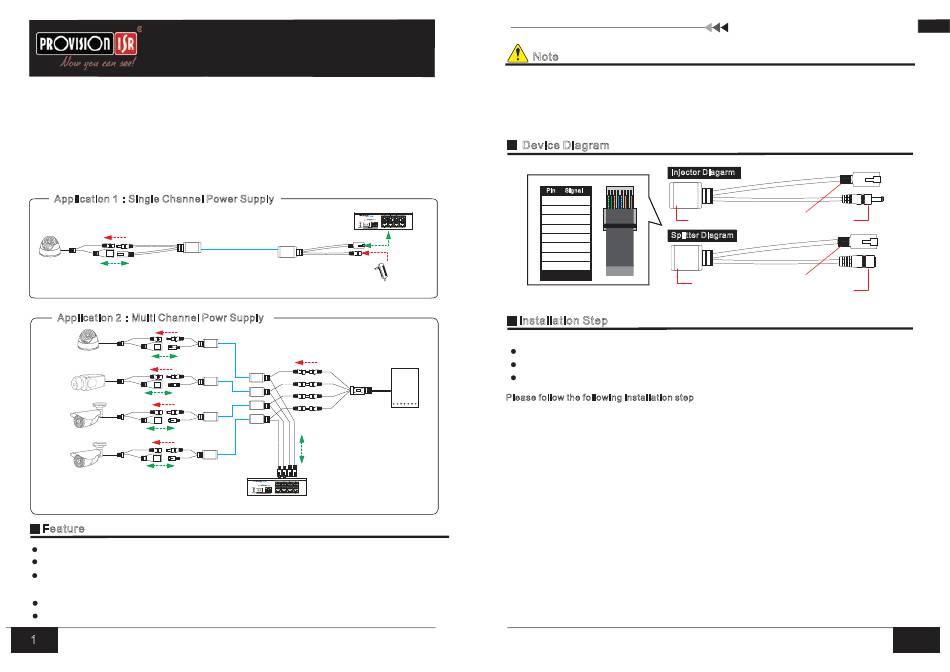

Application 1 Single Channel Power Supply ：
Power Receiving Unit
IP Camera
Application 2 Multi Channel Powr Supply ：
Cat5/5e/6
Power receiving Unit
IP Camera

Feature

Apply in 10/100M network, provide power for the terminal device in 0--50 distance;
Adopt Mid-Span:1,2,3, 6 pin to transfer ethernet; 4,5,7,8 pin to transfer power;
According to the terminal device consumption, it can select 15V,24V,48V, at the same time is
related with the distance;
Multi power supply can use at the same time via power distribution wire;
Provide power for IP camera, wireless AP, IP telephone.
1
distribution wire. The
Network Switch
Ethernet
Cat5/5e/6
Power Input
Power Supply Unit
Power15V
Power Input
Power Supply Unit
+ DC15V
-
Power Distributrion Wire
Power Input
Ethernet
Network Switch
Note
1) Please use standard Cat5e/6 cable to guarantee the power and ethernet transmission distance!
2) The product is passive, without stable voltage, current limit and control power circuit. Please select
the power according to the terminal device consumption,(refer to the voltage table）, and avoid to
damage the device!

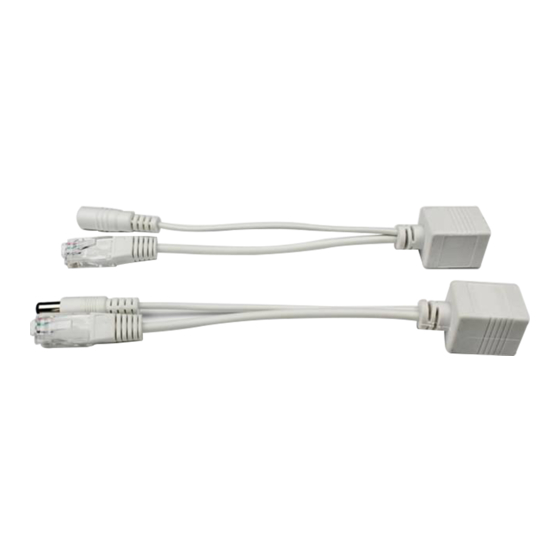

Device Diagram

Injector Diagarm
Mid-Span
Pin Signal
1 Data
2 Data
3 Data
4 Power +
Splitter Diagram
5 Power +
6 Data
7 Power -
8 Power -

Installation Step

Please check the following items before installation, if any missing, please contact your dealer.
Power Supply Unit
Power Receiving Unit
User Manual
Please follow the following installation step
1 Turn off the signal and display device install the product with power on may damage the ) ,
transmission device;
2) Check the power consumption of network terminal, current and power voltage;
if it is 12V device, please select 15V power supply; refer to the power supply table, confirm if the
voltage meet the requirement after transmission;
if it is 24V device, please select 24V power supply; refer to the power supply table, confirm if the
voltage meet the requirement after transmission;
if it is PoE power supply, please select 48V 0.5A power supply, and make sure the ethernet
transmission distance is in 100 meters;
3) Connect power supply unit's RJ45 with switch, and DC connector with power supply, then the
network cable connect with the RJ45-F;
4) In terminal device, connect the power receiving unit's RJ45- M with network port, and DC power
connector with power, network cable connect with the RJ45-F;
5) Network terminal work normally.
DCoE-01 DC over Ethernet
R 45-
J M
R 45-F J
-
Power M
R 45- J R 45- J
F M
-
Power F
1pc
1pc
1pc
2
