2.4 Install the UPS
For safety consideration, the E7 One RT is shipped without connecting battery wires. Before
installing the UPS, please follow the steps below to re-connect battery wires.

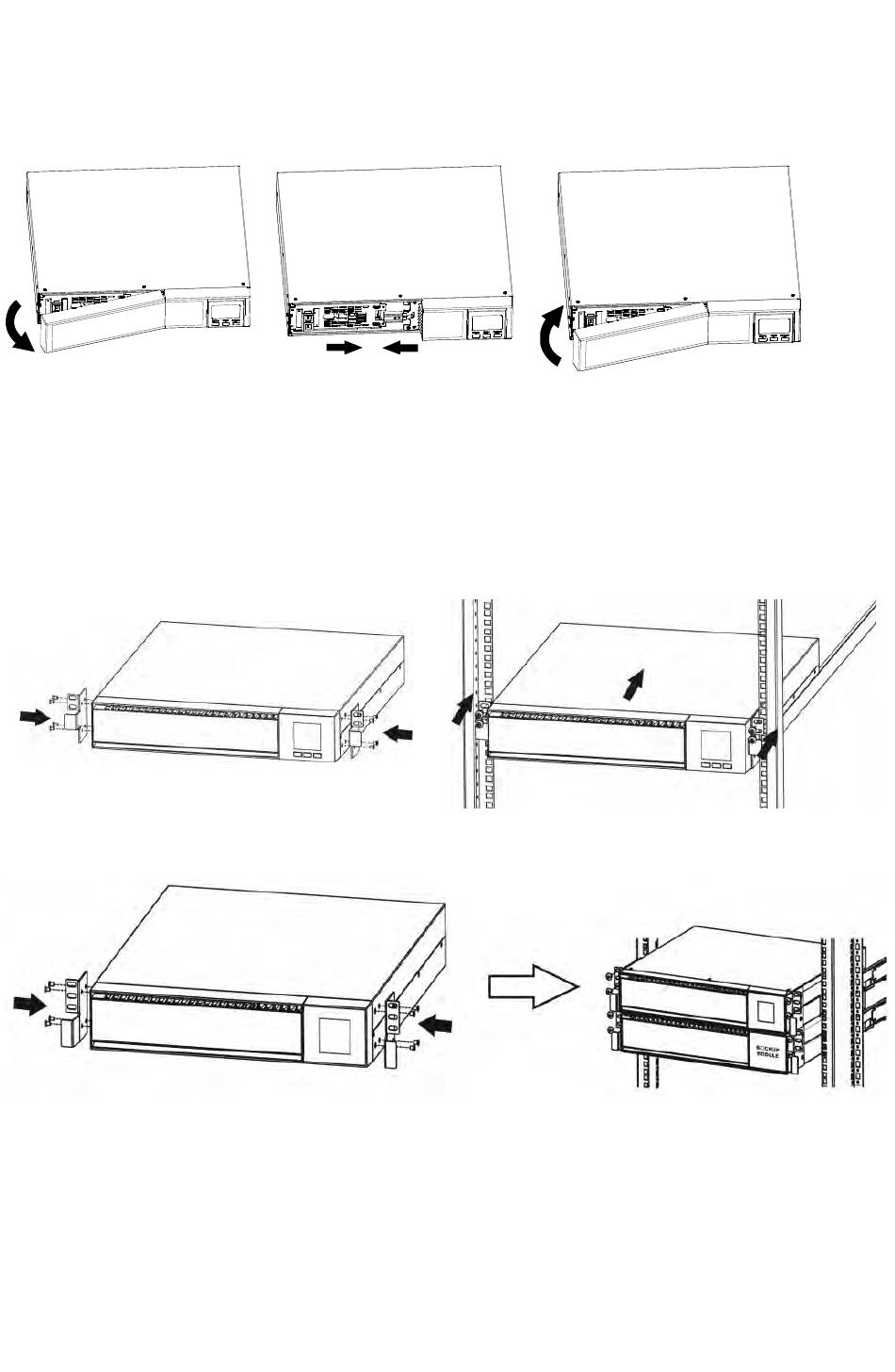

Step 1 Step 2 Step 3
  
Connect the AC input and Put the front panel back to the
Remove front panel.
re-connect battery wires. unit.
Step 4 : To start the UPS, press the "On" button (indication NC normal)
Rack-mount installation
Single UPS
Step 1
 Step 2

UPS and backup module
Never put the backup module on top of the UPS module.
