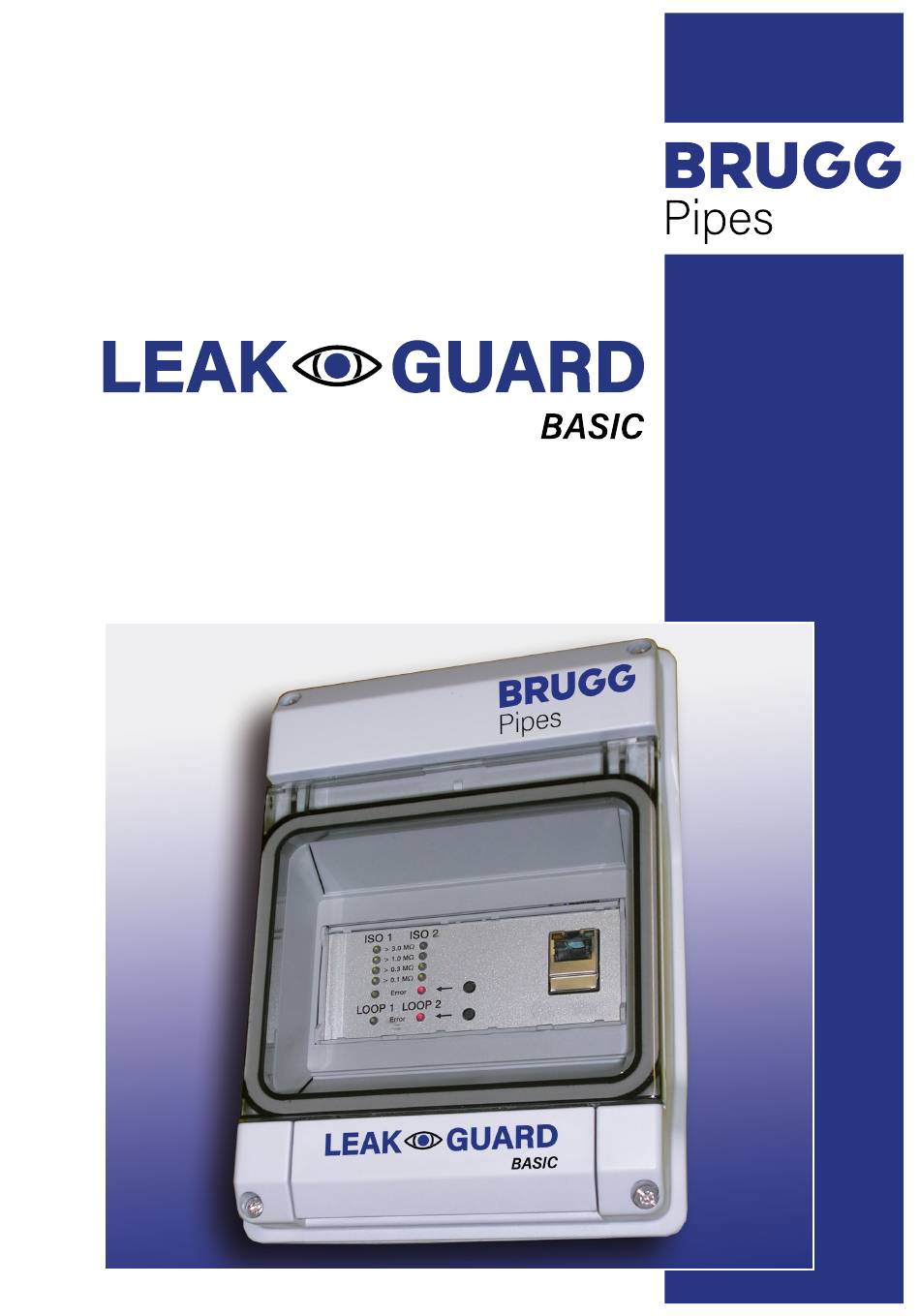

Page 1 Operating instructions 2-channel district and local heating pipe monitoring device BA 076344.020/01.21 CH...
Page 2: Table Of Contents
Commissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 LEAKGUARD BASIC factory settings ......8 LEAKGUARD BASIC function .
Page 3: Technical Data
Page 3 Technical data LEAKGUARD BASIC Supply voltage 90 .. 250 V AC, 50 .. 60 Hz Power consumption max. 5 W Number of measurement channels 2 (e.g. for flow and return of a district heating line) Insulation measuring range 0 ..
Page 4: General Information
Proper use The LEAKGUARD BASIC district heating monitoring device is designed for measuring insulation and loop resistance to detect leaks in pipe systems. For configuration, the device can be connected to a PC (laptop) via the Ethernet interface.
Page 5: Safety Instructions
• Do not make any changes to the device. • Assembly, maintenance and repair work may only be carried out by trained staff. • Only use original BRUGG spare parts. CAUTION! Observe handling instructions . Electrostatically sensitive components .
Page 6: Installation
Page 6 Installation Mounting The LEAKGUARD BASIC is situated in a wall-mounted housing and is attached to the wall with three screws. After assembly, the screw heads must be sealed with the enclosed rubber seals. Detailed assembly and installation instructions can be found in the separately enclosed installation instructions of the housing manufacturer.
Page 7: Function/Commissioning
Page 7 Function/Commissioning The LEAKGUARD BASIC is a measurement and monitoring device for insulation and loop resistance for detecting leaks in pipe systems and interruptions of the measurement loop. Each device can cyclically monitor two measurement loops, e.g. the flow and return of a district heating pipe.
Page 8: Commissioning
Page 8 Commissioning After switching on the supply voltage, the LEAKGUARD BASIC is initialised and runs a self-test. All LEDs light up, then the LEDs of the bar displays go out from top to bottom. The LEAKGUARD BASIC automatically starts continuous measurements.
Page 9: Acknowledging Alarm
Page 9 Alarm acknowledgement To cancel remote alarms although a ISO bar display LED measured value is still in an alarm state, Loop “error” LED ISO “error” LED alarms can be acknowledged in the device. To do so, press the acknowledgement button located to the right of the red LED.
Page 10: Reset To Factory Settings
Reset to factory settings Reset to factory settings is necessary in particular if the network configuration of the LEAKGUARD BASIC has been changed in such a way that access to the configuration via the Ethernet interface (see page 10) is no longer possible.
Page 11 Page 11...
Page 12: Measurements Menu Item
Page 12 Measurements menu item 1. Display of the exact measured values for the insulation and loop resistances of both measuring channels Measured values within the limits are highlighted in green. Measured values outside of the limits are highlighted in red. 2.
Page 13 Page 13...
Page 14: History Menu Item
Page 14 History menu item The LEAKGUARD BASIC stores the current measured values once a day, 24 hours after the last measurement. The list contains a maximum of 30 entries, with the most recent entry at the top. If the number of entries exceeds the maximum of 30, the oldest entry is over- written.
Page 15 Page 15 The "Graphic" button above the table must be pressed and the desired meas- urement channel selected for this purpose. Clicking the "Table" button causes the display to return to tabular view. ISO measured value curve in MΩ Loop measured value in kΩ The oldest measured value is on the left, the youngest (1.) on the right.
Page 16: Settings Menu Item
Page 16 Settings menu item 1. Display of the software version with revision status 2. Definition of limit values and measurement channel activation. The permissible values are indicated behind the entry fields. Values of measurement channels 1 and 2 • Deactivate: Checkbox for deactivating a measurement channel.
Page 17 Page 17 • ISO alarm delay: Enter the time delay that the loop resistance alarm relay waits until it triggers. The setting of a time delay prevents the alarm from being triggered by brief incorrect measurements. Permissible: 0...999 min. • Loop alarm delay: Enter the time delay that the isolation alarm relay waits until it trips.
Page 18: Network Setting Menu Item
• MAC address: The MAC address (unique product identification) of the LEAKGUARD BASIC cannot be edited. • Host name: Name for the LEAKGUARD BASIC in the net- work can be freely edited. • Activating DHCP server: The Dynamic Host Configuration Protocol...
Page 19: Reset To Factory Settings
Reset to factory settings Reset to factory settings is necessary in particular if the network configuration of the LEAKGUARD BASIC has been changed in such a way that access to the configuration via the Ethernet interface (see page 10) is no longer possible.
Page 20: Eu Declaration Of Conformity
EU Declaration of Conformity BRUGG Rohrsystem AG Industriestrasse 39 We declare in sole responsibility that the product CH-5314 Kleindöttingen Tel. +41 (0) 56 268 78 78 Brand: BRUGG Pipes pipes@brugg.com Type: LEAKGUARD BASIC bruggpipes.com to which this declaration refers complies with the relevant basic...
