Optical Time Domain Reflectometer

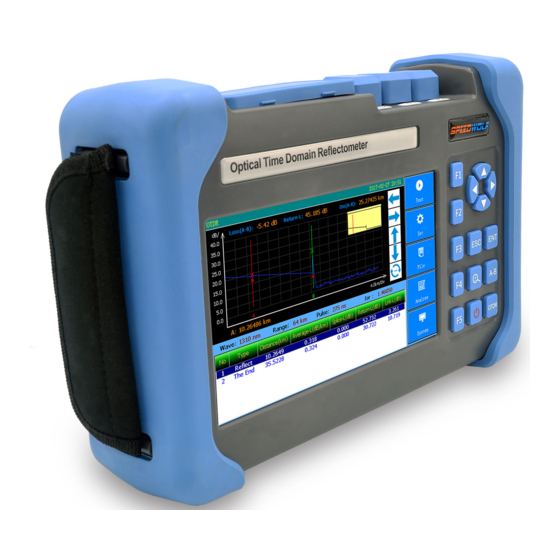

OTDR32F-T4
USER'S GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OTDR32F-T4 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Speedwolf OTDR32F-T4 Series

Summary of Contents for Speedwolf OTDR32F-T4 Series

  • Page 1 Optical Time Domain Reflectometer OTDR32F-T4 USER’S GUIDE...

  • Page 3: Prefce

    The contents of this document are subject to change without notice. If you have any questions, please call the supplier, we will be happy to provide you with the best quality service! Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...

  • Page 4: Table Of Contents

    Laser Safety .................... 11 1.3.4 Instrument Maintenance ............... 11 OTDR Basic Knowledge Introduction ......14 2.2.1 Reflection Events ..................16 2.2.2 Non Reflective Events ................17 Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 5 7.1 Daily Use and Maintenance of Instrument ............70 7.1.1 Connector Cleaning ..................70 7.1.2 Internal Battery Maintenance ................. 71 7.1.3 Instrument Screen Cleaning and Calibration ..........71 Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 6 SPEEDWOLF —OTDR32F-T4 Series 7.1.4 Instrument Calibration ..................72 Chapter 8 Technical Parameters ..........77 8.1 Technical Parameters of OTDR ................. 77 Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...

  • Page 7: Chapter 1 Summary

    If you find that the material in the packing box is not complete, please contact with the supplier. Form 1-1 Basic Composition of OTDR Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 8 NAME QUANTITY MASTER OTDR32F Power Cord Power Adapter User’s Guide Accessory U Disk Options （Including simulation analysis software） Touch Pen Soft Bag and Strap Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...

  • Page 9: Summary

    Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...

  • Page 10: Attentions

    In addition to the OTDR function, the instrument can also be equipped with optical power meter, light source, visual fault location (VFL) and the end detection function. Figure 1-1 Main Menu 1.3 Attentions Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...

  • Page 11: External Power Supply

    12 hours. When the temperature is too high, the charging temperature of the battery in the battery is 0 DEG C to about 50 DEG C. The instrument is idle for Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...

  • Page 12: Laser Safety

    1.3.4 Instrument Maintenance 1. The whole machine is guaranteed for 12 months, and the battery is guaranteed for 6 months。 Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 13 1.3.5 Instrument Return If you need to return the product for product calibration or other reasons, please contact your supplier in Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 14 Fill in the product maintenance card correctly, including company name, address, contact person, telephone number, problem description and so on;  Deliver the goods to your supplier in a reliable manner. Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...

  • Page 15: Otdr Basic Knowledge Introduction

    Rayleigh timing after the change of scattering light signal intensity, accurate measurement of the fiber optic cable to the loss distribution, the quality of the connection properties. Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 16 The size of the reflection depends on the refractive index difference and the smoothness of the boundary surface. Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...

  • Page 17: Reflection Events

    In the OTDR test curve, it is shown that the peak width and amplitude are determined by the pulse width and the reflected intensity. As shown in figure 2-1. Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...

  • Page 18: Non Reflective Events

    SPEEDWOLF —OTDR32F-T4 Series Figure 2-1 Reflection Events Diagram 2.2.2 Non Reflective Events Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 19 Non reflection events declined as a signal energy in the test curve of OTDR, the decrease of said power loss situation. As shown in Figure 2-2. Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...

  • Page 20: Otdr Dynamic Range

    OTDR that can be analyzed from the backscatter level of the instrument output port to a specific noise level. In the practical use of OTDR, the maximum distance between Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 21 The maximum test distance of OTDR is different in different applications, because the loss of the measured link is different. Connectors, welding and splitter are also factors that reduce the OTDR test length. Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...

  • Page 22: Otdr Dead Zone

    ATT Dead Zone: Refers to the OTDR signal detected from the Fresnel reflection to the shortest distance to the normal test of Rayleigh backscattering signal. Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...

  • Page 23: Chapter 3 The Basic Operation And Usage Of This Series Otdr

    Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...

  • Page 24: This Series Of Otdr Main Operating Window

    (detailed description of the use of methods) 3.1 This series of OTDR main operating window Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 25 SPEEDWOLF —OTDR32F-T4 Series Figure 3-1 Main Operating Interface Notes: (1) For OTDR power indicator, system time, charging indicator display area. Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...

  • Page 26: The Menu Structure And Function Of Otdr

    (4) For the OTDR function menu, click on the menu to do related operations。 3.2 The Menu Structure and Function of OTDR OTDR32F series of optical time domain reflectometer with the industry's most simple and efficient Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 27 The utility model has the advantages that the operation is more convenient, and the user's frequent movement of the cursor is omitted Process. Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 28 SPEEDWOLF —OTDR32F-T4 Series 3.3 Key Function Introduction of OTDR OTDR Figure 3-2 Key Introduction Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 29 :Zoom\Move Select Button, Press this button to achieve the zoom function or cursor movement function. :Enter Button, Press this button to confirm the prompt information. Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 30 :ESC Button, Press this button to exit the test or the current test function or return to the main function. ： Navigation Button, Press this button can be select the function of cursor movement or zoom in or out. Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...

  • Page 31: The Setting Method Of The Parameters Of The Otdr

    (all test parameters can be the interface of the instrument complete set), as shown in figure 3-3. Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 32 SPEEDWOLF —OTDR32F-T4 Series Fig 3-3 Parameter Setting Interface Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 33 The range is set according to the actual length of the fiber to select the appropriate predefined range, it must be greater than the length of the measured fiber, usually set to two times the length of the measured fiber. Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 34 In actual operation, it is recommended to use the optional range of the maximum pulse width can be. Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 35 Real time testing: In order to scan the test link in real time and display the test results, it is convenient to monitor the link and the link dynamically. Average test: The scanning results are accumulated and averaged to improve the quality and accuracy of Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 36 The setting method: In the parameter settings interface, click on the average number of times, the average number of pop-up input interface, input the average number of times, click [OK] and exit window. Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 37 Return loss: Used for testing the loss of reflection events in a link. The setting method: Under the parameter setting interface, click on the "loss display", "average loss", Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 38 The setting method： In the parameter settings interface, click on “group refractive index”, pop index input interface, enter the refractive index of the optical fiber is measured, click [OK] exit window. Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 39 The setting method：In the parameter settings interface, click the [optical cable correction], pop optical cable to modify the input interface, the input optical fiber is the correction factor, click OK to exit the window. Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 40 The setting method：In the parameter settings interface, click on the corresponding threshold menu to pop up the threshold input interface, click on the input threshold “OK” to exit window. 3.6 Introduction of Loss Test Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 41 A or B cursor position，The utility model can satisfy the customer to observe the detailed loss of any distance between the optical fiber links. As shown in figure 3-4. Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 42 In the connection loss mode, OTDR main interface will display the cursors A and B. The test results show Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 43 A in measured the positions of left sides and close to the incident, placed cursor B in measured the positions of right sides and close to the incident,. As shown in figure 3-5. Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 44 SPEEDWOLF —OTDR32F-T4 Series Fig.3-5 Connection Loss Test Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 45 Place the cursor B at the top position of the reflection event. The return loss can be read by the return loss. As show in figure 3-6. Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 46 3.7 Curve Analysis and Event List After the OTDR test end and gets the test curve. Click “analysis” menu or click button, OTDR will Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 47 Reflection event: This event is a reflection event. usually caused by an active connector in an optical fiber link. Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 48 Link loss: The total loss of the link from the start point to the current point in the link. Reflection loss: Reflection loss of reflection events caused by active connections in a link。 Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 49 SPEEDWOLF —OTDR32F-T4 Series Fig.3-7 Analysis Result Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 50 , as show in figure(1), 、 、 Press Navigation key can move the curve at Horizontal or vertical translation. Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 51 The average value of the average loss displayed on the operating window is the average loss of the fiber segment to be tested. As show in figure 3-8. Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 52 SPEEDWOLF —OTDR32F-T4 Series Fig.3-8 Average Loss Measurement 3.11 Manual measurement of the loss of connection points and fusion contacts in optical fiber links Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 53 ● The connection loss of the measured connection point is displayed on the operation window. As shown in Fig. 3-9. Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 54 In the OTDR settings window, set the test item to echo loss test. At this time, there will be 2 cursors, cursor A and cursor B. Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 55 At this time, the value of the return loss displayed on the operation window is the return loss of the measured connection point. As shown in Figure 3-10. Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 56 When measuring, the measurement curve can be saved. The contents of the preservation curve include: the curve and the curve of the relevant information. Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 57 Fig.3-11 File Read 3.13.2 File Save In the test main interface, click [file] - [save], pop-up file save interface, enter the file name, select the file Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 58 In the test main interface, click [file] - [save], pop-up file copy interface, you can choose to copy the file to the U disk memory. Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 59 In the test main interface, click [file] - [delete], pop-up file delete interface, select the name of the file you want to delete, click Delete to delete the appropriate file. Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 60 In the OTDR test interface, click on the menu button [system], enter the system menu interface, click the system [sys-set/upgrade] to enter the system information settings window. Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 61 In the system [sys-set/upgrade] interface, the system time, the system language settings, the touch screen can be calibrated, the software can be upgraded. As shown in Figure 3-15. Fig.3-15 System Settings/Upgrade Interface Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 62 Note: the [system time], [language] and [Brightness]option in the page can be set up by the user, the rest is the inherent parameters of the system. 3.14.6 Help Information Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 63 By the navigation keys on the left and right buttons to turn pages. Press the return key to exit the window. As shown in Figure 3-17. Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 64 SPEEDWOLF —OTDR32F-T4 Series Fig.3-17 Help Information Interface Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...

  • Page 65: Chapter 4 Basic Operation And Use Method Of Optical Power Meter

    Click this button to start the power meter module to be tested, and the button is changed to [stop], and then click the button again, then stop the power meter test, and the button content becomes [start]. Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 66 [verage number of times] Modify the average number of optical power meter, the average number of times, the higher the accuracy of the measurement, the average number of options from 16 to 1024. Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...

  • Page 67: Chapter 5 Introduce Of The Function Of Face Detection

    [end detection] module, into the end of the test interface. Detect the optical fiber connector access to the end detector to see whether the end surface is clean. As Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...

  • Page 68: Chapter 6 Visual Fault Location（Vfl

    Chapter 6 Visual Fault Location（VFL） Click on the figure 6-1 [VFL], will enter the visual fault locator operating interface, as shown in Figure 6-1。 Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 69 VFL operating instructions are as follows: Click [VFL], visual fault location mode for 1Hz modulation light output; Click [VFL], visual fault location mode continuous light output; Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 70 SPEEDWOLF —OTDR32F-T4 Series Click [VFL], visual fault location function off. Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...

  • Page 71: Daily Use And Maintenance Of Instrument

    At the same time, in the normal use of the instrument, after the completion of the dust cap on the cover, but also must keep the dust clean. Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...

  • Page 72: Internal Battery Maintenance

    OTDR32F series of OTDR display for the touch screen with 7 inch color LCD, in the use of sharp objects can not be used to click on the LCD screen, otherwise it may lead to damage to the LCD screen. Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 73 In the normal use of the instrument, it is recommended that the optical time domain reflectometer calibration every two years. Please contact the instrument supplier for specific calibration. Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 74 Open the battery compartment charge Poor battery contact cover, check the battery contacts, and re install the battery Battery problems, or internal Contact suppliers to replace Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 75 Reconnect the appropriate output Test curve burr, connection interface Waveform is not Pulse setting small Increase test pulse width smooth Incorrect channel settings Modify test channel parameters Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 76 Increase test pulse width parameters Increase test pulse width False positives in curve Poor quality of test curve. parameters. analysis Event threshold setting. Add event threshold. Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 77  The instrument in use, without permission, the user must not arbitrarily disassemble, otherwise it will lose the warranty! Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 78 7.4V(dc)/4.4Ah lithium battery (with air traffic certification) Operating time: 12 hours, Telcordia GR-196-CORE Charging time: <4 hours (power off) Power Saving Backlight off: Disable/1 to 99 minutes Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 79 Accessories Standard: Main unit, power adapter, Lithium battery, FC adapter, USB cord, User guide, CD disk, carrying case Optional: SC/ST/LC adapter, Bare fiber adapter Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 80 OTDR32F-T4 1310/1550 32/30 OTDR32F-T3 1310/1550 37/35 OTDR32F-T2 1310/1550 42/40 OTDR32F-T1 1310/1550 45/42 OTDR32F-S4 1310/1490/1550 30/28/28 OTDR32F-S3 1310/1550/1625 30/28/28 OTDR32F-S2 1310/1490/1550 37/36/36 OTDR32F-S1 1310/1550/1625 37/36/36 Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 81 Linearity scale Indication X axis: 4m~70m/div, Y axis: Minimum 0.09dB/div Distance Resolution 0.01m ± (1m+measuring distance× 3× 10-5+sampling resolution) (excluding IOR Distance Accuracy uncertainty) Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 82 -Reflective and non-reflective events: 0.01 to 1.99dB (0.01dB steps) Fiber Event Analysis -Reflective: 0.01 to 32dB (0.01dB steps) -Fiber end/break: 3 to 20dB (1dB steps) Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 83 VFL Module (Visual Fault Locator, as standard function): Wavelength (± 20nm) 650nm Power 10mw,CLASSIII B Range 12km Connector FC/UPC Launching Mode CW/2Hz PM Module (Power Meter, as optional function): Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 84 ± 0.35dB± 1nW 270/1k/2kHz,Pinput≥-40dBm Modulation Identification Connector FC/UPC LS Module (Laser Source, as optional function): Working Wavelength (± 20nm) 1310/1550/1625nm Output Power Adjustable -25~0dBm Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 85 0.40× 0.31mm Storage/working Condition -18℃~35℃ Dimension 235× 95× 30mm Sensor 1/3 inch 2 million of pixel Weight 150g 1.1/2.0 Adapter SC-PC-F (For SC/PC adapter) Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
  • Page 86 2.5PC-M (For 2.5mm connector, SC/PC, FC/PC, ST/PC) Note: the above contents are subject to change without prior notice due to the need for design improvement. Shenzhen SPEEDWOLF Technology Co.,LTD A-14,Haide Building, Nanxin Road Nanshan District,Shenzhen,P.R.China Email: am-us@speedwolf.net / after-sale@speedwolf.net whatsapp:+086-18923447735 skype:speedwolf_8...
