Jaycar Electronics SL3234 Manual

Solar led light with pir

Hide thumbs

Introduction

The LED light is powered by rechargeable battery. A waterproof solar panel can keep the rechargeable

batteries topped up. Each unit has a built-PIR motion detector, which automatically turns the light on 5

seconds, 20 seconds or flashing 20 seconds. This fully sustained lighting unit is perfect for application

where mains power is unavailable. It is very simple and easy to install.

Please read this manual carefully before commencing installation.

Contents

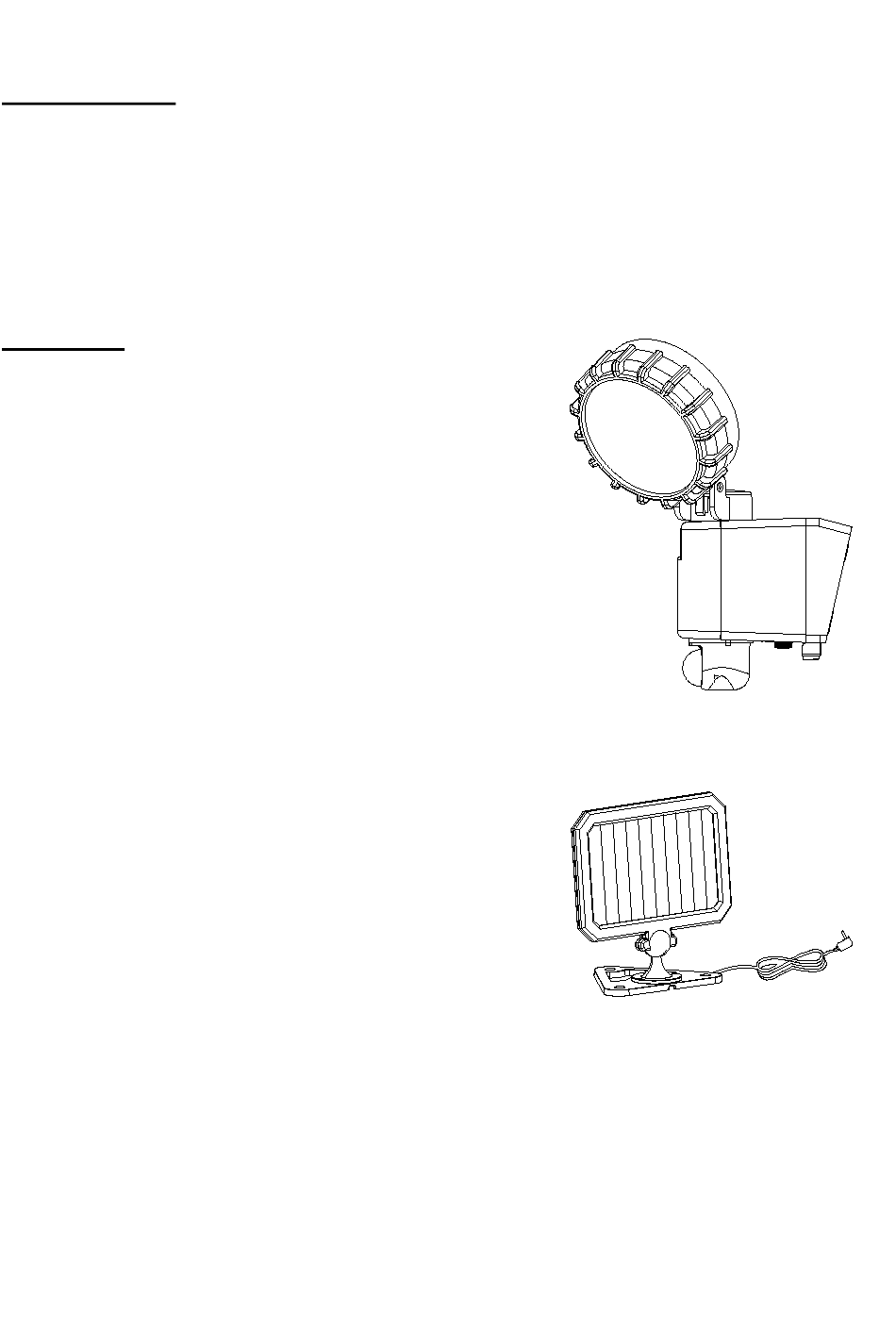

Solar LED LIGHT WITH PIR x 1

When someone and objects enter the detection area of the

PIR sensor, the light will go off.

Solar panel x 1

It is used to charge the rechargeable batteries for the Solar

LED LIGHT WITH PIR. When the Solar LED LIGHT WITH PIR

is connected to the Solar Panel, its battery will last longer

SOLAR LED LIGHT WITH PIR

Table of Contents

Need help?

Do you have a question about the SL3234 and is the answer not in the manual?

Questions and answers

Summary of Contents for Jaycar Electronics SL3234

Page 1 SOLAR LED LIGHT WITH PIR Introduction The LED light is powered by rechargeable battery. A waterproof solar panel can keep the rechargeable batteries topped up. Each unit has a built-PIR motion detector, which automatically turns the light on 5 seconds, 20 seconds or flashing 20 seconds. This fully sustained lighting unit is perfect for application where mains power is unavailable.
Page 2 Tools Required Large and small flat bladed screwdrivers  Large and small cross-point screwdrivers  Hammer  Please Note: Tools are not included, consult a professional if you need assistance Installation Solar LED LIGHT WITH PIR Step 1: Remove and retain the screw from the bottom of the solar LED light with PIR and lift off the cover.
Page 3 Step 4: Place 6V (5 x 1.2V) rechargeable battery pack inside the battery compartment with the correct polarity. Step 5: Close the base cover and screw it up Step 6: circumgyrate function(have 3 parts can circumgyrate) ° ° 180 ° Step 7: Plug-in the Solar Panel into t solar LED light with PIR for charging the batteries.
Page 4 Note : the Solar Panel’s the best degree 45℃, to get direct sunlight  PIR detects change of luminance and temperature in the environment, it is best to avoid  looking directly at sources of heat such as fires and boilers, and always try to keep away from a window.
Page 5 Time Setting Day/Night Setting Two main function operation The Solar LED light with PIR has two main function: 1.setting knobs(time setting and Day/night setting ), 2.PIR sensor detects , Setting knobs operation setting knobs(time setting and Day/night setting) Day/night setting :start from ...
Page 6 Time setting has 4 parts: 5S; 20S; Flashing(5S/20S);OFF  Day/ Environment Light-Intensity night time setting the Strongest the stronger the strong the low the lowest setting light-intensity light-intensity light-intensity light-intensity light-intensity LED light 5S LED light 5S LED light 5S LED light 5S LED light 5S 1: 5S...
Page 7 Maintenance 1). Test all detectors once every 3 months 2). The rechargeable battery pack needs to be charged at least 30 minutes for further operation if the stored power is used up. 3). Do not use cleaners that contain petroleum products, acetone, or thinners etc. Also do not use abrasives or chemically treated cleaning cloths, all these can cause damage.
