Summary of Contents for HDE DENTALSCOPE

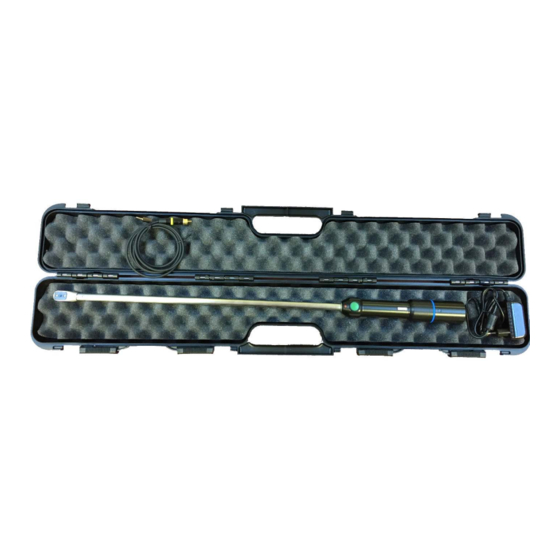

- Page 1 DENTALSCOPE Instructions for use HORSE DENTAL EQUIPMENT HDE North America 11999 Katy Freeway, #330, Houston TX 77079 France contact@horse-dental-equipment.us +1 (713) 444-2531...
- Page 2 WARNING. Read safety warnings and instructions. Failure to follow safety warnings and instructions of use may result to electric shock, fire, and/or serious injury for the user. HDE company declines all responsibility in the event of damage resulting from improper use or non-compliance with these safety instructions.
- Page 3 Easy to use : Plug and play system Sequence for Connect cable with dedicated plug on the bottom of the Dentalscope Connect the other extremity of the cable (AV plug) on a screen equipped with AV-Video plug Press green button on the scope, And watch in live steaming.
- Page 4 Option 2 : Monitoring on external monitor 10” DVR Viewing Monitor with recording on SD-CARD (video + picture) 5- 10” Monitor 6- Charger for monitor 7- Storage and transportation case - rigid plastic with protective foam...
- Page 5 An auto-instal processus starts, it creates an interface “AV TO USB2.0” Starts AMCap software, select “Devices” à “AV TO USB2.0” There is no set up to do with the dentalscope, the converter is already connected to the right frequency with the scope.
- Page 6 Chapter 4 : Standard Use 4.1 With the AV-cable ü Connect AV-cable from both sides: o Small-pin connected to the bottom of the dentalscope, o Large-pin connected to the screen. ü Press green button on the scope, And you can work! 4.2 With the USB converter...
- Page 7 Annex : Monitor Monitor Set up The monitor is equipped with several mode. Only 2 modes are usefull for the dentalscope : RF Mode : dedicated for direct visualization DVR Mode : dedicated for visualization + screenshot + video capture.
