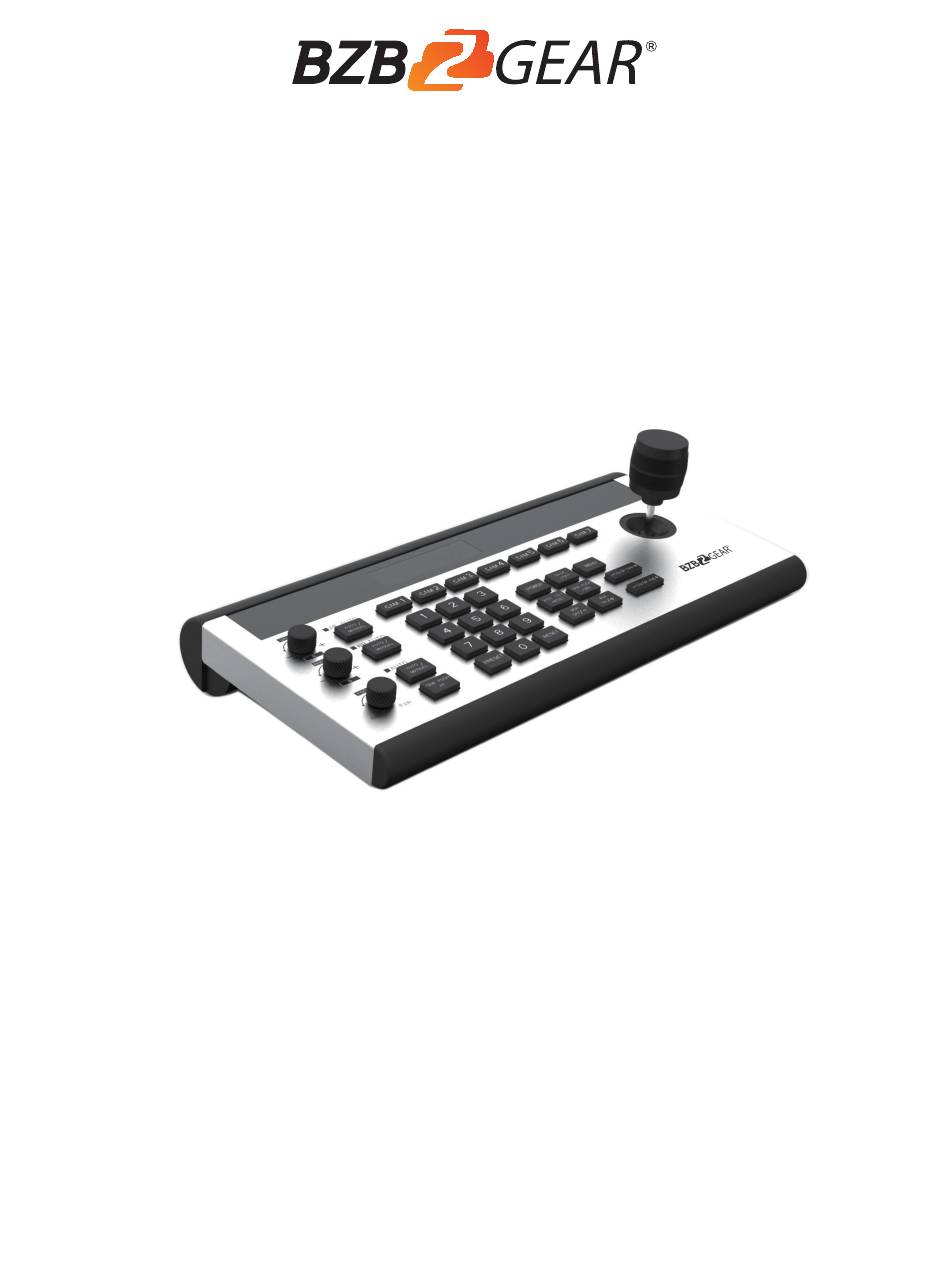

- Page 1 BG-CJ-IPRSPRO Pro Camera Control Keyboard User Manual...
-
Page 2: Table Of Contents
Main Menu ..........9 System Se ..........9 COM Se ..........10 ETHERNET SETTING ........11 Passwords Se ......... 11 Dimensions Size .......... 12 Warranty ..........13 Mission Statement ........13 Package Contents 1x BG-CJ-IPRSPRO 1x Power Supply 1x User Manual... -
Page 3: Specifica Parameters
Communica nterface RS422/RS485 Interface 4Pin Terminal RS232C Interface DB 9Pin Male Interface LAN Interface (All of Communica Port can RJ45 Female Interface work a ） Power Interface JEITA type4 Female Upgrade Interface Micro USB Female Interface Camera Control Max Support 255pcs PTZ Camera Control Protocol VISCA , PELCO P/D... -
Page 4: Key
Keys Function Description VALUE/R-Knob For adjus camera’s Exposure parameters or Red Gain Value. Clockwise to increase, counterclockwise to decrease. BRIGHT/B- Knob For adjus camera’s Exposure parameters or Blue Gain Value. Clockwise to increase, counterclockwise to decrease. FOCUS Kno For adjus camera’s focal length. -
Page 5: Rea
FOCUS Function Area 『 AUTO MANUAL 』 Adjust camera’s Focus Mode. When AUTO indica light is ON, then the current mode is AUTO MODE. 『 ONE PUSH AF 』 Triggers one- Auto FOCUS. Each the camera focuses once. The camera will enter AUTO FOCUS mode. WB Mode Key Modify White balance mode. -
Page 6: Rea
Exposure Mode VALUE-Knob BRIGHT-Knob AUTO None Gain Compensa MANUAL Shu er IRIS Shu er Priority Shu er Gain Compensa Iris Priority IRIS Gain Compensa Brightness Priority None Brightness Table 2 PRESETS Function Area 『PRESET』Keys are used to Save and Call Presets. Save Presets : Press 『... -
Page 7: Channel Short Keys Area
『 BACK LIGHT 』 Turn ON/OFF Back light 『 MENU 』 Open or close keyboard menu; long press 『 MENU 』 enter to Keyboard menu se ； 『 PAN TILT RESET 』 Reset the Pan/Tilt P of camera 『 ONE PUSH AWB 』 Trigger one- white balance. -
Page 8: Interf Ram
IP Address, Port Number, COMM ID, Communica Protocol, Baud Rate, etc.) and Keyboard Menu. The display screen brightness can be set in the Keyboard Menu. Light Sensor Detects the current environmental brightness. When the keyboard the environment's light level. Interface Function & Connection Diagram Upgrade Interface (For factory use only) Use for upgrading t he hardware of control keyboard. - Page 9 Keyboard Camera RS 422interface Camera RS 485interface Keyboard RS232 Interface diagram for reference: LAN Port You can use a network cable c with Camera or through Network Switch or Router. reference.
-
Page 10: Keyboard Menu Opera
12V Power Interface This interface is the Power supply interface. You can direct connect it with its Power adapter; please use only the original power adapter. Keyboard Menu Operation Long Press 『 MENU 』 for 3 secs: enter Keyboard Menu Swinging joys Le &... -
Page 11: Com Se
LED Screen Brightness 【 】 reen Brightness: Low, Normal, High 【 】 Button Back Light the brightness of bu on backlight: OFF, LOW, MID, HIGH, AUTO When “AUTO” is selected, the backlight adjusts according to environmental brightness (e.g., during day backlight will be off;... -
Page 12: Ethernet Setting
Select the channel key you’d like to use (e.g., CAM1). Set the ID to Others, then exit the menu. Select the corresponding numbers for the address you’d like to set (e.g., 12), then press the channel key. Example using CAM1: Press CAM1, then set address to Others. -
Page 13: Dimensions Size
Dimensions Size (Unit: mm) -
Page 14: Warranty
Warranty BZBGEAR wants to assure you peace of mind. All BZBGEAR cameras and camera-related products include our Stress-Free Three Year Warranty. Mission Statement everyone deserves to see, hear, and feel the advancements made in today’s AV world without having to break the bank. BZBGEAR is the professional products in AV.
