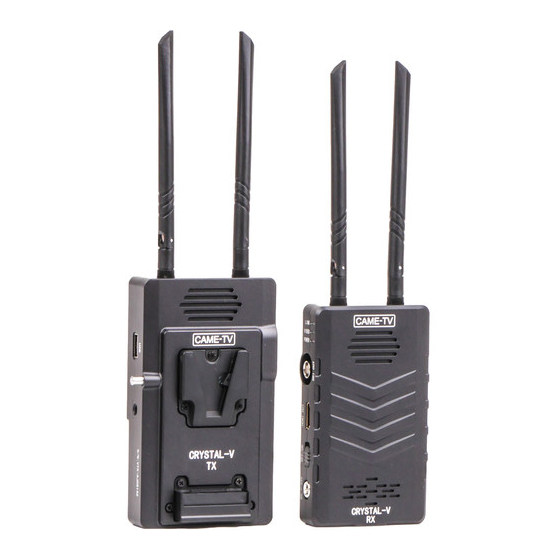

CRYSTAL-V Wireless Video System
Thank you for purchasing CAME-TV Crystal-V wireless video Transmission system. This product
adopts the latest image encoding and decoding technology and 5G transmission technology to
achieve ultra-low delay effect.Supports both HDMI and SDI input and output, and outdoor
distances up to 500 meters (1,640 feet).

Product Features:

1. The transmitter supports SDI loop out, which is convenient for the cameraman to install the
screen for monitoring.
2. V-mount battery can be used. It can be mounted to V-mount plate, power for both transmitter
and camera.
3. The receiver supports HDMI and SDI output screen switching, or display simultaneously.Mobile
phones and tablets can monitor video images with apps.(both for apple and android devices).

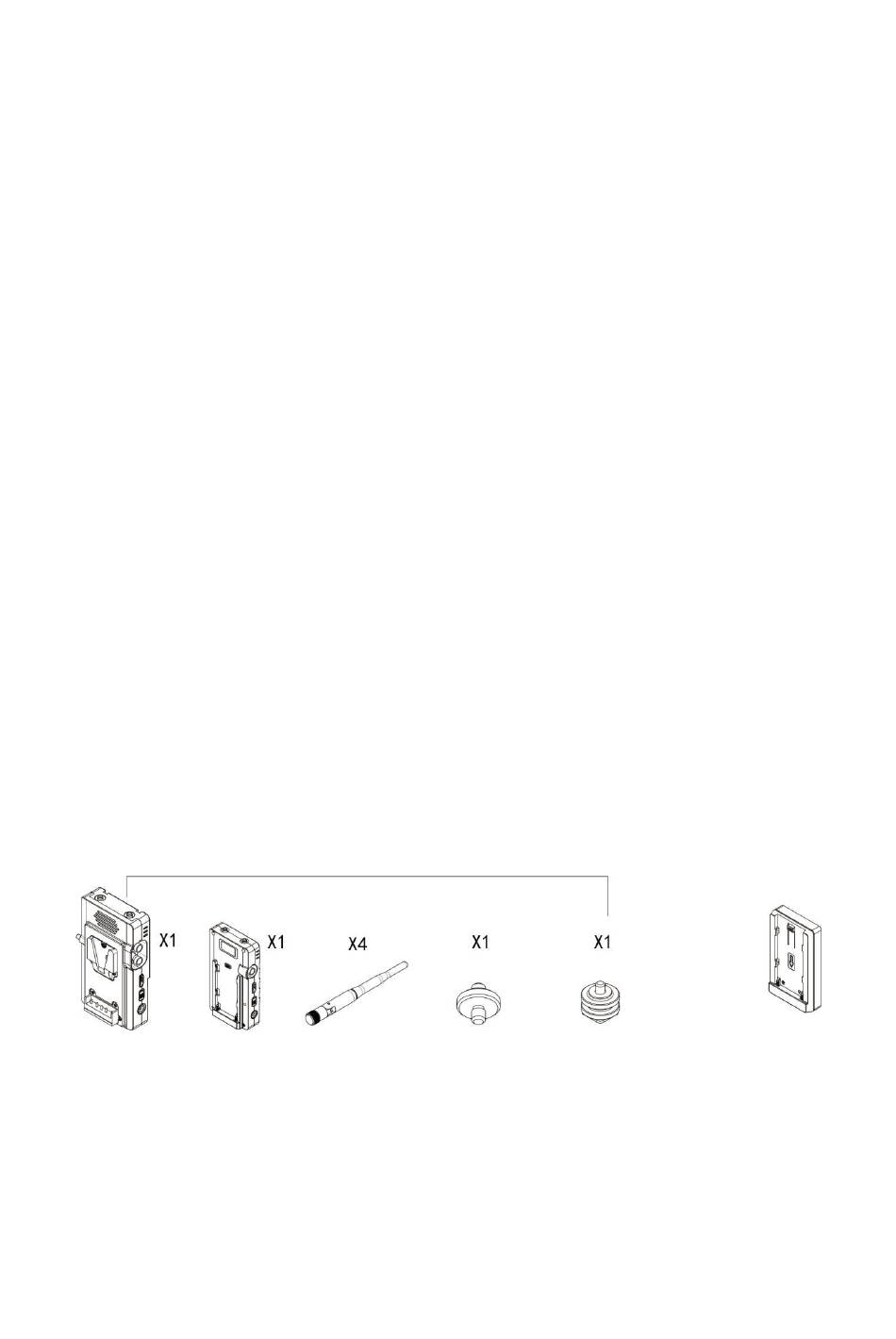

Product List
Package Contents
Optional
NP battery plate
Cold shoe
Transmitter
Receiver
Antenna
1/4screw

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Crystal-V and is the answer not in the manual?

Questions and answers

Summary of Contents for CAME-TV Crystal-V

  • Page 1 CRYSTAL-V Wireless Video System Thank you for purchasing CAME-TV Crystal-V wireless video Transmission system. This product adopts the latest image encoding and decoding technology and 5G transmission technology to achieve ultra-low delay effect.Supports both HDMI and SDI input and output, and outdoor distances up to 500 meters (1,640 feet).
  • Page 2 Specification: Product Transmitter Receiver Frequency 5.180GHZ Antenna 4DB knife-like dual antenna Network 10MHz Bandwidth Power DC2.1，7-24V Interface USB Port Output DC voltage 5V-2A Short press ‘Channel’ SDI/HDMI button about 1S to switch Channel HDMI、SDI、HDMI&SDI，3 Switch different Channels Input SDI&HDMI input SDI&HDMI output Branch(Max) simultaneously...
  • Page 3 Product Instruction: Receiver 1. Antenna port 2. Heat emission hole 3. 1/4screw hole 4. Select Channel Button 5. Network Led 6. Video Led 7. Power Led 8. SDI input 9. HDMI input 10.Power Switch 11.DC input 12.OLED Screen 13.Battery press Clasp Transmitter 1.
  • Page 4 2. The transmitter and receiver should be at least 1 meter apart. CRYSTAL-V APP Installation 1. Download APP App Store or Google Play by Search CRYSTAL-V to install, or scan below QR code GOOGLE PLAY APP STORE 2.Video transmission system at working status, the receiver will emit a begin with CAME - TV - V WIFI signal, using a mobile phone connection, and then open the APP can receive images.
