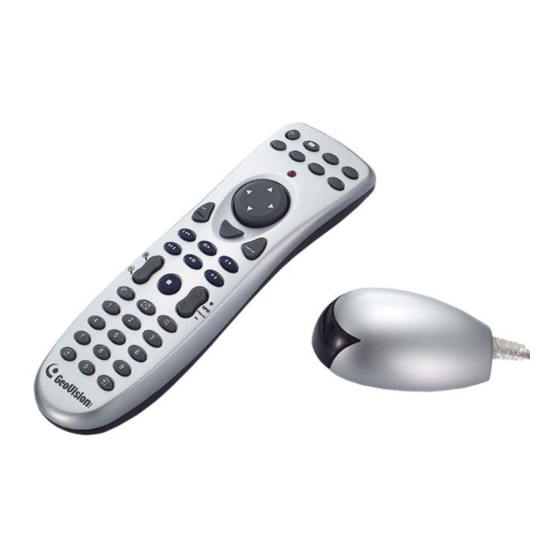

GV-IR Remote Control
User's Manual
IRV10-C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GV-IR and is the answer not in the manual?

Questions and answers

Related Manuals for GeoVision GV-IR

Summary of Contents for GeoVision GV-IR

  • Page 1 GV-IR Remote Control User’s Manual IRV10-C...
  • Page 2 9F, No. 246, Sec. 1, Neihu Rd., Neihu District, Taipei, Taiwan Tel: +886-2-8797-8377 Fax: +886-2-8797-8335 http://www.geovision.com.tw Trademarks used in this manual: GeoVision, the GeoVision logo and GV series products are trademarks of GeoVision, Inc. Windows and Windows XP are registered trademarks of Microsoft Corporation. July 2012...

  • Page 3: Table Of Contents

    GV-IR Remote Contents GV-IR Remote Control....................1 Installation ........................1 Requirements ......................2 Inserting Batteries ....................2 Remote Control Buttons ..................2 Changing the Main System OSD options ..............4 Changing the ViewLog OSD options ..............6 Fast Key Reference....................7 Troubleshooting.....................10...

  • Page 4: Gv-Ir Remote Control

    Plug the receiver into a USB port. Immediately you are able to use the remote control. Note: GV-IR Remote Control is a plug-and-play device. You don’t need to install any driver or run any program for using it. When you install the GV-System for the first time, you will be prompted to install IR Remote Control.

  • Page 5: Requirements

    Requirements Make sure the following requirements have been met: Operating System Requirements  32-Bit: Windows XP / Windows Vista / Windows 7 / Windows Server 2008  64-Bit: Windows 7 / Windows Server 2008 R2 Software Requirements GV-System V8.5.0.0 or later Note: There are three types of remote controls, A, B and C type.
  • Page 6 GV-IR Remote Closes the OSD menu; Returns to the Cancel previous menu; Calls up the menu to exit Main System or ViewLog Previous Event Rewinds to view the previous event Next Event Forwards to view the next event Play/Pause Plays and pauses a video file...

  • Page 7: Changing The Main System Osd Options

    Changing the Main System OSD options To change the Main System on-screen display (OSD) options with the remote control, follow the steps below: Press Main System to enter the Main System mode. Press OK/Menu to open the OSD (see Figure 1). Direction to select a menu you want.
  • Page 8 GV-IR Remote Monitor Selects cameras to start or stop monitoring Schedule Enables and disables schedules Enables and disables the rotation through Camera Scan screen divisions Enables and disables remote applications, including Modem Server, TCP Server, Network Multicast Server, Connect to VSM, Twin...

  • Page 9: Changing The Viewlog Osd Options

    Changing the ViewLog OSD options To change the ViewLog on-screen display (OSD) options with the remote control, follow the steps below: Press ViewLog to enter the ViewLog mode. Press OK/Menu to open the OSD (see Figure 2). Direction to select a menu you want. Press OK/Menu to open the menu.

  • Page 10: Fast Key Reference

    Alt+Num 1 ~ 9 and 0 Changes the camera channel Ctrl+Alt+F1 Switches to the previous screen Ctrl+Alt+F2 Switches to the next screen Alt+'M' Turns the sound on and off * Icon for GeoVision IR Remote Control ** Key fo PC ke yboard...
  • Page 11 Switches the screen division Alt+'M' Turns the sound on and off Changes the Time Setting; Changes the camera 1 ~ 9,0 Alt+Num 1 ~ 9 and 0 channel * Icon for GeoVision IR Remote Control ** Key for PC keyboard...
  • Page 12 GV-IR Remote PTZ Camera Icon * Key ** Function Alt+ ' ← ', Al t+ ' → ' Controls PTZ camera Alt+ ' ↑ ', Alt+ ' ↓ ' Ctrl+Enter Opens the OSD menu; Enter the settings Closes the OSD menu; Return to the previ...

  • Page 13: Troubleshooting

    Troubleshooting Use the following information to solve common problems. The LED does not blink when a button is pressed. Replace the batteries. See "Inserting batteries".  The LED blinks when a button is pressed, but the system does not respond. Make sure that you are less than 7-meter operating distance and 30-degree ...
  • Page 14 GV-IR Remote Un-check Enable Hot Keys or change the conflicting hot keys. Use the GvKeyTest program to detect any conflicting registered hot keys.  Go to :\GV-System folder\ and run GvKeyTest.exe. Click the Test button, and the test results will show you which hot keys have been registered by other applications.
