- Page 1 Functionalities of Smarty intelligent electricity meters Technical description...
- Page 3 Functionalities of Smarty intelligent electricity meters Technical description | 11.2017...
-
Page 5: Table Of Contents
Overview Maintenance port Seals Types of electricity meters Power line communication Meter dimensions Screen layout Screen: Zone 4 in detail Operating modes and displayed values Customer port Built-in relays Breaker... -
Page 7: Maintenance Port

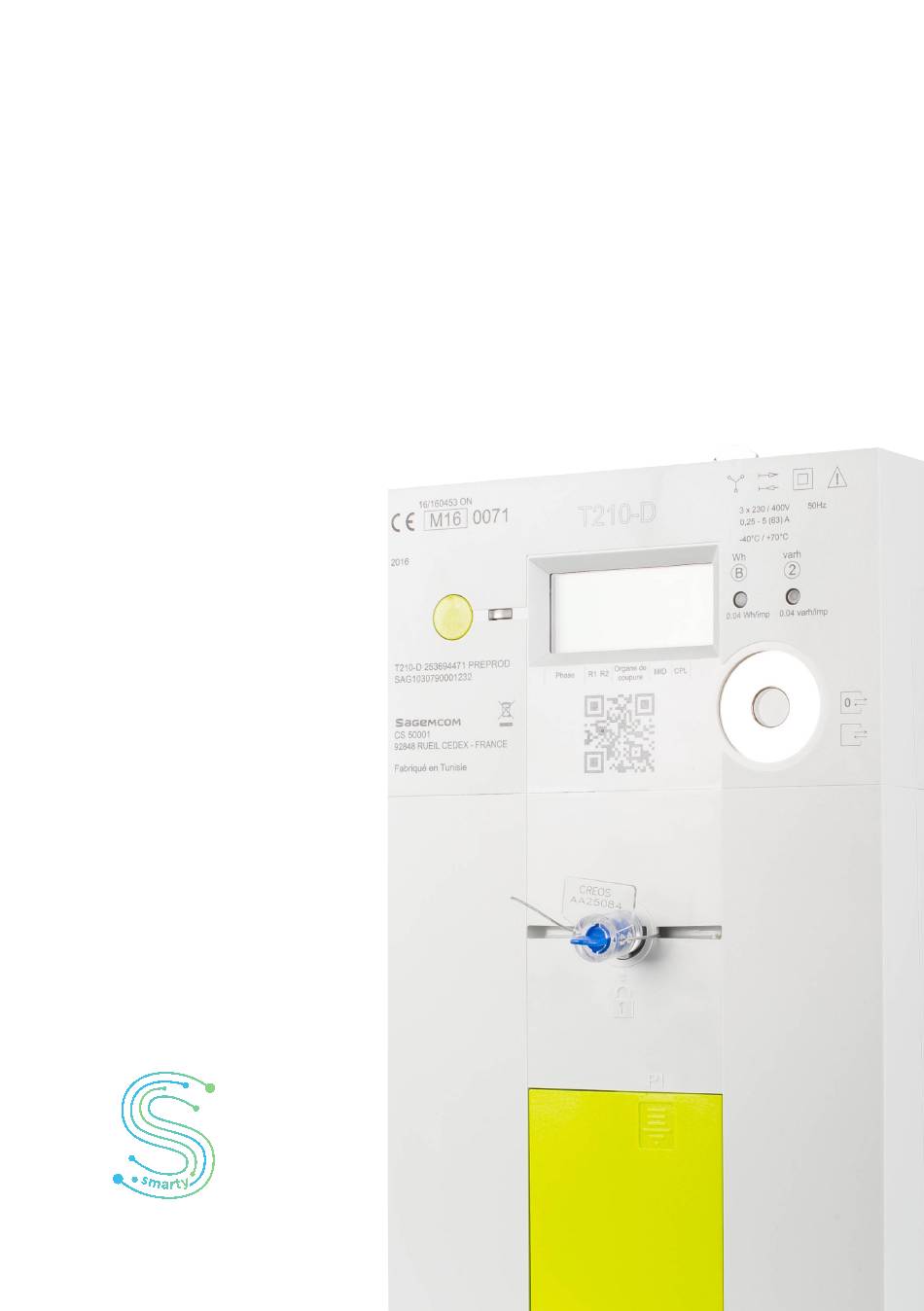

Removal of the cover by a non-authorised person represents attempted fraud and may result in legal action. Types of electricity meters There are three types of Smarty electricity meters: • 63A meter • 100A meter • indirect meter with current transformers The meter type is indicated on the top right-hand side of the box. -
Page 8: Power Line Communication
• Meter communicates in one phase only • Protocol used: PLC G3 For more information, visit the website www.g3-plc.com The technology used by Smarty is identical to that of Linky, the communicating meter fitted by Enedis in France. For more information, visit the website: www.enedis.fr/linky-le-compteur-communicant-derdf... -
Page 9: Meter Dimensions
Meter dimensions 63A meter / Indirect meter with TI (dimensions in mm) Back Side Front 100A meter (dimensions in mm) Back Side Front... -
Page 10: Screen Layout
Screen layout The screen of your Smarty meter has three lines and it is split into four zones. Zone 1 OBIS code Zone 3 Zone 2 Unit of Value measurement Zone 4 More technical status indicators (see next chapter) Example... -
Page 11: Screen: Zone 4 In Detail
Screen: Zone 4 in detail Zone 4 of the screen of your meter is dedicated to the more technical status indicators. The 6 different statuses are explained in detail below: Phase presence Communication indicator Number displayed if phase is Power line present. -
Page 12: Operating Modes And Displayed Values
To consult the same values and manually switch to the next one, press the green button again. Whether you are in automatic or manual mode, your Smarty meter always displays the same values, one after another. Each value (index) is identified by a code. - Page 13 The table below shows the displayed values in the order in which they appear on the screen in automatic or manual mode: OBIS codes in automatic or manual mode 1.8.0 Current index of active energy consumed 2.8.0 Current index of active energy produced 3.8.0 Current index of reactive energy consumed kVArh...
- Page 14 3 2 . 7 . 0 2 3 0 In expert mode, your Smarty meter always displays the same values, one after another. Each value (index) is identified by a code. The code 1.8.0, for example, gives you the total active energy consumption...
- Page 15 The table below shows the displayed values in the order in which they appear on the screen in expert mode: OBIS codes in expert mode Test screen 1.8.0 Current index of active energy consumed 2.8.0 Current index of active energy produced 3.8.0 Current index of reactive energy consumed kVArh...
-
Page 16: Customer Port
It is strictly forbidden for customers to interfere with these relays. All tampering is detected. Next to these two relays, Smarty also has a built-in M-Bus port that enables an intelligent gas, water or heat meter to be connected. -
Page 17: Breaker
Breaker Smarty, your intelligent electricity meter, has a shut-off element known as a “breaker.” The breaker can be triggered remotely and enables a device to be connected or disconnected. It also monitors the power to which the customer has subscribed and the breaker trips in case of exceeding this limit. - Page 19 Breakdowns & emergencies Infoline Electricity network Customer service 24 / 7 8002-9900 2624- 2624...
