CUMMINS ALLISON JetScan MPX 8200 User Manual

Automatic-strapping module and corner module

Hide thumbs

Table Of Contents

Getting started

JetScan

MPX 8200

Automatic-strapping module

and corner module

User guide

| | 1

Table of Contents

Need help?

Do you have a question about the JetScan MPX 8200 and is the answer not in the manual?

Questions and answers

Michelle

April 21, 2025

How do you clear a upper offsort pocket

1 comments:

Mr. Anderson

May 10, 2025

To clear the upper offsort pocket on a Cummins Allison JetScan MPX 8200:

1. Open the upper-front access door.
2. Carefully remove the jammed document and any nearby documents at risk of causing a jam.
3. Use the Jog Forward button (if shown) to move the transport path and help free the document.
4. Check for and remove any obstructions or foreign objects.
5. If there are multiple jams, use the Prev or Next buttons to locate them and repeat the steps.
6. After clearing all jams, close the upper-front access door.
7. Press Flush to clear the transport path; motors will run briefly and then stop automatically.

This answer is automatically generated

Summary of Contents for CUMMINS ALLISON JetScan MPX 8200

Page 1 Getting started JetScan MPX 8200 ® Automatic-strapping module and corner module User guide | | 1...
Page 2: Safety Information, Power Specifications
Safety information, power specifications High voltage inside. Risk of electric shock. Do not attempt repairs. Repairs must be made by authorized Cummins Allison personnel. Use grounded plug and properly grounded outlet. Read and understand all instructions before use. Risk of injury.
Page 3: Table Of Contents
• Can be configured to strap any denomination. • Uses a two-bin, strap-collection system for continuous operation. Each bin can be configured to hold 10, 20 or 30 straps. A corner module is used to configure a JetScan MPX 8200 system with automatic- strapping modules into an L- or U-shaped layout for placement in smaller locations and improved ergonomics.
Page 4: Strapping Module Diagram
Strapping module diagram Item Item Upper-front access door Lower paper-roll access door (transport access door) Transport path Paper roll Note stacker No. 2 (left) Printer ribbon cartridge Note stacker No. 1 (right) Collection bin No. 1 (right) Strap head Collection bin No. 2 (left) Strapping section 4 | JetScan MPX 8200 strapping and corner module | Strapping module diagram...
Page 5 Strap head The surface below the strap head on a strapping module becomes hot during machine operation. Avoid contact. Burn hazard. Hot surface below strap head. Do not touch. Item Strap head location Strap head Hinges on upper-front access door Hinges on the left and right side of the upper-front access door on the strapping module are pinch points.
Page 6: Corner Module Diagram
Corner module diagram Item Top door closed Paper-roll storage access panel on Top door open Paper-roll storage access panel off 6 | JetScan MPX 8200 strapping and corner module | Corner module diagram ®...
Page 7: Maintaining Bins
Maintaining bins Empty the strapped-note collection bin when: • One bin is full. • Two bins are full, and the machine stops processing. Empty both collection bins to continue operation. To empty a full bin: 1. Locate the full bin: • The Alert: Strapper bin limit reached! screen identifies a full bin in green, as shown below. • A green light also illuminates on the top of the bin that is full. 2. Remove the full bin and empty its contents. The top of any strapping module can be used as a work surface.
Page 8: Maintaining Paper Rolls
Maintaining paper rolls To remove an existing paper roll or an empty paper-roll core from a strapping module: 1. Open the upper-front access door and lower paper-roll access door. Burn hazard. Hot surface below strap head. Do not touch. Strap head See the section for more information. 2. Disengage the loose end of the strapping paper from the strap head by doing one of the following: a.
Page 9 3. Unwind approximately 18 inches Acceptable edge (46 cm) of paper. Make sure the end of the paper has a clean, straight edge. It is recommended to cut a new edge with Unacceptable scissors each time paper is loaded. edge 4.
Page 10: Maintaining Printer Ribbon Cartridge
Maintaining printer ribbon cartridge To change the printer ribbon cartridge on a strapping module: 1. Open the upper-front access door and lower paper-roll access door. 2. Firmly grasp the top and bottom of the printer ribbon cartridge and pull outward to remove the cartridge from its holder. Discard the used cartridge. 3.
Page 11: Configuring Strap Length And Printing
Configuring strap length and printing See the JetScan MPX 8200 operating instructions for complete information on system setup. To tighten or loosen strap length, set bin limits and set facing: 1. Press the Menu tab on the main-processing screen. 2. Press Setup on the Menu tab screen. 3. Press Configure Sort Modes and then press the desired sort mode button to prompt a Configure Sort Mode screen, as shown below.
Page 12 2. Press Setup on the Menu tab screen. 3. Press Processing Type Setup to prompt the Settings screen below. The Machine Setup and Backup/Restore tabs are for use only by trained Cummins Allison service technicians. 4. Press Strap Print to prompt the Strap Print Settings screen. 12 | JetScan MPX 8200 strapping and corner module ...
Page 13 5. Press On or Off to enable or disable printing of the following information on strapping paper: Text (custom message), Date, Time and Operator ID. Operator ID refers to the user who is signed onto the system during the strapping operation. 6.
Page 14 8. The value under Characters Remaining on the bottom right side of the screen indicates character-limit status. If the number is positive and highlighted in green, additional characters can be used. If the number is negative and highlighted in red, the 40-character limit is exceeded. If the combined settings are not reduced to 40 characters or less, the Text (custom message) is cut off after the 40th character.
Page 15: Stopping Conditions And Recovery Steps
See the JetScan MPX 8200 user guide and operating instructions for additional stopping conditions and recovery steps. The JetScan MPX 8200 system can stop for a variety of reasons, all of which require action by the user. When an error screen appears, follow instructions on the screen to recover from the error.
Page 16 Bin alert - two reach limit Condition This screen appears when the configured bin limit is reached on both bins in one strapping module. The MPX 8200 stops processing until this error is corrected. The screen shows: • The bins at limit, which are highlighted in green. • The associated strapping module. Action Follow the steps below: 1.
Page 17 Bin alert - out of place Condition This screen appears when a bin is not fully inserted into a strapping module and a sensor error occurs. The screen shows: • The bin that is out of place, which is highlighted in yellow. • The associated strapping module. Action Follow the steps below: 1. Push the bin fully into the strapping module. 2.
Page 18 Jam recovery When a jam condition occurs in the strapping module, the MPX 8200 motors immediately stop and a jam screen appears, describing the problem and how to recover from it. Each jam type has a unique screen. To recover from all jam conditions: Risk of damage to critical machine components. Read and follow all instructions shown on main-processing screen.
Page 19 4. Remove the jammed document and any document that is nearby and at risk of causing an additional jam. Use care when removing documents in the strap head area. Burn hazard. Hot surface below strap head. Do not touch. Strap head See the section for more information.

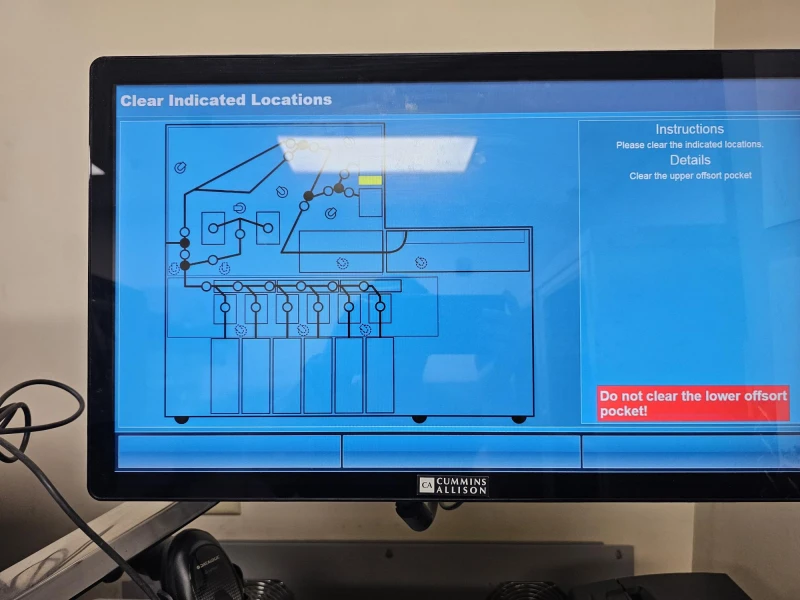

Page 20 10. The Clear Indicated Locations screen appears when steps 8 and 9 are complete. The screen indicates locations where documents must be removed. 11. Review the system diagram under Location on the right side of the screen. The red component is shown in detail on the left side of the screen. Other locations where documents must be removed are marked in pink.
Page 21 To prevent counting errors, only reprocess documents that were removed as instructed. 16. Continue processing the transaction. Contact a Cummins Allison representative if jam recovery is not successful or a screen cannot be cleared. Stopping conditions and recovery steps | JetScan MPX 8200 strapping and corner module | 21 ®...
Page 22: Daily Cleaning Procedures
Daily cleaning procedures See the JetScan MPX 8200 user guide for additional cleaning procedures. Daily cleaning is required to ensure maximum productivity and reliability. In some instances, it may be necessary to perform these procedures more than once a day.
Page 23 Turn OFF MPX 8200 1. Press MPX 8200 master power switch to turn power OFF. Switch is not illuminated when power is OFF. Transport assembly on strapping, corner modules 1. Open all doors to service position on strapping modules. Vacuum main transport- belt path following normal document flow. 2.
Page 24 3. Clean upper transport section on strapping module as follows: a. Lift green latch, raise upper transport plate, and hold it in service position. b. Wipe upper and lower transport plates with a dry microfiber towel. c. Lower upper transport plate to operating position. 4.
Page 25 Escrow pockets on strapping module 1. Repeat steps below for both escrow pockets: a. Hold tamper open. b. Vacuum interior of escrow pocket. c. Close tamper. 2. Repeat steps below for both escrow pockets: a. Pull green knob and raise plate to service position. b.
Page 26 Collection bin, paper roll bays on strapping module 1. Remove both collection bins from bay. 2. Vacuum base of paper roll bay and interior of collection bin bay. 3. Inspect bins for wear. 4. Return bins to bay. 5. Close all doors on strapping module. Exterior surfaces 1. Use a Simple Green Safety Towel to clean exterior machine surfaces as needed.
Page 27 Notes Notes | JetScan MPX 8200 strapping and corner module | 27 ®...
Page 28 852 Feehanville Drive Mt. Prospect, IL 60056 T 800 786 5528 cumminsallison.com This manual contains proprietary information of Cummins Allison. It is intended solely for the information and use of parties authorized by Cummins Allison to maintain the equipment described herein. Such proprietary information may not be used, reproduced, or disclosed to any other parties for any other purpose without express written permission of Cummins Allison.
