Sports Manual for 20-button Remote Control
WESTERSTRAND URFABRIK AB
Box 133
SE-545 23 TÖREBODA
Sports Manual for 20-button Remote Control
LED 140
LED 140
Tel +46 506 48 000
Fax +46 506 48 051
Internet:
www.westerstrand.se
E-mail:
info@westerstrand.se
Document: 4042en04.doc
Author: MS/CF
Date: 2015-04-17
Page: 1 of 7
Advertisement
Table of Contents
Summary of Contents for WESTERSTRAND LED 140
- Page 1 Document: 4042en04.doc Sports Manual for 20-button Remote Control Author: MS/CF Date: 2015-04-17 LED 140 Page: 1 of 7 Sports Manual for 20-button Remote Control LED 140 WESTERSTRAND URFABRIK AB Box 133 Tel +46 506 48 000 Internet: www.westerstrand.se SE-545 23 TÖREBODA...

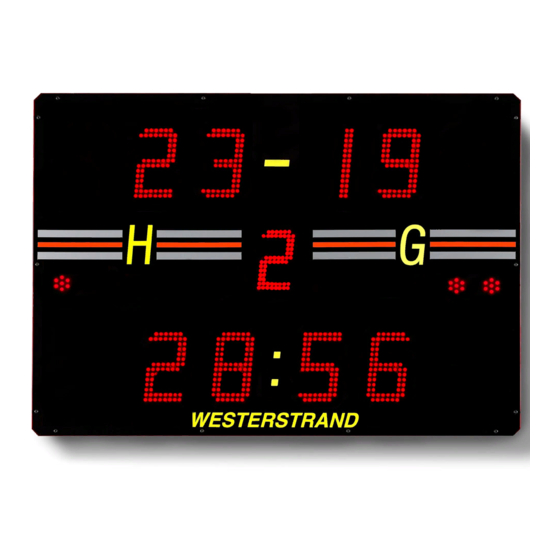

- Page 2 Icehockey The Score Board The LED 140 score board is made up of 13 LED display characters. Information shown in each position is different depending on which sport is being played. When a sport is not being played the score board can be used to show real-time. A piezoelectric horn is used to signal end of period, end of time out and other events of the match.
- Page 3 Document: 4042en04.doc Sports Manual for 20-button Remote Control Author: MS Date: 2015-04-17 LED 140 Page: 3 of 7 Starting the Remote Switch on the power to the LED score board and the remote control. When the WESTERSTRAND remote has been started the display shows:...
- Page 4 Document: 4042en04.doc Sports Manual for 20-button Remote Control Author: MS Date: 2015-04-17 LED 140 Page: 4 of 7 SETTINGS Navigate to menu SETTINGS from the home screen. Function SETTINGS is not shown if a sport is active. All changes made to the settings will be saved in non-volatile memory and restored at start-up.
- Page 5 Document: 4042en04.doc Sports Manual for 20-button Remote Control Author: MS Date: 2015-04-17 LED 140 Page: 5 of 7 In-game Functions When a sport has been started there are several in-game functions available from the Function Menu. The F key is used to open this menu. Please see section “Function keys” below for information about which functions are available in which sports.
- Page 6 Document: 4042en04.doc Sports Manual for 20-button Remote Control Author: MS Date: 2015-04-17 LED 140 Page: 6 of 7 ABSOLUTE TIME If ABSOLUTE TIME is Off then each half starts from 00:00. If ABSOLUTE TIME ABSOLUTE TIME is On than time is displayed from the beginning of the match, e.g. in handball the Off >...
- Page 7 Document: 4042en04.doc Sports Manual for 20-button Remote Control Author: MS Date: 2015-04-17 LED 140 Page: 7 of 7 FUNCTION KEYS Some functions can be reach by pressing a numeric key. In the table below the functions are listed. The number in the brackets indicates the function key. Where two numbers are shown, the first is for the home team and the second is for the guest team.
