Summary of Contents for Deco Style DS-FSS 500

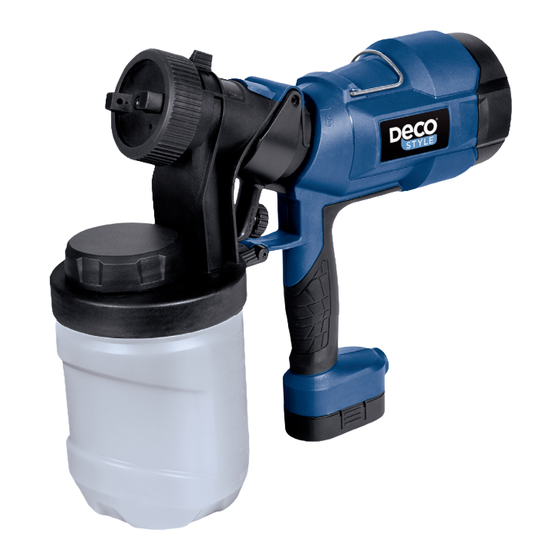

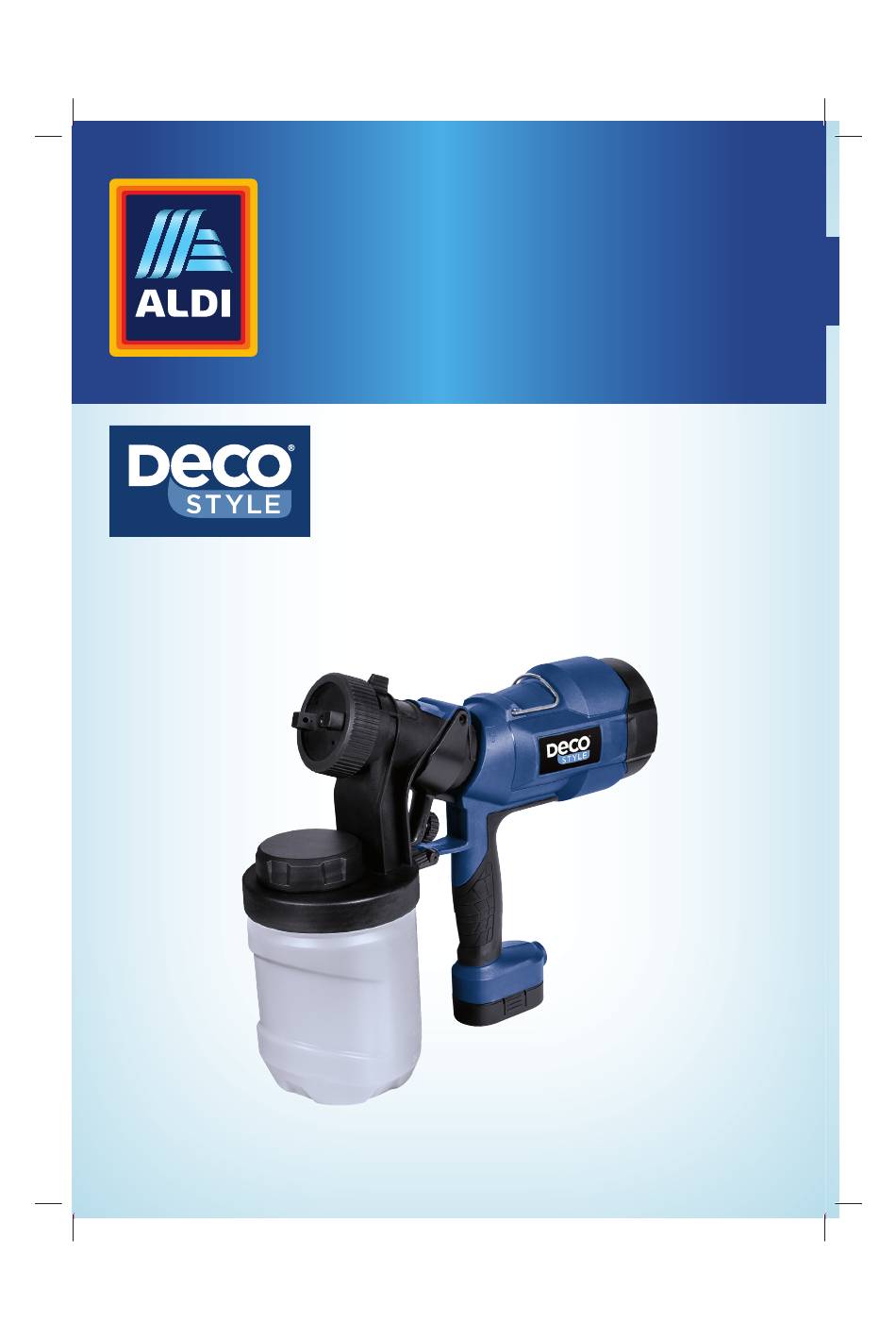

- Page 1 User Manual PAINT SPRAY SYSTEM ELECTRIC DS-FSS 500 Original instructions Layout_DS_FSS_500_EX_UK_SPK7.indd 1 Layout_DS_FSS_500_EX_UK_SPK7.indd 1 19.11.2020 15:15:11 19.11.2020 15:15:11...
-
Page 2: Table Of Contents
Contents Package contents ................ 3 Components ..................6 General information ..............8 Reading and storing the user manual ...........8 Explanation of symbols ..............8 Safety ..................10 Intended use ..................10 Residual hazards ................11 Safety information ................11 Using for the first time ...............18 Checking the fine paint sprayer and items supplied .... -
Page 3: Package Contents
Package contents Package contents 16 17 Package contents Layout_DS_FSS_500_EX_UK_SPK7.indd 3 Layout_DS_FSS_500_EX_UK_SPK7.indd 3 19.11.2020 15:15:20 19.11.2020 15:15:20... - Page 4 Package contents Layout_DS_FSS_500_EX_UK_SPK7.indd 4 Layout_DS_FSS_500_EX_UK_SPK7.indd 4 19.11.2020 15:15:20 19.11.2020 15:15:20...
- Page 5 Package contents Layout_DS_FSS_500_EX_UK_SPK7.indd 5 Layout_DS_FSS_500_EX_UK_SPK7.indd 5 19.11.2020 15:15:23 19.11.2020 15:15:23...
-
Page 6: Components
Package contents Components Suspension fixture Motor unit Connection cable Union nut (spraying unit for indoor wall paints) Lever for setting the spray width (1x per spraying unit) Trigger (1x per spraying unit) Setting screw for controlling the material quantity (1x per spraying unit) Paint tub (1x per spraying unit) Spraying unit for indoor wall paints Lid (1x per paint tub) - Page 7 Package contents Lid seal (1x per lid) Tub seal (1x per paint tub) Air filter (motor unit) Filter cover (motor unit) Layout_DS_FSS_500_EX_UK_SPK7.indd 7 Layout_DS_FSS_500_EX_UK_SPK7.indd 7 19.11.2020 15:15:28 19.11.2020 15:15:28...
-
Page 8: General Information
General information General information Reading and storing the user manual These operating instructions are a part of this fine paint sprayer. They contain information of importance for your safety, for the use of the product and for its care. Read through the operating instructions carefully before you start using the fine paint sprayer. - Page 9 General information This symbol draws attention to additional information about assembly or use. Declaration of conformity (see the section “Declaration of conformity”): Products bearing this symbol comply with all applicable Community legislation of the European Economic Area. Read the operating instructions. This equipment complies with protection class II.
-
Page 10: Safety
Safety Safety Intended use This fine paint sprayer is designed solely for private users in the hob- by and DIY sectors. The fine paint sprayer is suitable for spraying: • solvent-based and water-soluble indoor wall paints, • lacquers, • glazes, •... -
Page 11: Residual Hazards
Safety • operation or maintenance of the fine paint sprayer by persons who do not understand the related hazards and/or are not famil- iar with handling the fine paint sprayer. Residual hazards Even when the fine paint sprayer is used as intended, it is impossi- ble to completely rule out non-obvious residual risks. - Page 12 Safety 1. Workplace safety a) Keep your work area clean and well lit. Untidy or unlit work areas can result in accidents. b) Do not use this power tool in an area where there is a risk of explosion and where there are inflammable liquids, gases or dust.
- Page 13 Safety use a residual current device (RCD) circuit breaker. The use of a residual current device (RCD) circuit breaker will reduce the risk of suffering an electric shock. 3. Safety of persons a) Be careful, watch what you are doing and be sensible and responsible when using an electric power tool.
- Page 14 Safety h) Do not allow yourself to be lulled into a false sense of securi- ty and do not ignore the safety regulations covering electric power tools, even if you are familiar with the power tool af- ter having used it many times. Carelessness can lead to serious injuries in just a fraction of a second.
- Page 15 Safety and the job in hand. Using electric tools for purposes other than the one for which they are designed can result in dangerous situations. h) Keep the handles and grip surfaces dry, clean and free from oil and grease. If the handles and grip surfaces are slippery, it will not be possible to operate and control the power tool safely in unforeseen situations.
- Page 16 Safety − Be sure to cover over power sockets and switches with adhesive tape. There will be a risk of an electric shock if spray material gets inside. − Do not use the fine paint sprayer in premises where the explosion protection directive applies.
- Page 17 Safety − All surfaces and objects that you do not want to spray with the spray material must be covered or removed from the work area. When working with the fine paint sprayer remember that, for ex- ample, wind can spread the paint mist over large distances and cause damage.
-
Page 18: Using For The First Time
Using for the first time Using for the first time Checking the fine paint sprayer and items supplied Risk of damage! If you open the packaging without care using a sharp knife or other pointed objects, this could quickly cause damage to the fine paint sprayer. -
Page 19: Selecting The Material And Spraying Unit
Using for the first time Selecting the material and spraying unit Risk of damage! Non-approved materials could damage the fine paint sprayer. − Note the list of materials that are approved for use and those that are not approved for use. Approved materials Non-approved materials - Indoor wall paint (emulsions etc.) -
Page 20: Filling In The Material
Using for the first time − Stir the material thoroughly and thin it in the paint tub in accord- ance with the thinning recommendation. Thinning Nozzle Spray material recommendation diameter Glazes, wood preservatives, stains, oils, Unthinned 1.0 mm disinfectants (max. 40 DIN-sec) Solvent-based or water-soluble lac- Thin by 0-10 % 1.0 mm... -
Page 21: Attaching/Replacing The Spraying Unit
Using for the first time 3. Use a suitable funnel in order to transfer the prepared material into the paint tub without spilling any. 4. Screw the lid clockwise onto the paint tub in order to close the paint tub again. Take care not to tilt the lid while screwing it on and make sure that the paint tub is fully closed. -
Page 22: Operation
Operation Operation Risk of injury! Improper handling of the fine paint sprayer could result in injuries. − Before you begin your work, make sure that the power cable does not become a tripping hazard. − Always wear the necessary protective equipment such as a breathing mask and make sure there is enough ventilation! Risk of damage! Improper handling of the fine paint sprayer could result in damage. -
Page 23: Adjusting The Spray Pattern
Operation Adjusting the spray pattern Risk of injury! Improper handling of the fine paint sprayer could result in injuries. − Avoid pulling the trigger at all costs while you adjust the air cap. − Each time before making an adjustment you must make sure that the fine paint sprayer is OFF. -
Page 24: Controlling The Material Volume
Operation Spray pattern of the spraying unit for indoor wall paints 1. Undo the union nut ( ) a little by turning counter-clockwise. 2. Turn the air cap ( ) into the required spray pattern position (see Fig. G). 3. Tighten the union nut by turning clockwise, holding the air cap firmly as you do so. -
Page 25: Changing The Nozzle Set
Operation Changing the nozzle set This product comes with a 2.5 mm nozzle set (pre-fitted) for spraying unit 9 with 1200 ml tub volume as well as a separate 3.5 mm nozzle set. For spray material of lower viscosity the manufacturer recommends the spraying unit ( ) with the pre-fitted 1.0 mm nozzle and 900 ml tub volume, and for spray materials of higher viscosity the manufac-... -
Page 26: Instructions For Use
Operation 7. Insert the needle of the required nozzle set into the mount inside the spraying unit. When doing so, make sure that the needle is correctly aligned for the side grooves at the end of the needle to engage in the corresponding recesses of the mount inside the spraying unit. - Page 27 Operation To become acquainted with the fine paint sprayer, carry out a spray- ing test on a cardboard box or similar surface. You can then deter- mine which settings are best for the material. − Begin spraying outside the area to be sprayed and avoid inter- rupting the spraying inside the area to be sprayed.
-
Page 28: Care And Maintenance
Care and maintenance Care and maintenance Risk of short-circuiting and damage! Damaged switches, power plugs and power cables could cause short-circuiting. Improper handling of the fine paint sprayer could result in damage. − Power plugs, power cables and switches must be regularly checked for damage. - Page 29 Care and maintenance 3. Unscrew the paint tub ( ) from the spraying unit (see Fig. A and K). 4. Dispose of the remaining material properly or put it back into the material can. 5. Pull the intake tube ( ) and the ventilation tube ( ) down and out of their catches on the spraying unit.
-
Page 30: Cleaning The Motor Unit
Care and maintenance Cleaning the nozzle 1. Dismantle the nozzle you want to clean as described in the sec- tion “Changing the nozzle set”. 2. Clean the air cap and the nozzle with a bristle brush and solvent or water. Use the cleaning needle ( ) to clean any clogged openings. - Page 31 Care and maintenance − Check the air filter particularly if you notice a drop in spraying performance or if you can see that dust is collecting at the ventila- tion openings. − Change the air filter if it is heavily soiled. The air filter can be cleaned several times before it needs to be re- placed.
-
Page 32: Storage
Internet at: www.Einhell-Service.com. You will find the latest prices and information there. Please provide the following information when ordering spare parts: • Type: DS-FSS 500 • Einhell article number: 42.600.33 • ID No. of the fine paint sprayer: 21030 •... -
Page 33: Technical Data
Technical data Technical data Model: ..................DS-FSS 500 Article number: .................. 91604 Supply voltage: ............. 220-240 V ~ 50 Hz Power rating: ..................500 W Protection class: ..................II Weight: ....................2.8 kg Tank volume: ................ 900 / 1200 ml Ø nozzles: ................1.0 / 2.5 / 3.5 mm Max. - Page 34 Noise/vibration information Information about sounds and vibrations The values stated above are noise emission values and are therefore not necessarily reliable workplace values. From the interrelation- ship between emission and immission levels it cannot be reliably concluded whether additional precautions are needed or not. Fac- tors with a potential influence on the immission level at the specific workplace include the specifications of the work area and surround- ing area, the duration of exposure, other sources of noise, etc.
- Page 35 Noise/vibration information IMPORTANT! Depending on the type and conditions of use, the following safety precautions must be taken to protect the user: − Try to avoid vibrations as much as possible. − Use only accessories that are in perfect condition. −...
-
Page 36: Disposal
Disposal Disposal Disposing of the packaging Separate the packaging materials by type before disposing of them. Dispose of cardboard in your waste paper contain- er and take plastic film or sheets to your recycling center. Disposing of the fine paint sprayer Waste equipment may not be disposed of with normal house- hold refuse! This symbol draws attention to the fact that under the Directive on... -
Page 37: Troubleshooting Guide
Troubleshooting guide Troubleshooting guide Fault Possible cause Remedy No material at the − Nozzle is clogged. − Clean the nozzle. nozzle. − Intake tube is clogged. − Clean the intake tube. − Setting screw for controlling the − Turn the setting screw for con- material volume is turned too far trolling the material volume to to the left (-). -
Page 38: Declaration Of Conformity
EÚ a noriem pre výrobok Lýsir uppfyllingu EU-reglna og annarra staðla vöru a cikkekhez az EU-irányvonal és Normák szerint a következő konformitást jelenti ki Paint spray system electric DS-FSS 500 (DECO STYLE) 2014/29/EU 2006/42/EC Annex IV 2005/32/EC_2009/125/EC Notifi... - Page 39 Layout_DS_FSS_500_EX_UK_SPK7.indd 39 Layout_DS_FSS_500_EX_UK_SPK7.indd 39 19.11.2020 15:15:34 19.11.2020 15:15:34...
- Page 40 ALDI STORES LTD. PO BOX 26, ATHERSTONE WARWICKSHIRE, CV9 2SH. ALDI STORES (IRELAND) LTD. PO BOX 726, NAAS, CO. KILDARE. www.aldi.com AFTER SALES SUPPORT 803883 0151 649 1500 01890 946 244 www.einhell.co.uk YEAR MODEL: WARRANTY 03/2021 DS-FSS 500 Layout_DS_FSS_500_EX_UK_SPK7.indd 40 Layout_DS_FSS_500_EX_UK_SPK7.indd 40 19.11.2020 15:15:34 19.11.2020 15:15:34...
