WARNING:
•
This product is to be installed or used in accordance with electrical codes and
regulations.
•
For indoor use only. Do not use in wet locations.
•
If you are unsure any part of these instructions, consult an electrician.
•
Save this instructions sheet. It contains important technical data along with
testing and troubleshooting information which will be useful after installation is
complete.
•
This dimmer are not compatible with standard 3-way or 4-way.
•
Do not disassemble the product, or make repairs yourself. You run the risk of
electric shock and voiding the limited warranty. If you need service, please
contact the after sales services.
•
The load power rating limit of the device as below Specification sheet, do not
exceed the limit.
Package Contents
Smart dimmer *1
Accessories package*1

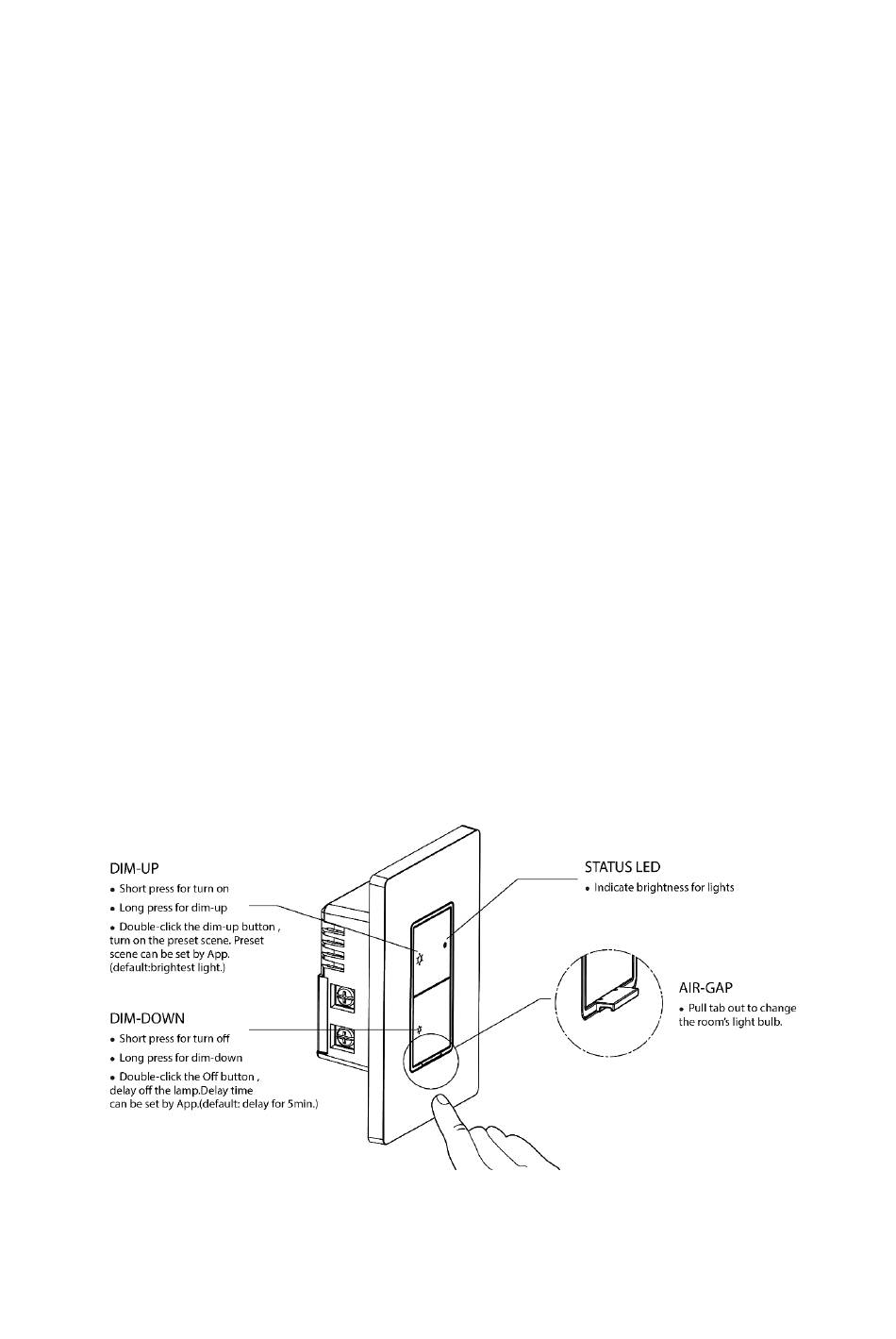

Product Description
The dimmer turns your light smart by enabling you to control them through the smart
home APP on your phone at or away from home.
Advertisement
Table of Contents
Related Manuals for Leedarson HDA11FWB
Summary of Contents for Leedarson HDA11FWB
- Page 1 WARNING: • This product is to be installed or used in accordance with electrical codes and regulations. • For indoor use only. Do not use in wet locations. • If you are unsure any part of these instructions, consult an electrician. •...
- Page 2 Specification Model number HDA11FWB Power supply: 120V~, 60Hz Maximum Load： Incandescent 200W, CFL/LED 100W Operational temperature: 0-40°C Storage Temperature Range -20-60°C Humidity 0-85%,non condensing Radio protocol: 2.4G, IEEE 802.11b/g/n Range: About 40m indoors (depending on building materials) Feature list Function...
- Page 3 Installing dimmer by itself or with multi-gang If installing the dimmer in a single gang application, proceed with Product install introduction. If installing the dimmer in a multi- gang application, proceed with follow: Multi-gang application In multi-dimmer installations, the reduction of the dimmer’s capacity may be required.
- Page 5 3. Mount the dimmer using the screws and attach faceplate. 4. Turn power ON at circuit breaker 5. Quick start guide Step 1: Download the Linkind App on App Store or Google Play. Step 2: Create an account and sign in Step 3: •...
- Page 6 Step 4: Follow the instructions on App. LED Indicator Under normal working state. LED indicator is solid green— turn on or dimming, LED indicator is off —Turn off. Status Behavior Green and Orange To be configured status. scrolling blinking Quick Blinking Orange Connecting to the network Connected to the network Solid Green...
- Page 7 Troubleshooting Problems Possible cause and action LEDs do not dim, have Lamp is not compatible with the dimmer poor dimming Please check from the official website to see if the range, or they flicker/buzz. load is an officially declared compatible lamp. Lights Flickering Lamp has a bad connection Wires not secured firmly under terminal screws of...
- Page 8 receiver is connected. -Consult the dealer or an experienced radio/TV technician for help RF Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body.
