DELUXE TABLET HOLDER
7817 and 7817 BALL MT
WHAT'S INSIDE
DUAL WATER BOTTLE
HOLDER MOUNT
7817
SINGLE WATER BOTTLE
HOLDER MOUNT
7817 BALL MT
OR
6
4
x 6
MEDIUM
4
LONG
1

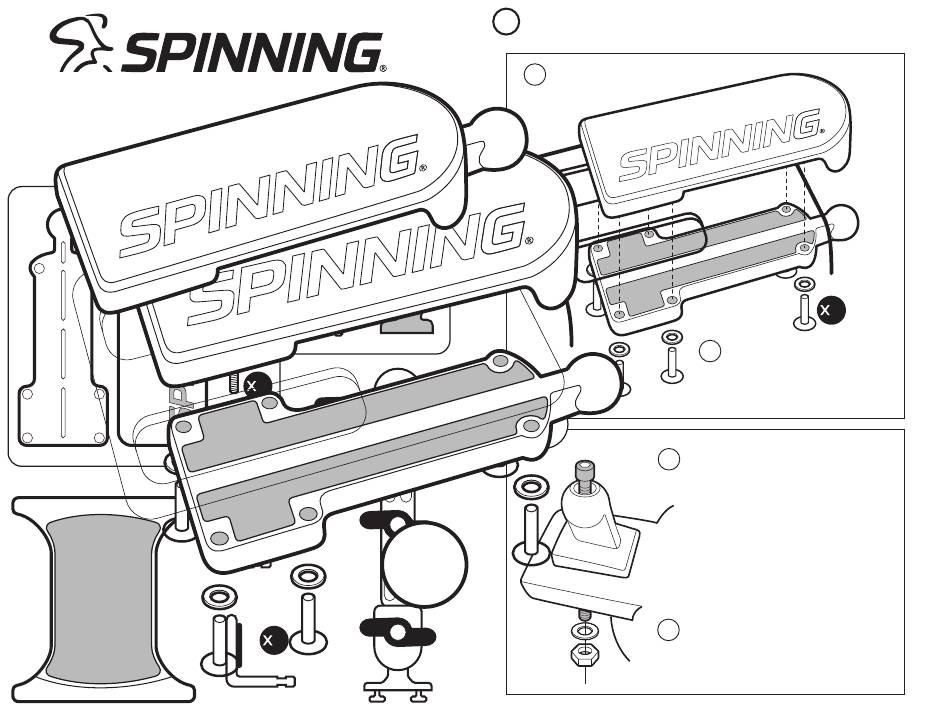

ATTACH THE MOUNT TO THE BARS
POSITION THE MOUNT ON THE
1
BARS AS SHOWN.
OR
1
2
6
2
PLACE WASHERS UNDER
EACH SCREW AND USE
A PHILLIPS SCREWDRIVER
TO SECURE.
PUSH THE BOLT THROUGH
THE BALL AND THREAD IT
ONTO THE CENTER WATER
BOTTLE TAB. YOU MAY NEED
TO REMOVE THE RUBBER
COATING AROUND THE
THREADS. USE A 4mm ALLEN
WRENCH TO TIGHTEN THE
HEX BOLT.
PLACE THE WASHER AND
THEN SECURE THE BOLT BY
TIGHTENING THE NUT TO THE
UNDERSIDE OF THE TAB.
