Limitimer PRO-2000

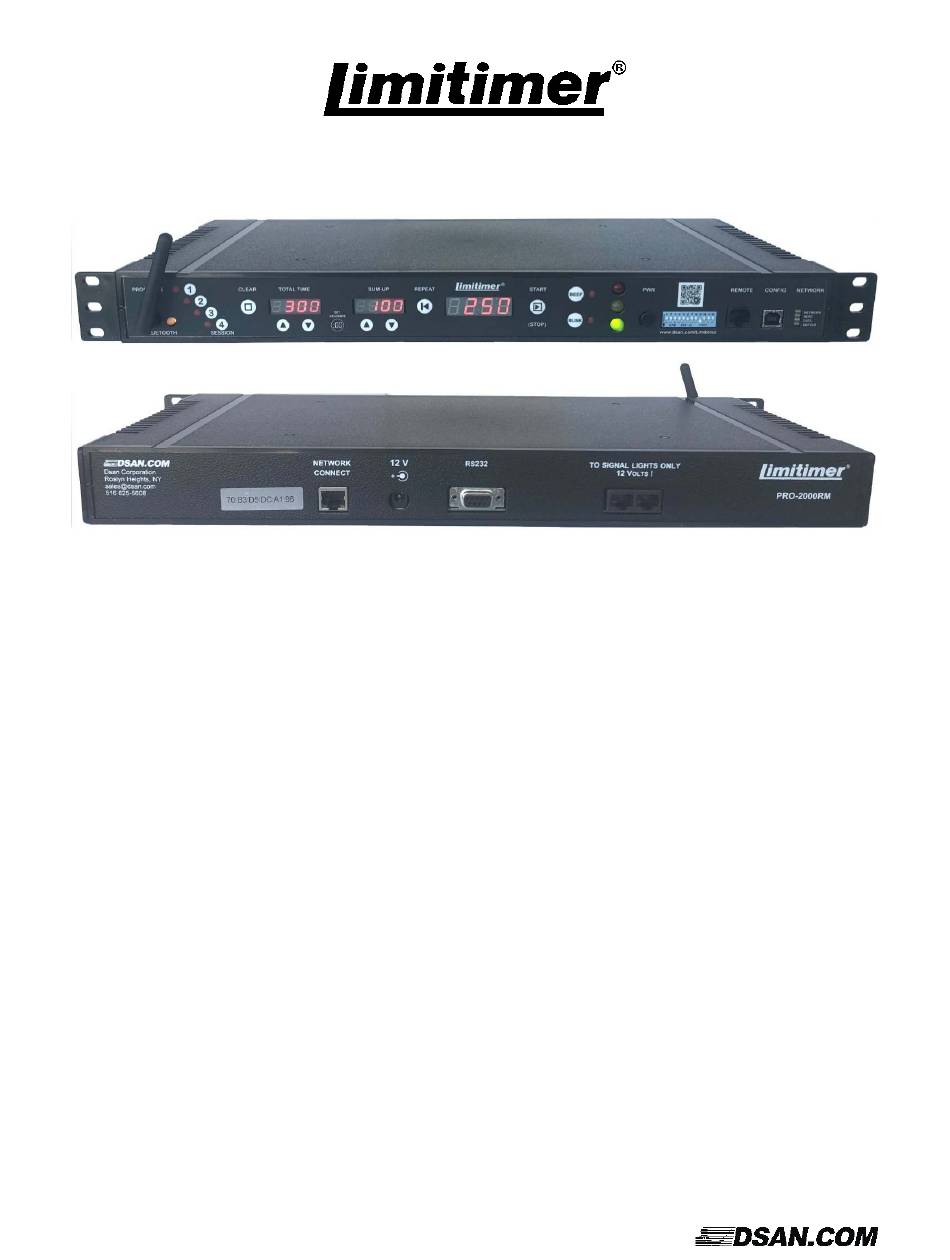

is a speaker timer system for studio installation. Housed in a 1U rackmount
enclosure, it combines the Limitimer controller with an Ethernet port and a serial data port to popular
touch panels and show control systems. It can drive Limitimer signal lights by hardwire, over Bluetooth
wireless, or across local and wide area networks. It can also be controlled by other client-configured
timers in the Limitimer family.
Front DIP switches allow for easy access to set sound cues, volume, counting format, seconds display,
and wireless channels. Through a front panel USB port, a PC can access user guides, set-up examples
and touch panel interface documents, as well as store personal documents or launch an application to
configure network properties (IP address, gateway, mask, port and DHCP).
Timer Operation................................................................
Signal Light Connections...................................................
Wireless Operation............................................................
DIP Switch Settings.............................................................
Network Configuration......................................................
Serial Connection...............................................................
Accessories.........................................................................
Setups..................................................................................
Specifications.....................................................................
Warranty............................................................................
Support...............................................................................
©DSan Corporation
Rackmount
Model: PRO-2000
Contents
Limitimer® Rackmount User Guide
RM
Page
2
3
4
5
7
9
10
12
14
14
14
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DSAN Limitimer PRO-2000
Summary of Contents for DSAN Limitimer PRO-2000
-
Page 1: Table Of Contents
Rackmount Model: PRO-2000 Limitimer PRO-2000 is a speaker timer system for studio installation. Housed in a 1U rackmount enclosure, it combines the Limitimer controller with an Ethernet port and a serial data port to popular touch panels and show control systems. It can drive Limitimer signal lights by hardwire, over Bluetooth wireless, or across local and wide area networks. -
Page 2: Timer Operation
Quick Start – Setup Plug the power supply into the rear panel. Use the DSan Power Supply Model WP (110-220 V AC) which can provide 12 volts at up to 1 amp — enough to drive the timer and two connected signal lights. (For additional signal lights, use a larger power supply or a power booster hub. -
Page 3: Signal Light Connections
(G) and one on the front panel (H) for signal light connections. Multiple signal lights can be interconnected via daisy chain or through a power booster hub (PSL-PB6 or PSL-PB18. See Accessories). ©DSan Corporation Limitimer® Rackmount User Guide... -
Page 4: Wireless Operation
< 20-feet apart during the initial setup. Yellow LEDs on the timer (A) and on the receiver (C) will illuminate during the first minute of setup. When both LEDs turn green, the timer and signal light are paired, and they may be separated up to 300 feet. ©DSan Corporation Limitimer® Rackmount User Guide... -
Page 5: Dip Switch Settings
7. ON 8. OFF Ring 7. OFF 8. OFF Chime Switch 9. Time Settings Permission Allow time changes while clock is running [ON] Switch 10. Enable Wireless Transceiver Set to [OFF] when not using Bluetooth communication ©DSan Corporation Limitimer® Rackmount User Guide... - Page 6 Switch 11+12. Bluetooth Wireless Channel Match with switches 11 + 12 of any signal lights with an integrated Bluetooth receiver or with the rotary switch on the Bluetooth receiver Model TR-2000BT. ©DSan Corporation Limitimer® Rackmount User Guide...
-
Page 7: Network Configuration
Networking ". (Windows® only.) A form appears that shows the network properties of the device. Make sure that Device “Limitimer” is selected [A]. (This application is used for other DSan products as well.) By default, PRO-2000RM is set to be a “server”... - Page 8 DATA remote timer configured as a server. If Limitimer Rackmount is configured as a server, make sure that DIP switch #1 is in the ON position so that it generates all the time data. ©DSan Corporation Limitimer® Rackmount User Guide...
-
Page 9: Serial Connection
The touch panel controller port should be configured at 9600 baud with 8 data bits, no parity, and one stop bit. The message on the RS-232 port incorporates a checksum. The Touch Panel API is found in a separate document "LimitimerTouchPanel_API.pdf" on the Limitimer Rackmount flash drive. ©DSan Corporation Limitimer® Rackmount User Guide... -
Page 10: Accessories
Audience Signal Light – ASL4-ND3 Signal light for flush-mount installation (4 ¾“ Digital time clock with 4” digits and green- x 3” x 1¼”). yellow-red phase lights. (22” x 6½“ x 3”) Available with integrated Bluetooth® receiver. ©DSan Corporation Limitimer® Rackmount User Guide... - Page 11 Limitimer time data over Ethernet. PSL-PB6/18 – Signal Light Extender TR-2000BT – Bluetooth Wireless Receiver 6- / 18 port power distributor to connect Bluetooth wireless receiver for Limitimer signal additional signal lights to one Limitimer lights. ©DSan Corporation Limitimer® Rackmount User Guide...
-
Page 12: Setups
Note: Make sure one timer has DIP switch 1 in the UP (ON) position. The other timers should have the switch in the OFF position. Multi-point control can be setup over hard-wire, Bluetooth wireless or Ethernet or any combination. This works with wireless operation as well. ©DSan Corporation Limitimer® Rackmount User Guide... - Page 13 Client-Server can work over network operation Integrate Bluetooth wireless with network operation ©DSan Corporation Limitimer® Rackmount User Guide...
-
Page 14: Specifications
Warranty Dsan warrants that the products it sells shall be free from material defects in materials and workmanship and will materially conform to any applicable specifications posted on the Dsan website. Such limited warranty will be effective for one (1) year from date of delivery.
