Summary of Contents for Essilor ESS260
- Page 1 TRIAL LENS SETS ESS260 / ESS167 / ESS026 User manual IMESS260 V6 – 11-2019...

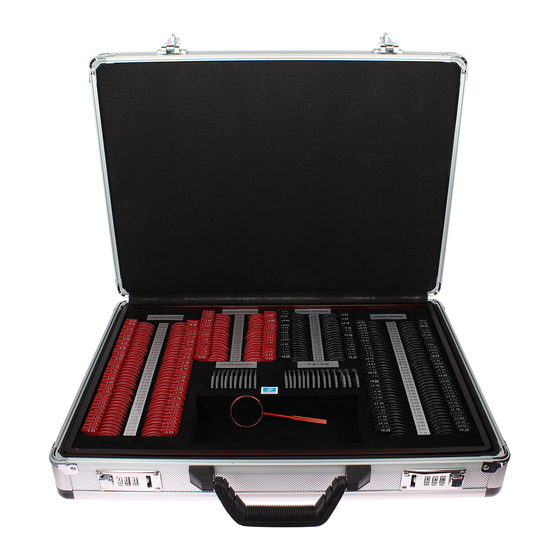

- Page 2 Under circumstances may Essilor be held responsible for any functional problems or loss of data resulting from such errors or omissions. The ESSILOR trial lens sets are easy-to-use vision testing instruments. This user manual is available on a web space. To access it, please scan the QR code below using a dedicated application.
- Page 3 • All products are Class I (without measuring function) and comply with the marking, regulation 2017/745/UE. ESS167 ESS260 / ESS026 462 × 322 × 95 mm 462 × 370 × 95 mm Dimensions (18 x 13 x 4 in) (18 x 15 x 4 in) 3.9 kg (8.6 lb)
- Page 4 INSTRUCTIONS FOR USE For a correct use of the trial lens ESSILOR, it is necessary to use a pair of trial frames. The lenses must be placed onto the trial frames, which have been already placed on the patient’s face.
- Page 5 COMPOSITION ESS260/ESS026 Concave Sph (-) Convex Sph (+) Cyl (-) Cyl (+) Prism 0.25 2 5.25 2 0.25 2 5.25 0.25 0.25 0.50 0.50 2 5.50 2 0.50 2 5.50 0.50 0.50 1.00 0.75 2 5.75 2 0.75 2 5.75 0.75...
- Page 6 COMPOSITION ESS167 Concave Sph (-) Convex Sph (+) Cyl (-) Cyl (+) Prism 0.25 2 3.50 2 0.25 2 3.50 2 0.25 2 0.25 0.50 2 3.75 2 0.50 2 3.75 2 0.50 2 0.50 1.00 0.75 2 4.00 2 0.75 2 4.00 2 0.75 2 0.75 2.00...
- Page 7 Essilor Instruments USA 8600 W. Catalpa Avenue, Suite 703 Chicago, IL 60656 Phone: 855.393.4647 Email: info@essilorinstrumentsusa.com www.essilorinstrumentsusa.com...
